High-Performance Position Detection Set for Gates - Adjustable Magnet with LED Activation and Dual Contact Options

Product Overview

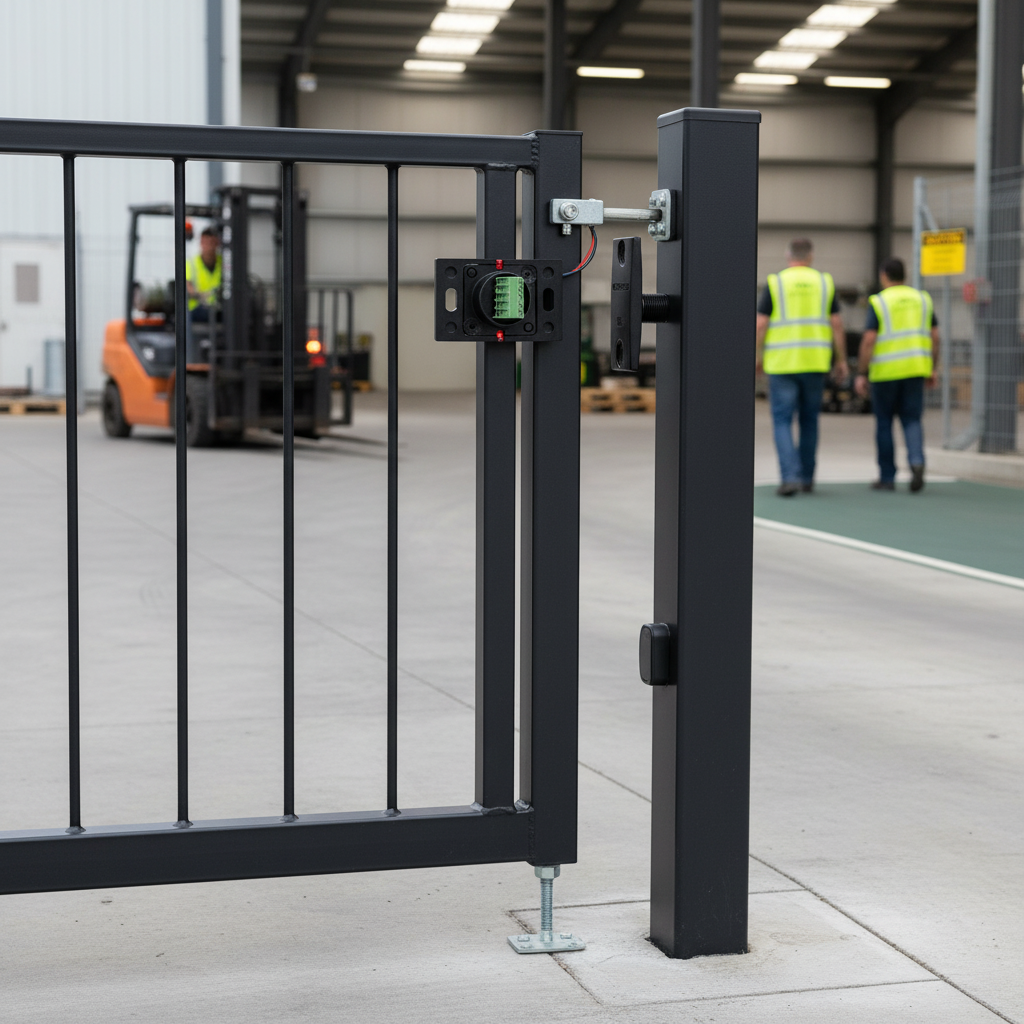

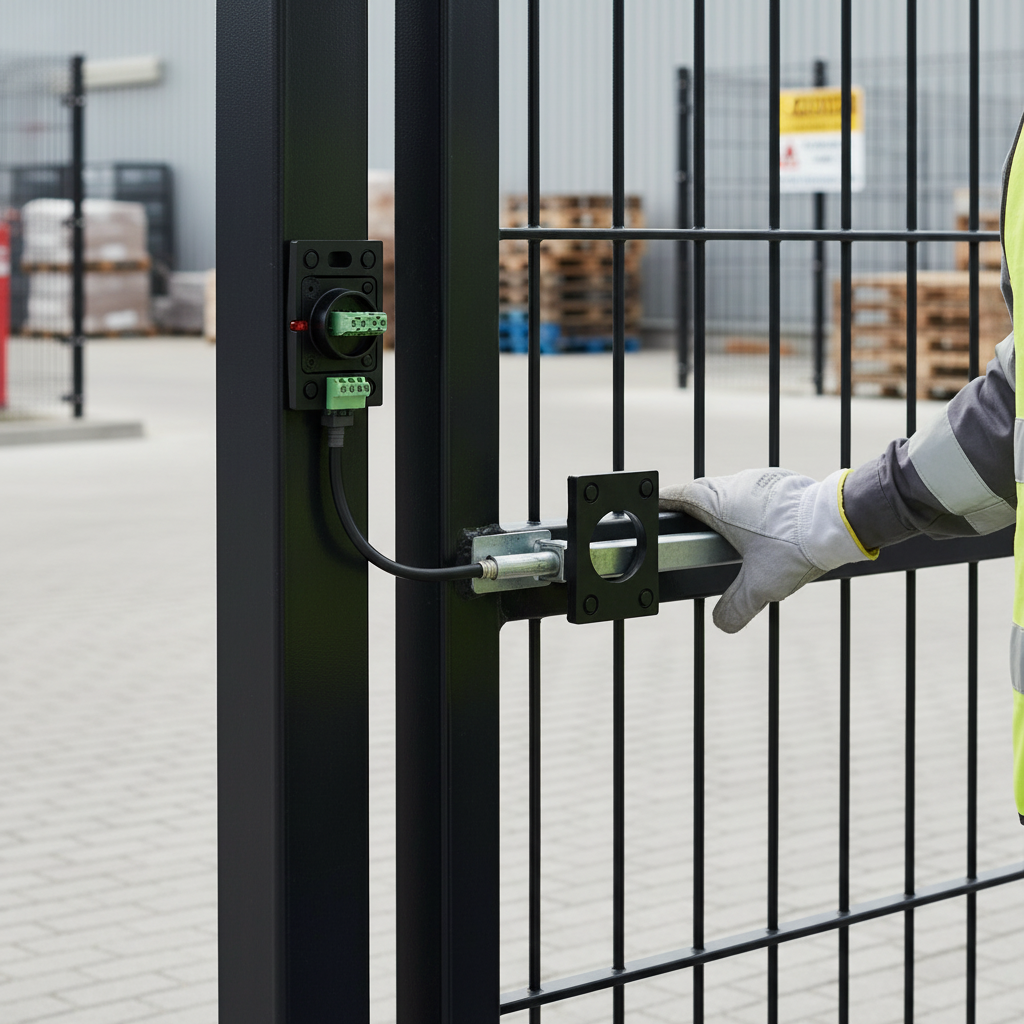

This multi-purpose position detection set consists of a magnet and a magnetic switch, designed for seamless integration with electrical systems such as access control and security systems. The adjustable magnet facilitates easy customization of the distance between the magnets using included filler plates.

Key Features

• Activate an LED light when the sensor detects the magnet (requires 12V DC at the gate).
• Operates with Normally Open (N/O) or Normally Closed (N/C) contact configurations.
• Adjustable distance between the gate and the post, ranging from a minimum of 10mm to a maximum of 50mm.
• Easy adjustment of distance between sensor and magnet using filling plates and a screwable magnet.

Dimensions & Specifications

Technical Specifications

• Power Supply: Requires 12V DC for LED activation.
• Contact Type: Normally Open (N/O) or Normally Closed (N/C).

FAQs

• Can this set be used with any electrical system?
  Yes, it can be integrated with various access control or security systems.
• How do I adjust the distance between the magnet and sensor?
  The distance can be easily adjusted using the included filler plates and screwable magnet.
• What is the range of the distance adjustment?
  The adjustable distance ranges from a minimum of 10mm to a maximum of 50mm.
