Description
A black plastic end cap for 60.3mm round tube. It pushes into the open end of the tube: a ribbed plug grips the inside wall and a round head covers the cut edge. It keeps water, dirt and insects out, takes away the sharp edge and gives the tube a neat finish in seconds, with no tools or glue. It suits tube with a wall thickness of 1.0 to 3.0mm. The price shown is for one cap, with a minimum order of 10.
Why choose this end cap
Push in, done. The ribbed plug locks against the inside of the tube, so it fits by hand and stays put.
Safer ends. The round head covers sharp cut edges that catch hands and clothes.
Keeps the tube clean. Rain, leaves and insects cannot get into the tube, so it does not rust or fill from the inside.
The right colour. Black suits painted and powder coated steel, and hides marks.
Where it is used
On handrails, guard rails, barriers, frames and furniture made from 60.3mm round tube.
Specifications
| What you get | One end cap, minimum order 10 |
|---|---|
| Material | Plastic |
| Colour | Black |
| Suits | 60.3mm round tube |
| Tube wall thickness | 1.0 to 3.0mm |
| Type | Push-in insert with ribbed plug |
| Head | Round, 60.3mm |
| Weight | 0.01 kg each |
| Fixing | Push in by hand or tap with a soft mallet |
How many do you need?
One per open tube end. Count both ends of every rail, plus the tops of posts and the feet of frames, and remember the minimum order of 10.
Is this the right cap?
Measure the outside of the tube, then check the wall thickness: the cap fits 60.3mm round tube with a 1.0 to 3.0mm wall. A thinner wall leaves it loose; a thicker wall stops it going in.
| Your tube | Choose |
|---|---|
| 42.4mm round tube, grey | Grey cap for 42.4mm |
| 48.3mm round tube, black | Black cap for 48.3mm |
| 48.3mm round tube, grey | Grey cap for 48.3mm |
| 60.3mm round tube, black | This cap |
| 42.4mm round tube, yellow | Yellow cap for 42.4mm |
| 48.3mm round tube, yellow | Yellow cap for 48.3mm |
| 60 x 60mm square box section, black | Black cap for 60 x 60mm |
| 70 x 70mm square box section, black | Black cap for 70 x 70mm |
| 80 x 80mm square box section, black | Black cap for 80 x 80mm |
| 100 x 100mm square box section, black | Black cap for 100 x 100mm |
| 60 x 40mm rectangular box section, black | Black cap for 60 x 40mm |
| 80 x 40mm rectangular box section, black | Black cap for 80 x 40mm |
| 100 x 50mm rectangular box section, black | Black cap for 100 x 50mm |
| A welded steel cap instead | Steel tube top for 60.3mm |
Fitting and care

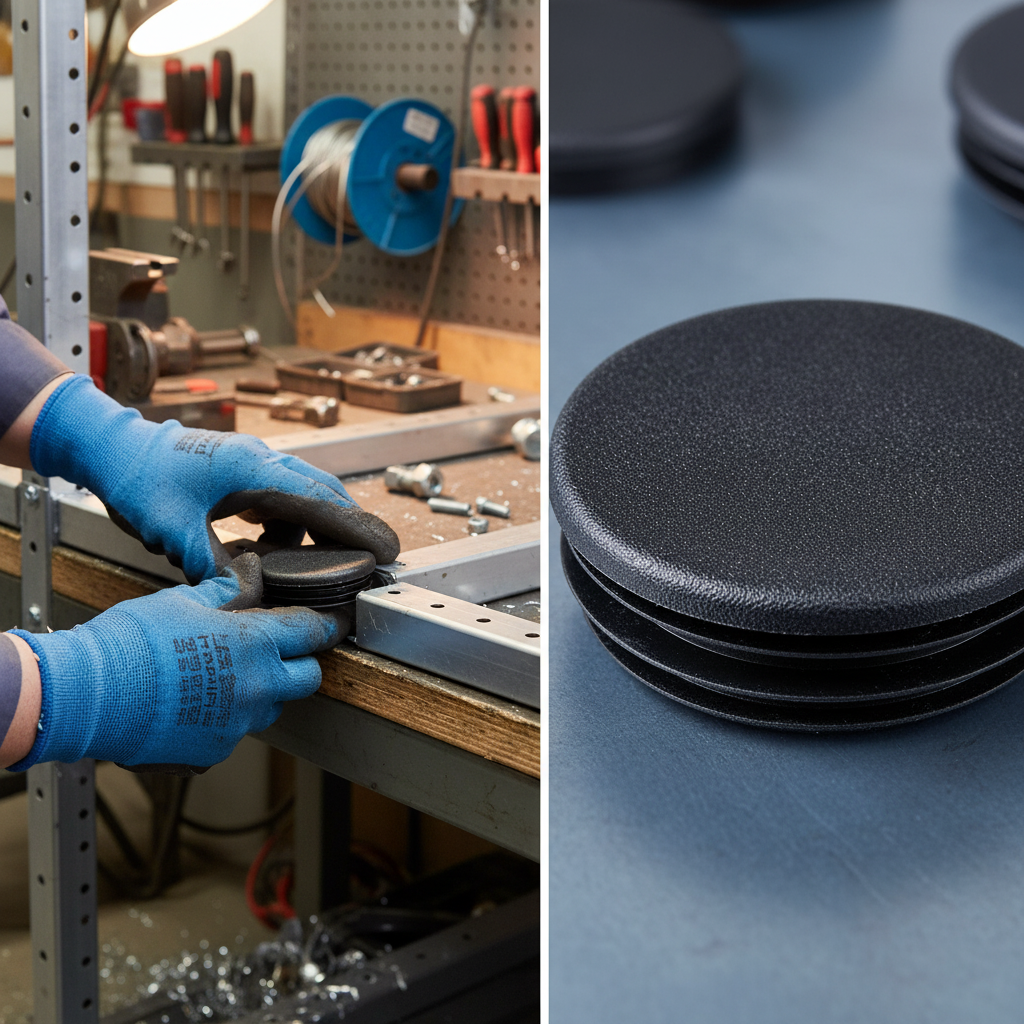

Cut the tube square and take off any burr inside the end so the ribs can grip. Line the cap up and push it in until the head sits flat on the tube. For a tight fit, tap it home with a soft rubber mallet. Fit after painting, not before.
Frequently asked questions
Is the price for one cap?
Yes, it is for one cap, with a minimum order of 10.
Do I need glue?
No. The ribbed plug grips the inside of the tube. Add a dab of adhesive only if the cap must not be removed.
Will it fit my tube?
It fits 60.3mm round tube with a wall of 1.0 to 3.0mm. Measure the outside and the wall thickness before you order.
Can I paint it?
It is supplied coloured and does not need painting. Fit it after the tube is painted.
Ordering and delivery
Order 10 or more online, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
