Description

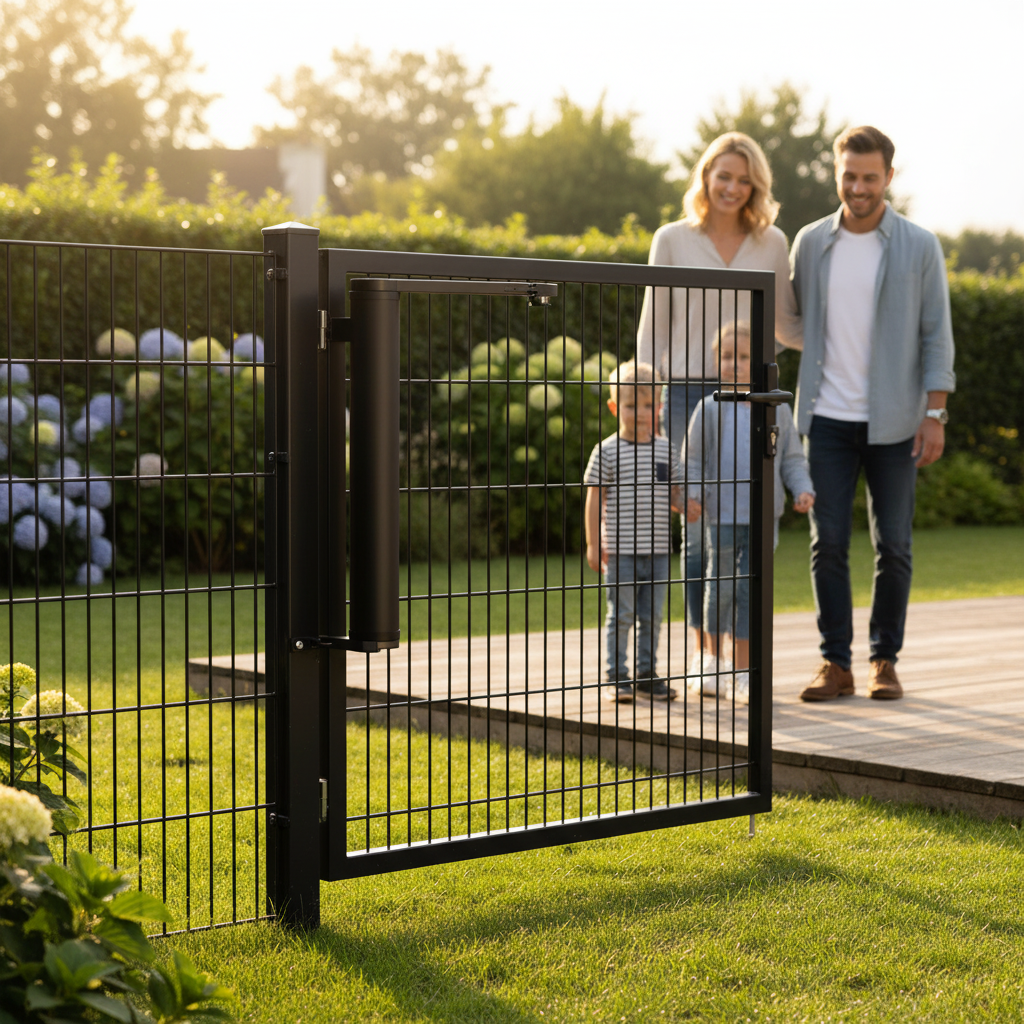

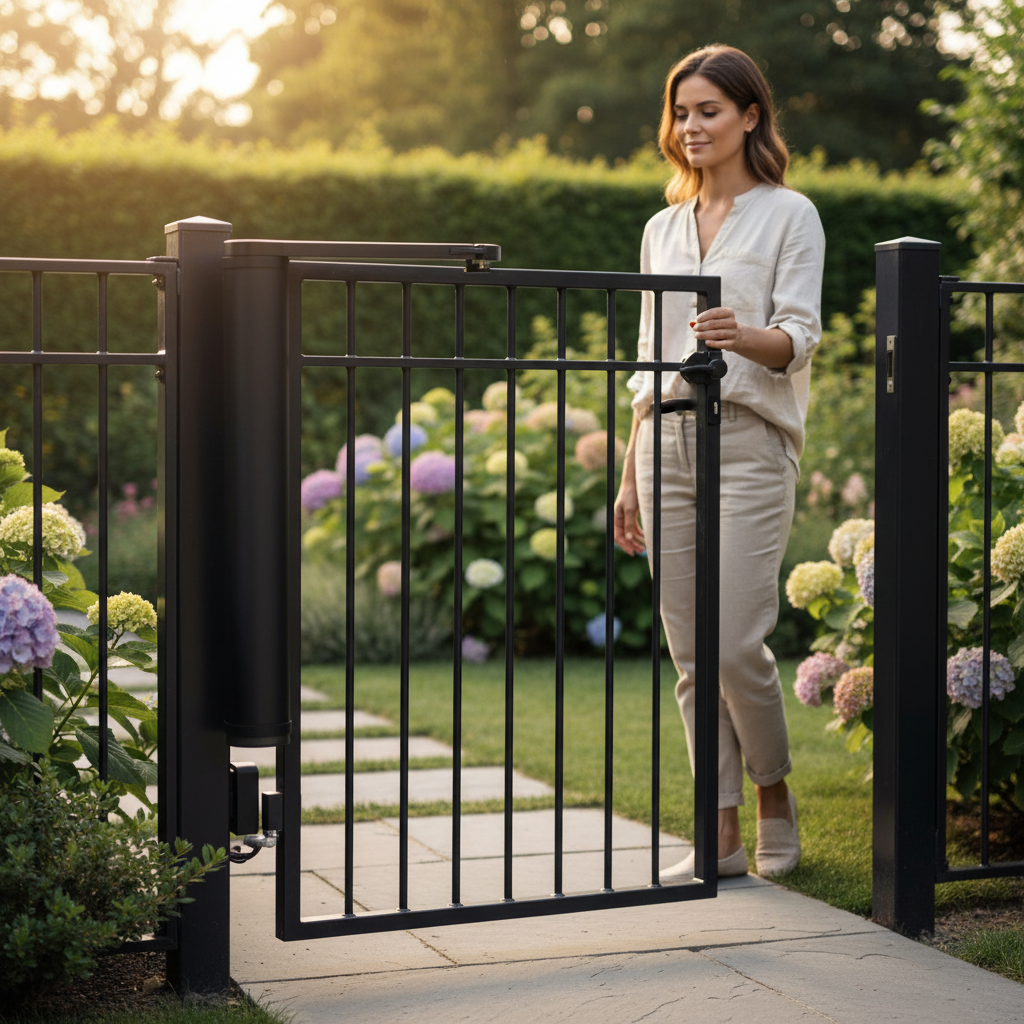

Automatic opening and closing for a pedestrian gate. This is a motorised closer for pedestrian swing gates up to 1.4m wide and 100kg. It clamps to an 80mm square post (60mm with the adaptor plate) with Quick-Fix brackets, has its control electronics built in, and is set up from the phone app over a secure WiFi link: enter the gate width, weight and opening angle and it calibrates itself. Integrated obstacle detection reopens the gate if anything is in its path. This version is black, with a folding articulated arm fixed to a bracket on the gate. The price shown is for one closer.
Why choose it
Quick-Fix mounting. Clamps to an 80mm square post, or a 60mm post with the adaptor plate, and fits left or right hand gates.
Safe for people. Integrated obstacle detection reverses the gate, and a warning light is built in.
All weathers. Rated IP54 and for -30 to +70°C; tested to 500,000 cycles.
Tamper-resistant. The settings can only be changed with the housing unlocked by its key.
Where it is used
Pedestrian gates at schools, apartment blocks, offices, sports grounds and parks, including gates that must close behind every user.
Specifications
| What you get | Closer with articulated arm, keys and fitting parts |
|---|---|
| Gate type | Pedestrian swing gate, left or right hand |
| Max gate width | 1400mm |
| Max gate weight | 100kg |
| Posts | 80mm square; 60mm with the adaptor plate |
| Motor torque | 150Nm |
| Mains input | 110 to 240V AC |
| Motor | 24V DC brushless |
| Finish | Black |
| Protection | IP54 |
| Working temperature | -30 to +70°C |
| Set-up | Phone app over WiFi |
| Inputs and outputs | 3 configurable |
| Tested | 500,000 cycles (maker's figure) |
Add a lock
The motor is reversible, so the gate can be pushed open by hand. To keep the gate secure, combine it with a lock or an electric keep and connect it to one of the closer's configurable outputs; a keypad or access control can be connected the same way.
Articulated or sliding arm?
Both use the same closer. The articulated version has a folding articulated arm fixed to a bracket on the gate; the sliding version has a straight arm that slides in a guide rail on the gate. This is the articulated arm version; the Sliding arm in black has the sliding arm.
Installation and safety
Powered gates should be installed by a competent installer, with the mains supply wired by a qualified electrician, and the finished gate risk assessed. The built-in obstacle detection is part of that safety system: test it after fitting and regularly afterwards.
Related gate automation
- Motorised gate closer, articulated arm, silver
- Motorised gate closer, sliding arm, silver
- Motorised gate closer, sliding arm, black
- Adaptor plate for 60mm posts
- Fixing rail
- Weatherproof keypad
- Surface-mounted electric keep
See the whole range in Gate Automation.
Fitting
Clamp the closer to the hinge-side post with the Quick-Fix brackets (use the adaptor plate on a 60mm post) and fix the arm to the gate. Connect the power, then set it up from the phone app: enter the gate width, weight and opening angle and let it calibrate. The mains connection must be made by a qualified electrician.
Care
The maker describes it as maintenance-free. Keep the arm clean, check the fixings every 6 months and test the obstacle detection regularly.
Frequently asked questions
What is included?
One closer with its articulated arm, keys and fitting parts. Locks and keypads are sold separately.
Does it lock the gate?
No. The motor is reversible, so add a lock or electric keep to keep the gate secure.
Can I open the gate in a power cut?
Yes. The gate can be opened by hand without power.
Will it fit my post?
It clamps to an 80mm square post; for a 60mm post add the adaptor plate.
How big a gate will it move?
It is rated for pedestrian gates up to 1400mm wide and 100kg.
Ordering and delivery
Order online with Express UK Delivery. Not sure which kit suits your gate? Send us the leaf width, weight, post size and a photo: call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will recommend the right kit and accessories.
