Description

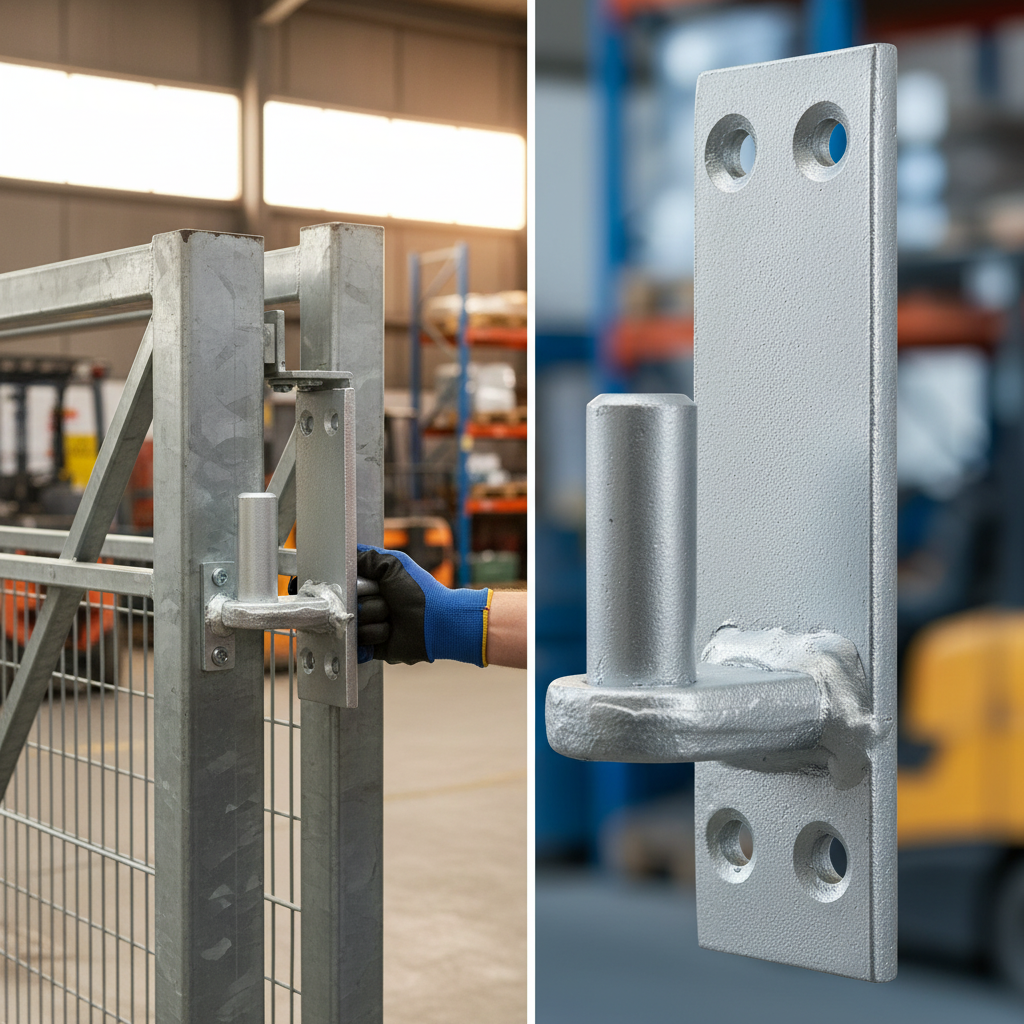

A zinc plated 135 x 40mm back plate with four 8mm fixing holes and an upright 16mm gate pin. The price shown is for one hinge plate, with a minimum order of 10.
Why choose this hinge plate
Ready to fix. The back plate is already drilled, so it fixes straight to a post or wall.
Upright gate pin. The pin stands on a short arm, ready for a matching gate eye.
Zinc plated. A zinc plated finish helps protect the steel.
Where it is used
Metal and timber gates hung on gate eyes, fixed to posts and masonry.
How it works

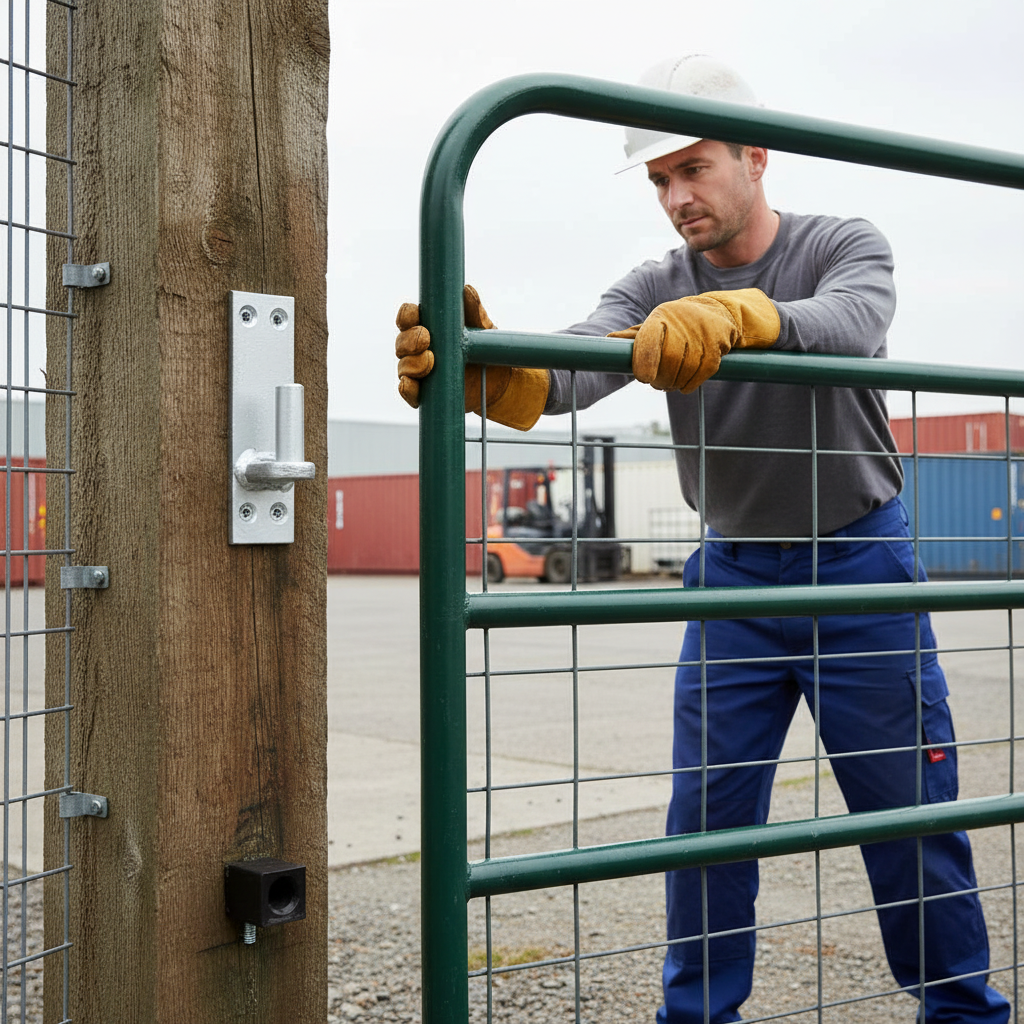

The plate fixes flat to a post, wall or pier, and a short arm holds the upright pin clear of it. A gate eye made for the same pin size sits over the pin, and the gate turns on it.
Fitting the top pin upside down, pointing downwards, is a common way to stop a gate being lifted off its hinges.
Choosing a plate
A square plate spreads its fixings over a wider area, and a long narrow plate suits a slimmer post. Match the pin diameter to the gate eye you are using, and allow for the weight and width of the gate. No load rating is published for these plates, so ask us if you are hanging a large or heavy gate.
Fitting tips
Set both plates on the same vertical line, because pins that are out of line will bind and strain the fixings. Check the post is plumb first. Drill for the fixings, hold the plate in place, and tighten evenly. Hang the gate and check the swing before fully tightening. This is general guidance, so follow good practice for your own gate and site.
Looking after it
Check the fixings from time to time, as gates put a constant load on them. A little grease on the pin keeps the gate moving freely and quietly.
Buying in quantity
This item is sold with a minimum order of 10, which suits fabricators, installers and anyone working through a batch of the same job. Order as many as you need above that. For a larger quantity, call us on 01744 520 110 and we will confirm availability and delivery before you order.
Specifications
| What you get | One hinge plate, minimum order 10 |
|---|---|
| Back plate | 135 x 40 x 5mm |
| Pin | 16mm diameter, 42mm high |
| Fixing holes | 4 x 8mm |
| Hole centres | 106 x 20mm |
| Finish | Zinc plated |
| Weight | About 0.38 kg each |
Other sizes
| Size | Price | Choose |
|---|---|---|
| Gate Hinge Plate, 12mm Pin, 75 x 75mm | £5.90 | View |
| Gate Hinge Plate, 16mm Pin, 101 x 101mm | £8.90 | View |
| Gate Hinge Plate, 16mm Pin, 135 x 40mm | £8.90 | This one |
See the full range of gate pins.
Frequently asked questions
Is the price for one?
Yes, it is for one hinge plate, with a minimum order of 10.
Are fixings included?
No. Choose screws or bolts to suit the holes and the surface you are fixing to.
What fits on the pin?
A gate eye made for the same pin diameter.
Can the gate be lifted off?
Yes, a gate eye can be lifted off the pin once it is raised clear, unless the top hinge is fitted the other way up to stop it.
Ordering and delivery
Order 10 or more online, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
