Description

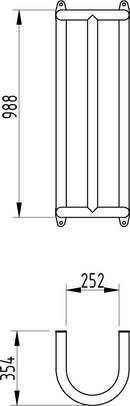

A downpipe, sprinkler riser or gas main running down a warehouse wall is one clipped pallet away from a leak, a flood or a shutdown. This wall-mounted column protector puts a steel cage around the vulnerable section. It is made from 48mm galvanised steel tube: two U-shaped hoops bolted to the wall at the top and bottom, joined by three upright tubes. It is 350mm wide and projects 354mm from the wall, with a 252mm internal width, so it fits around pipes up to 250mm in diameter. It comes in two heights, 988mm and 1488mm, and in three finishes, including a high-visibility yellow with black bands. The floor stays clear, because it is bolted to the wall rather than to the ground.
Why it works
A cage, not a single bar
The front and both sides of the pipe are covered. Three upright tubes run between the top and bottom hoops, so a pallet corner, cage trolley or forklift tine meets steel before it reaches the pipe, whichever direction it comes from along the wall.
Fixed to the wall, clear of the floor
The guard is bolted to the wall through fixing plates at the ends of each hoop. It needs no floor fixings, so it can go above a drainage channel, a floor joint or a heated floor, and it leaves the floor free for cleaning.
Visible where it matters
Plain galvanised suits plant rooms and back-of-house areas. Galvanised and coated yellow with black bands makes the guard stand out to drivers in busy aisles. Galvanised and colour coated in any RAL colour lets you match a site's colour scheme.
- 48mm diameter galvanised steel tube
- Fits around pipes up to 250mm diameter (252mm internal width)
- 988mm or 1488mm high, 350mm external width
- Wall mounted, with no floor fixings
Where it's used
Rainwater downpipes and soil stacks on yard and loading-bay walls. Sprinkler risers, gas and water mains inside warehouses. Cable conduits and small columns beside forklift routes, in car park stair cores and at service entrances. Use the 1488mm height where taller vehicles or stacked loads could strike higher up the pipe.
Specifications
| 1000 size | 1500 size | |
|---|---|---|
| Height | 988mm | 1488mm |
| External width | 350mm | 350mm |
| Internal width | 252mm | 252mm |
| Projection from wall | 354mm | 354mm |
| Tube diameter | 48mm | 48mm |
| Weight | 15kg | 20kg |
| Material | Mild steel tube, galvanised |
| Finishes | Galvanised; galvanised & colour coated (any RAL); galvanised & coated yellow with black bands |
| Fixing | Bolted to the wall through plates at the ends of the top and bottom hoops |
| Suits pipes | Up to 250mm diameter |
| Use | Internal and external |
Choosing the right option
Height: the 988mm guard covers the zone most often hit by pallet trucks, trolleys and car bumpers. The 1488mm guard extends protection to the height of forklift forks carrying a load, and to van and lorry bodywork.
Finish: choose yellow with black bands in traffic areas where the guard must be seen. Choose a RAL colour to match corporate or zone colours, or plain galvanised where low maintenance matters more than visibility.
Fit: measure the pipe or column. It must be no more than 250mm across, with enough clear wall each side for the fixing plates.
Installation, use & care
Hold the guard centrally around the pipe and mark the fixing plate holes on the wall. Drill and fix with anchors suited to the wall: masonry anchors for blockwork and brick, or heavy-duty anchors for concrete. Check that the guard stands upright and clear of the pipe all round. Inspect it after any impact, and replace a guard that has been bent onto the pipe.
Frequently asked questions
What size pipe will it fit?
Pipes and small columns up to 250mm in diameter. The internal width is 252mm.
Does it fix to the floor?
No. It is bolted to the wall only, through the plates at the ends of its top and bottom hoops.
Are wall anchors included?
Fixings are not listed by the manufacturer as supplied. Please allow for anchors suited to your wall.
Can I order a custom colour?
Yes. Choose Galvanised & Colour Coated and add the RAL code to your order notes, or email it to us straight after ordering.
Ordering & delivery
Choose the height and finish above. For several pipes, a site order or a delivery date, call us on 01744 520110 or email sales@industrialsuppliesco.co.uk and we'll confirm availability.
