Description

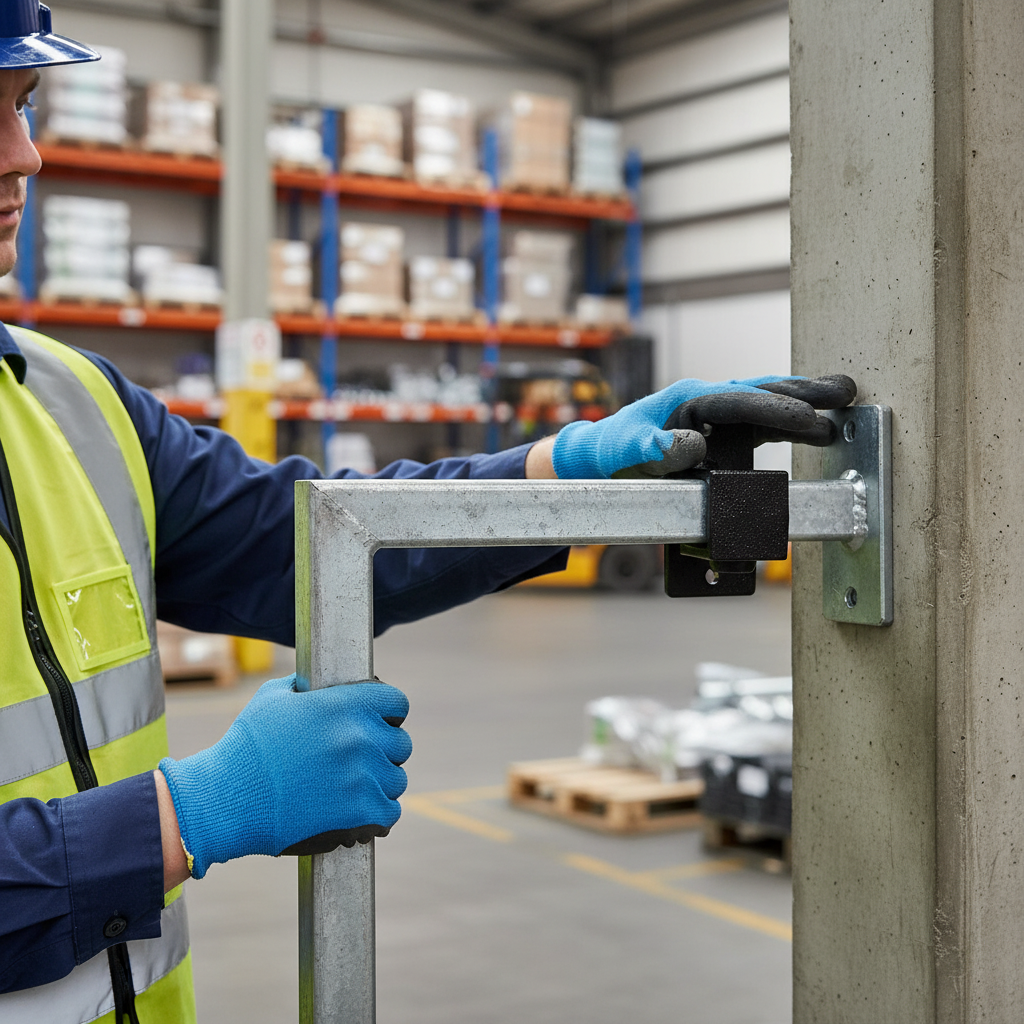

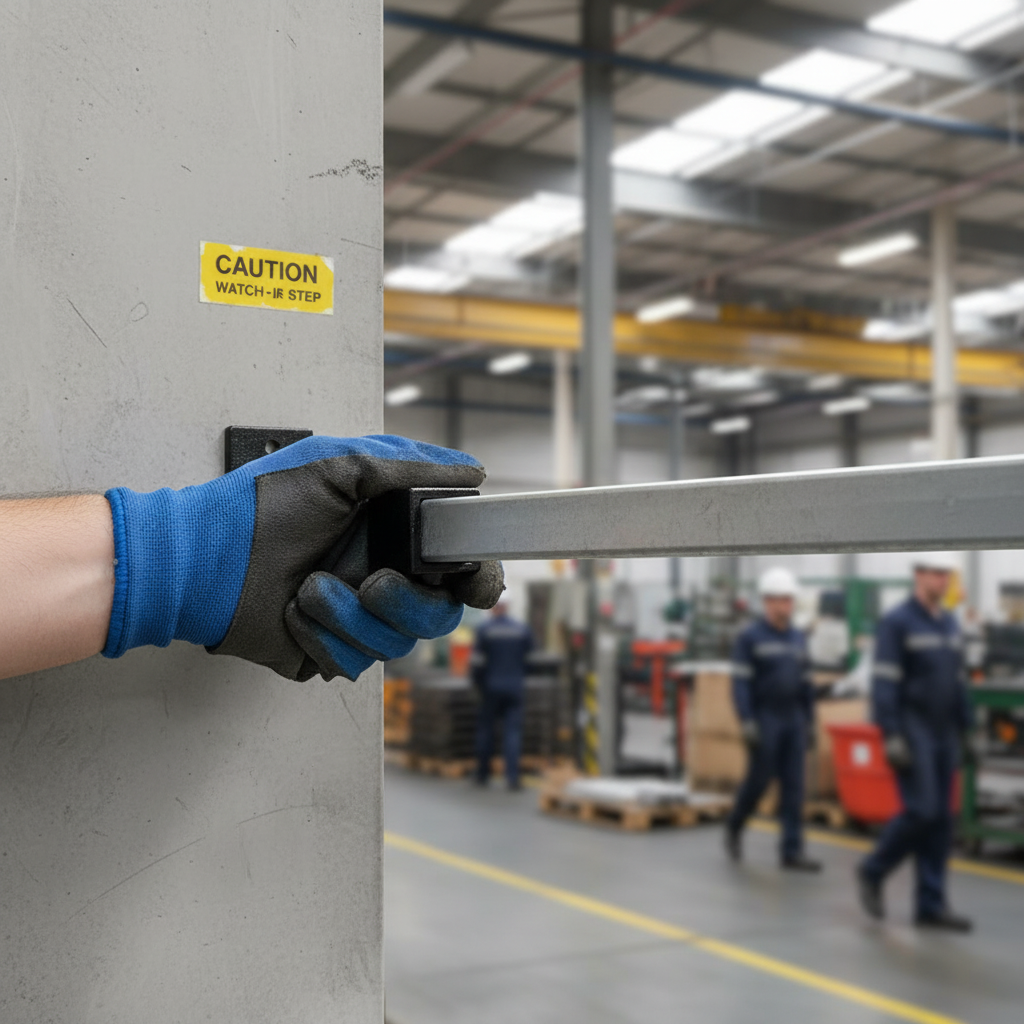

Fix a 25mm square box section rail to a wall or upright. This black malleable iron key clamp has a flat wall plate with two bolt holes and a square socket that a 25 x 25mm box section rail passes straight through, locked by a hex grub screw. Use it to fix a handrail to a wall, tie a key clamp structure back to a wall, or fix kick plates to uprights. The black electrophoretic finish is for indoor use only. The price shown is for one bracket, with a minimum order of 5.
Why choose it
Rail runs straight through. The socket is open both ends, so one continuous rail passes every bracket.
No welding. Fit with a hex key and two wall bolts.
Square section look. Made for 25mm square box section, for a crisp modern rail.
Smart black. A satin black finish for offices, shops and showrooms.
Where it is used
Indoor wall handrails, display rails and guard rails in offices, shops, showrooms and public buildings.
Specifications
| What you get | One bracket, minimum order 5 |
|---|---|
| Suits | 25 x 25mm square box section |
| Type | Side through, the rail passes the socket |
| Fixing | Wall plate with 2 bolt holes |
| Locking | Hex grub screw |
| Material | Malleable iron |
| Finish | Black electrophoretic, indoor use only |
| Weight | 0.37kg |
Related parts
See the whole range in Handrails & Brackets.
Fitting
Mark the bracket positions along the wall at no more than about 1.5m apart. Drill and fix each wall plate with two bolts or anchors to suit the wall. Slide the box section rail through the sockets, set it level, and tighten each grub screw with a hex key.
Care
Wipe clean with a damp cloth. Check the grub screws once a year.
Frequently asked questions
Is the price for one bracket?
Yes, one bracket. The minimum order is 5.
Are wall fixings included?
No. Choose bolts or anchors to suit the wall.
Will it fit round tube?
No. It is made for 25mm square box section. Round tube needs a round key clamp bracket.
Can I use it outside?
No. The black electrophoretic finish is for internal use only. Use the galvanised version outdoors.
Ordering and delivery
Order online with Express UK Delivery. For a full guard rail or larger quantities, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
