Description
A heavy cast collar for 60 x 60mm box section. This collar is 100mm tall and 105 x 105mm at its widest: a flat square band in the middle, deep shaped waists above and below, a 94mm lip at the top and an 86mm band at the bottom. A 63mm square hole slides over 60 x 60mm square box section, so it wraps round heavy gate posts, carport and pergola legs as a strong band of detail. Each one weighs about 2 kg. The price shown is for one collar, with a minimum order of 5.
Why choose this collar
In scale with 60mm posts. At 105mm across it reads clearly on a heavy gate post or carport leg, where a smaller collar would look lost.
Sized for 60 x 60mm. The 63mm square hole slides over 60 x 60mm box section with a little clearance and cannot turn once it is on.
Solid casting. At about 2.08 kg it has real weight and sits square on the post.
Ready to paint. It comes in a raw cast finish and takes the same primer and paint as the rest of the ironwork.
Where it is used

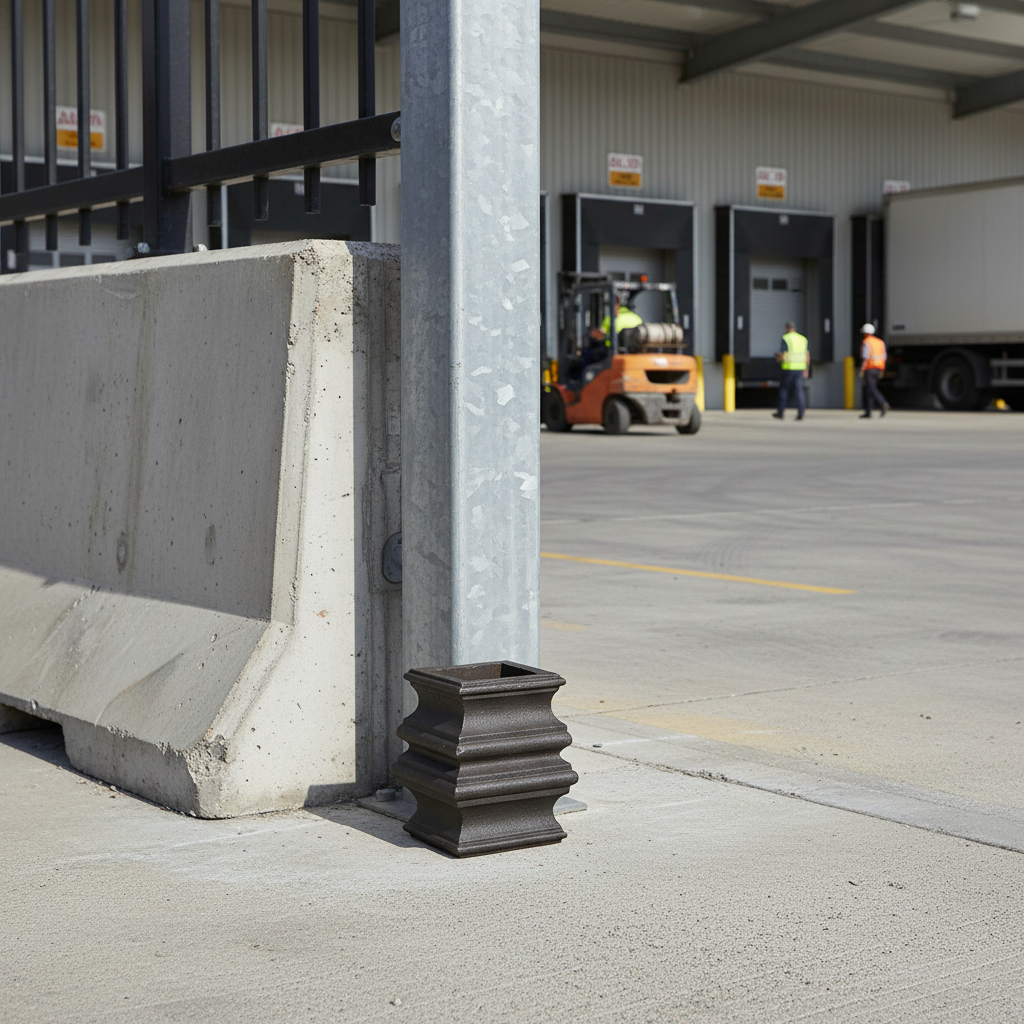

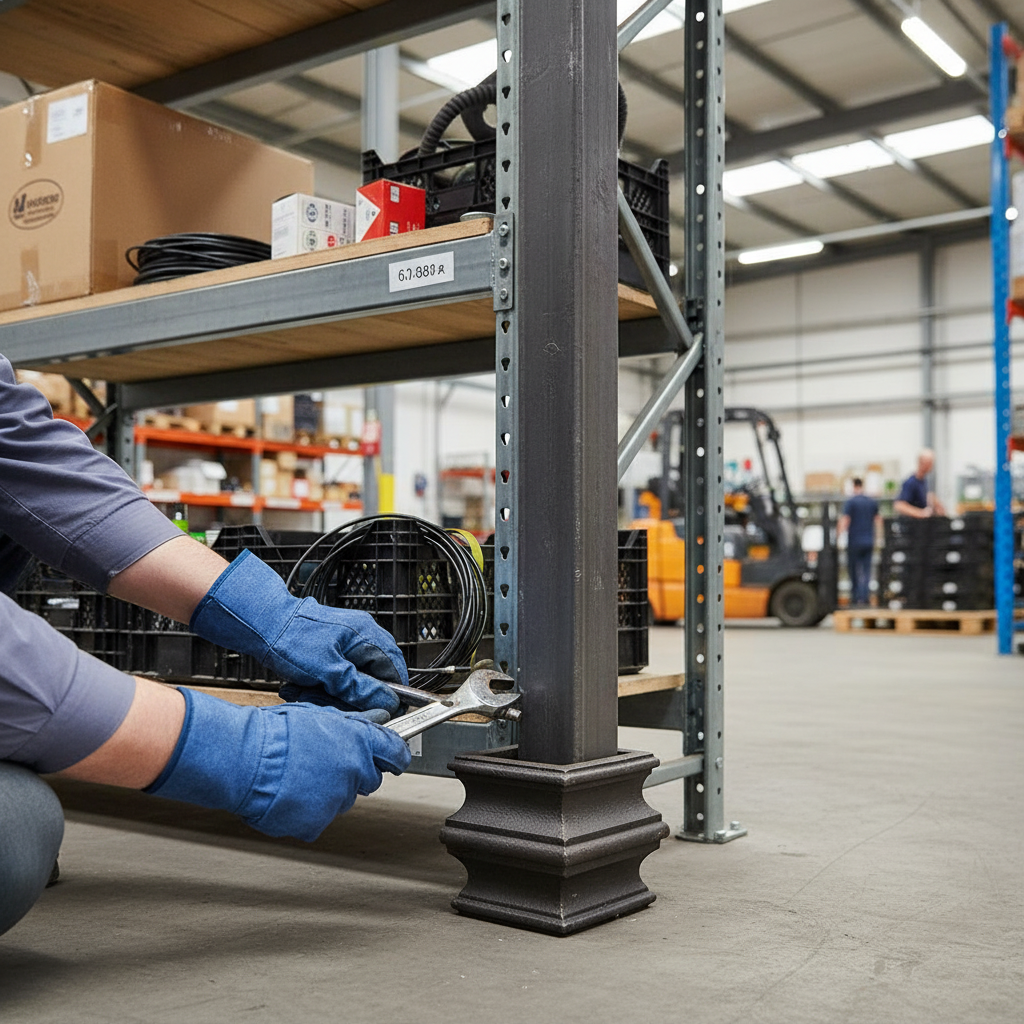

Driveway and estate gate posts, carport and pergola legs, canopy supports and heavy fence posts made in 60 x 60mm square box section.
Specifications
| What you get | One collar, minimum order 5 |
|---|---|
| Material | Cast metal |
| Finish | Raw, unpainted |
| Height | 100mm |
| Widest point | 105 x 105mm square |
| Top lip and lower band | 94mm and 86mm |
| Hole | 63mm square |
| Suits | 60 x 60mm square box section |
| Weight | 2.08 kg each |
| Fixing | Slide on, then tack weld, bond or pin |
How many do you need?
Allow one or two per post. A four-leg carport with one collar per leg takes 4; a pair of gate posts dressed top and bottom takes 4.
Is this the right collar?
| You want | Choose |
|---|---|
| A collar for 60 x 60mm box section | This collar |
| A collar for 50 x 50mm box section | Box section collar for 50 x 50mm |
| A collar for 40 x 40mm box section | Box section collar for 40 x 40mm |
| A collar for 80 x 80mm box section | Box section collar for 80 x 80mm |
| A flat cover plate for 60 x 60mm box section | Collar cover plate for 60 x 60mm |
Fitting and care
Slide the collar down over the top of the post before the post cap, finial or beam goes on. Set it at the height you want, then hold it with a tack weld at the top and bottom edge or a self-tapping screw through the band into the post. At this weight, use a weld or screw rather than adhesive alone.
Wire brush and degrease, then prime with a metal primer and paint to match the rest of the ironwork. We do not recommend hot-dip galvanising for this collar, as cast parts can blister or crack in the zinc bath. Use a zinc-rich primer instead outdoors.
Frequently asked questions
Is the price for one collar?
Yes, it is for one collar, with a minimum order of 5. For a larger job, call us for a quantity price.
Can I fit it to a post that is already in the ground?
Yes, as long as the top of the post is free. Slide it down from the top before fitting the cap or beam.
Will it fit 60mm round tube?
It will slide on but will sit loose. It is made for square box section.
Can it be galvanised?
We do not recommend hot-dip galvanising for this part. Prime and paint it, or use a zinc-rich primer before your top coat.
Ordering and delivery
Order 5 or more online, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
