Description

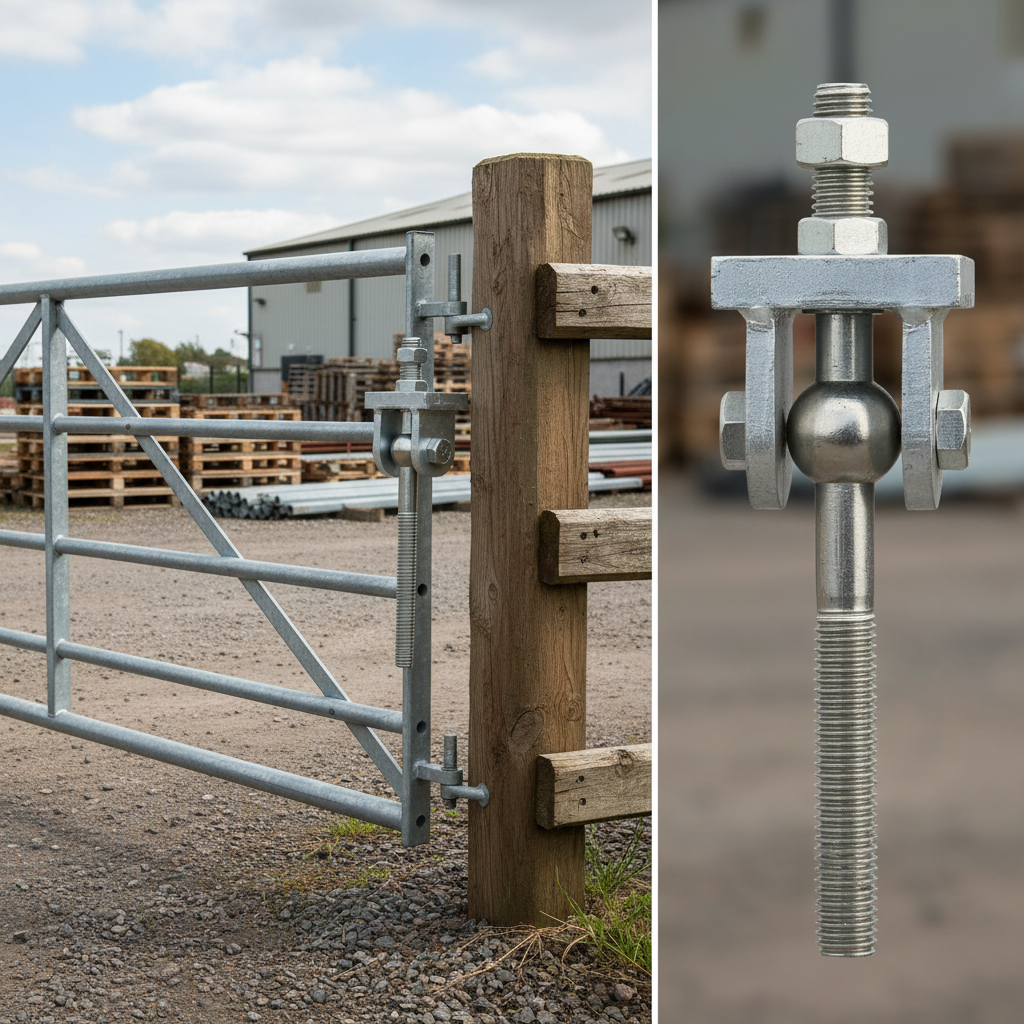

A galvanised hanging pin for hanging an estate fencing gate from a standard estate fence post, with no welding. The hot-dip galvanised channel bracket clamps onto the fence upright with two bolts. Its two cheek plates hold the eye of a long threaded pin on a bolt, and the pin passes through the gate's hanging stile and locks with a nut each side. Turn the nuts to set the gap and bring the gate level, then lock them. The price is for one pin; each gate needs two.
Why choose this hanging pin
No welding on site. The bracket clamps to the fence upright and the pin bolts through the gate, so a gate can be hung in the field with spanners alone.
Adjustable. Run the nuts along the 100mm of thread to set the gap to the post and level the gate, and re-set it if the post settles.
Fully galvanised. Hot-dip galvanised to match galvanised estate fencing and stand up to years outdoors.
Matches estate fencing. The 42mm channel suits the flat-bar uprights used in estate and parkland railings.
Where it is used
Estate and parkland fencing, field and paddock gates in estate railings, country house drives, park and churchyard railings, and replacing worn gate hangers on existing estate fencing.
Specifications
| Sold as | One hanging pin; two hang one gate |
|---|---|
| Overall length | 140mm |
| Pin | 17mm threaded pin, 100mm from the end to the eye, two hex nuts |
| Bracket | 60 x 70mm, 16mm deep, 42mm channel, two clamp bolts |
| Cheek plates | 50mm high, pivot bolt through the eye |
| Material and finish | Steel, hot-dip galvanised |
| Weight | About 1.04 kg |
Which hinge do you need?
| You want | Choose |
|---|---|
| To hang a gate from estate fencing uprights | This hanging pin |
| A heavy-duty hinge for a timber field gate | Field gate hinge, 220 x 100mm |
| A long-thread hinge that bolts through a thick post | M20 x 135mm thread adjustable hinge |
| A weld-on adjustable hinge for steel gates | Adjustable weld-on gate hinge |
Fitting
Use two pins per gate, one near the top rail and one near the bottom rail. Clamp the brackets onto the fence upright at the right heights with the cheek plates facing the gate. Drill the gate's hanging stile to take the pins, pass each pin through with a nut either side, and stand the gate on packers. Fit the eyes between the cheek plates with the pivot bolts, then run the nuts in or out until the gate hangs level with an even gap and lock them hard against the stile.
Care
Grease the pivot bolts once a year and check the clamp bolts and lock nuts each spring.
Frequently asked questions
Is the price for one pin?
Yes, one hanging pin with its bracket and nuts. Each gate needs two.
Do I need to weld?
No. The bracket clamps to the post and the pin bolts through the gate.
Will it fit my estate fencing?
The bracket channel is 42mm wide, which suits standard flat-bar estate fence uprights. Check your upright before ordering, or call us.
Is it left or right handed?
Neither. It works on either side of the gate.
Ordering and delivery
Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For larger quantities call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm stock and delivery before you order.
