Description

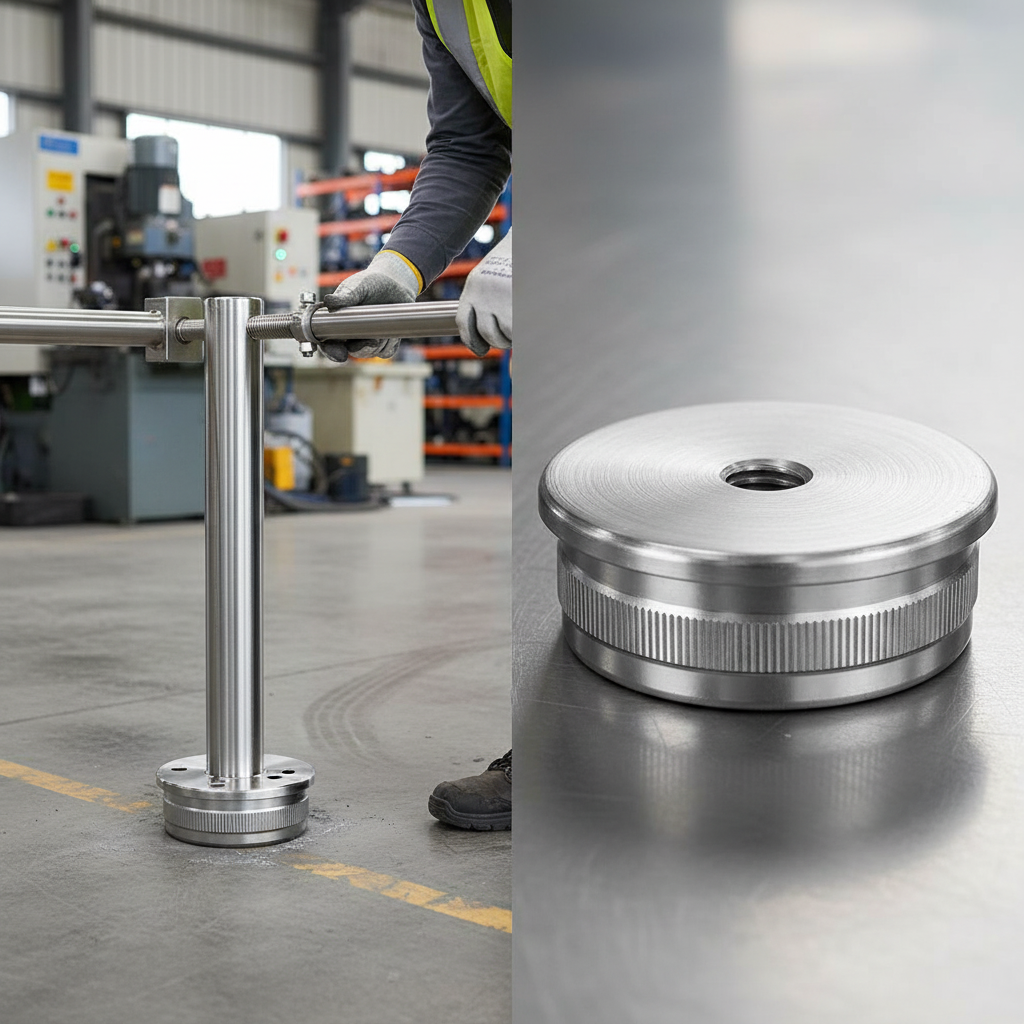

A 304 stainless flat post cap with an M8 threaded centre, for the top of a 48.3 x 2.0mm post. The knurled plug hammers into the post and the flat 48.3mm head sits flush with the tube, closing the post top neatly. The threaded hole in the centre takes an M8 handrail support pin or bracket, so the capped post becomes a handrail support with no welding. Satin 304 is the standard grade for indoor and sheltered rails; outdoors, by the sea or around pools, choose the 316 version. The price shown is for one cap, minimum order 10.
What you get
| Sold as | One flat post cap, minimum order 10 |
|---|---|
| Cap | Flat head, knurled hammer-fit plug and M8 threaded centre, 304 stainless, satin |
| Not included | The handrail pin or bracket, the post and the rail |
Why choose this post cap
Caps the post and carries the rail. One part closes the open post top and gives a strong threaded fixing for the handrail support above it, so a run of posts and rail goes together on site without welding.
Hammer fit. The knurled plug is sized for the 44.3mm bore of 48.3 x 2.0mm tube and grips as it is tapped home. Bond it in for a permanent fix.
Flush, flat finish. The 48.3mm head is the same size as the post, so the top looks clean with just a fine joint line.
304 for indoors. 304 stainless is the standard grade for indoor rails in offices, shops, schools and homes, at a lower price than 316. For outdoor, coastal or pool-side posts use the 316 flat M8 post cap for 48.3 x 2.0mm tube, which resists salt and chlorine much better.
Specifications
| Material | 304 stainless steel, satin finish |
|---|---|
| Fits | 48.3mm tube with a 2.0mm wall (44.3mm bore) |
| Head | Flat, 48.3mm across, 3.4mm thick |
| Overall height | 16.9mm |
| Plug | Knurled, 44.5mm across, 13.5mm long |
| Inside | Hollow, 38.6mm across, with a threaded centre boss |
| Thread | M8, through the centre |
| Weight | About 0.09 kg |
Is this the right cap?
| Your post | Choose |
|---|---|
| 48.3 x 2.0mm, flat top with M8, indoors | This 304 cap |
| 48.3 x 2.0mm, flat top with M8, outdoors | 316 flat M8 cap 48.3 x 2.0mm |
| 48.3 x 2.6mm, flat top with M8, indoors | 304 flat M8 cap 48.3 x 2.6mm |
| 42.4 x 2.0mm, flat top with M8, indoors | 304 flat M8 cap 42.4mm |
| A pin to screw into it | Handrail support pin |
| 48.3 x 2.0mm, plain flat top | 304 flat end cap 48.3 x 2.0mm |
Fitting
Cut the post square to height and deburr the inside. Line up the cap and tap it home with a soft mallet until the head meets the tube all round. For a permanent fix, put a little retaining adhesive or structural adhesive made for stainless steel on the plug first. Screw the M8 handrail pin or bracket into the centre thread, then fit the rail.
Care
Wipe along the grain with warm soapy water and a soft cloth, then dry. Avoid chlorine bleach, wire wool and scouring pads, which can mark the satin finish and leave the steel open to staining.
Frequently asked questions
Is the price for one cap?
Yes, one flat post cap. The minimum order is 10, one per post.
Will it fit 48.3 x 2.6mm tube?
No. The 44.5mm plug is too big for the 43.1mm bore of 2.6mm wall tube. Use the 304 flat M8 cap for 48.3 x 2.6mm tube.
Can I use it as a plain end cap?
Yes. Without a pin it is a neat flat cap; the small centre hole can take a stainless M8 grub screw to close it.
Ordering and delivery
Order online in any quantity from 10, with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For a full post and rail with caps, pins and tube, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm the parts and delivery before you order.
