Description

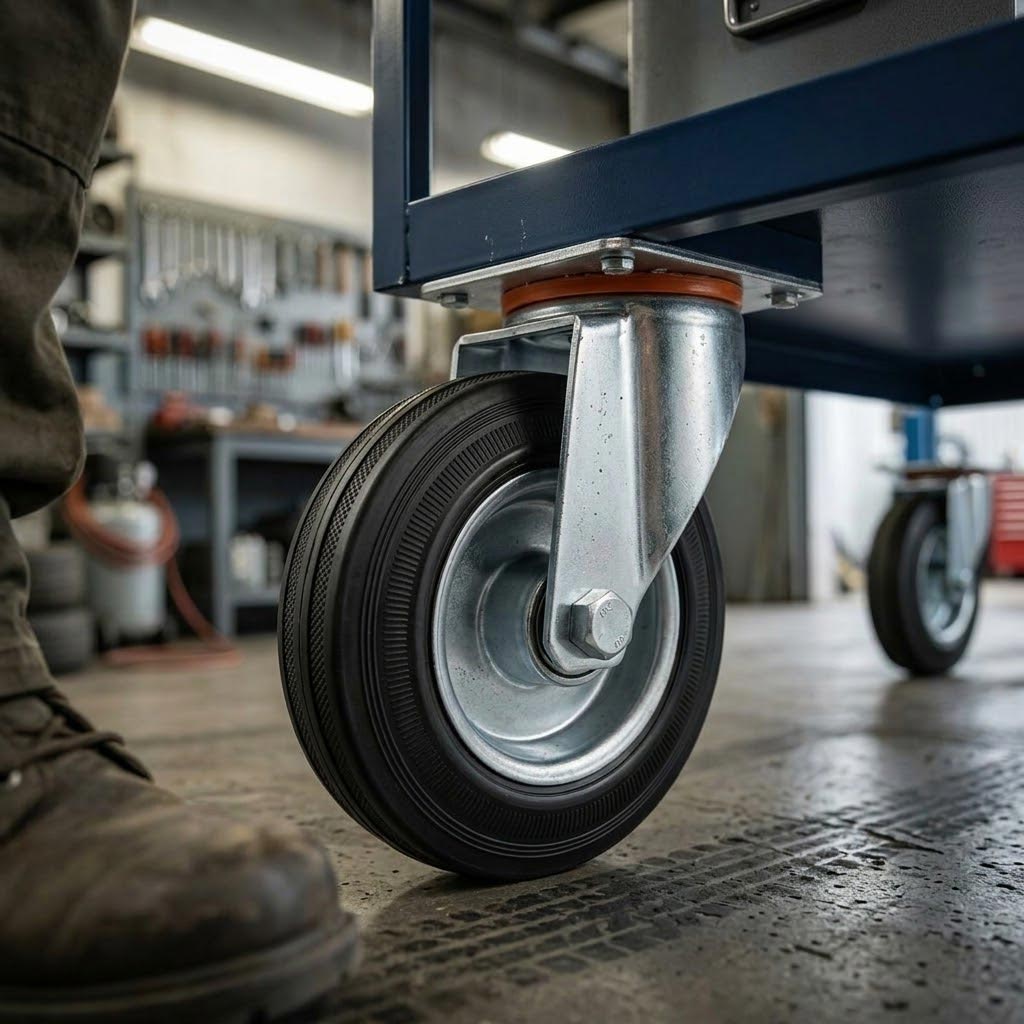

Premium Heavy-Duty Swivel Castor
This 200mm pressed steel swivel castor combines industrial-grade construction with smooth, reliable mobility for demanding commercial and workshop environments. Engineered with a black rubber wheel and heavy-duty pressed steel housing, it delivers exceptional load capacity of 180kg per castor while providing superior shock absorption and vibration reduction. The ball journal bearing ensures effortless 360-degree rotation, making it ideal for trolleys, carts, workbenches, and material handling equipment that require both strength and manoeuvrability.
Technical Specifications
Castor Configuration
| Castor Type | Swivel with Top Plate |
| Bearing Type | Ball Journal Bearing |
| Total Castor Height | 242 mm |
| Housing Material | Pressed Steel |
Wheel Specifications
| Wheel Diameter | 200 mm |
| Tread Width | 50 mm |
| Wheel Material | Black Rubber on Pressed Steel Core |
| Tread Hardness | 85 Shore A |
Mounting Plate Details
| Plate Dimensions | 140 mm ? 110 mm |
| Plate Configuration | 4-Hole Top Plate |
| Hole Centres | 80 mm ? 105 mm |
| Hole Diameter | 10 mm |
Load Capacity
| Per Castor | 180 kg |
| Set of 4 Castors | 720 kg |
Key Performance Features
- ? Superior Shock Absorption: Black rubber tread minimises vibration and protects delicate loads during transport
- ? Smooth 360? Rotation: Ball journal bearing enables effortless swivel movement and precise directional control
- ? Heavy-Duty Construction: Pressed steel housing delivers exceptional durability for industrial applications
- ? Floor Protection: Non-marking rubber wheel suitable for finished floors and smooth surfaces
- ? Universal Mounting: Standard 4-hole top plate fits most trolleys, carts, and equipment
Ideal Applications
This heavy-duty swivel castor is engineered for demanding environments where reliability and load capacity are essential:
- Industrial trolleys and material handling carts
- Workshop benches and mobile workstations
- Warehouse equipment and storage units
- Manufacturing platforms and assembly stations
- Commercial kitchen equipment and service carts
- Heavy-duty furniture and display units
Frequently Asked Questions
What is the maximum load capacity for this castor?
Each castor supports up to 180kg, providing a total capacity of 720kg when using a set of four castors. This rating assumes even weight distribution across all mounting points.
Will this castor work on smooth or polished floors?
Yes, the black rubber wheel is non-marking and suitable for finished floors, tiles, and smooth surfaces. The 85 Shore A tread hardness provides excellent grip while protecting floor finishes from damage.
How do I mount this castor to my equipment?
The castor features a standard 4-hole top plate measuring 140mm ? 110mm with 10mm diameter holes. Mounting holes are positioned at 80mm ? 105mm centres. Secure using M10 bolts or equivalent fasteners appropriate for your application.
What is the difference between swivel and fixed castors?
Swivel castors rotate 360 degrees, allowing equipment to move in any direction with enhanced manoeuvrability. Fixed castors only roll forward and backward. For optimal performance, most applications use swivel castors on the front and fixed castors on the rear for directional stability.
Installation Note: Ensure mounting surface is flat and secure. Distribute load evenly across all castors. Regularly inspect bearings and mounting hardware for optimal performance and safety.
