Description

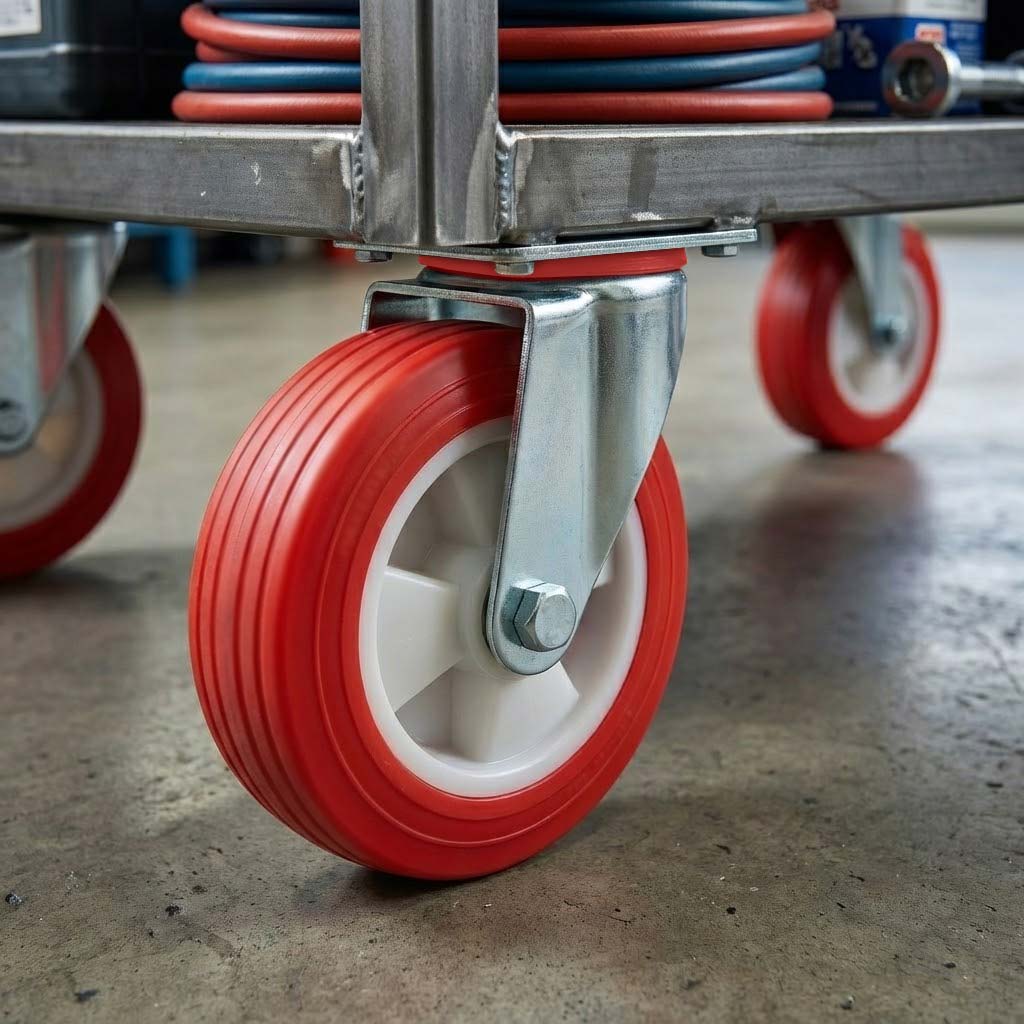

Premium 125mm Swivel Castor with Red Polyamide Wheel
A robust pressed steel swivel castor engineered for smooth manoeuvrability and reliable performance across medium to heavy-duty applications. Featuring a durable red polyamide wheel with polyurethane tread, this castor delivers exceptional floor protection, quiet operation, and a 160kg load capacity. Ideal for trolleys, carts, mobile workstations, and industrial handling equipment in warehousing, manufacturing, retail, and hospitality environments.
Technical Specifications
Wheel Specifications
| Wheel Diameter | 125mm |
| Wheel Material | Red Polyamide (Nylon) with Polyurethane Tread |
| Wheel Width | 32mm |
| Tread Hardness | 85 Shore A |
| Wheel Bore Diameter | 12mm |
Top Plate Specifications
| Plate Type | 4-Hole Top Plate Fitting |
| Plate Dimensions | 100mm ? 85mm |
| Plate Material | Pressed Steel, Zinc Plated |
| Hole Configuration | 4 Holes |
| Hole Diameter | 11mm |
| Hole Spacing (Length) | 80mm |
| Hole Spacing (Width) | 60mm |
Castor Frame & Bearing Specifications
| Frame Material | Pressed Steel, Zinc Plated |
| Bearing Type | Ball Journal Bearing |
| Swivel Mechanism | 360? Full Rotation |
| Finish | Zinc Plated for Corrosion Resistance |
Overall Castor Dimensions
| Total Height | 157mm |
| Mounting Height | 157mm (from floor to top of plate) |
| Overall Width | 100mm (plate length) |
| Overall Depth | 85mm (plate width) |
Load Capacity & Performance
| Maximum Load Capacity | 160kg per castor |
| Recommended Application | Medium to Heavy-Duty |
| Operating Temperature Range | -20?C to ??C |
Key Features & Benefits
- ? Floor-safe polyurethane tread protects delicate surfaces including tile, vinyl, and polished concrete
- ? Smooth, quiet rolling operation ideal for noise-sensitive environments
- ? 360? swivel action provides exceptional manoeuvrability in tight spaces
- ? Ball journal bearing ensures long-lasting, maintenance-free performance
- ? Zinc-plated pressed steel construction offers superior strength and corrosion resistance
- ? Easy bolt-on installation with standard 4-hole top plate configuration
- ? High-visibility red wheel for enhanced safety awareness in busy work areas
Ideal Applications
This versatile swivel castor is engineered for demanding professional environments where reliability, floor protection, and smooth operation are essential:
- Industrial trolleys and mobile workbenches
- Warehouse picking carts and order fulfilment equipment
- Retail display units and merchandising fixtures
- Hospitality service trolleys and catering equipment
- Healthcare mobile storage and medical carts
- Manufacturing assembly line stations
- Office furniture and mobile filing systems
- Workshop tool cabinets and equipment stands
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor has a load capacity of 160kg. For optimal performance and safety, calculate the total weight of your equipment and load, then divide by the number of castors to ensure you stay within this limit per castor.
Will this castor damage my floors?
No. The polyurethane tread is specifically designed to be floor-safe and non-marking. It's suitable for use on tile, vinyl, laminate, polished concrete, and most hard floor surfaces without causing scuffs or damage.
How do I install this castor?
Installation is straightforward using the 4-hole top plate. Position the castor, mark the four mounting holes (80mm ? 60mm spacing, 11mm diameter), drill pilot holes if needed, then secure with appropriate bolts or screws. Ensure all fixings are tight before use.
Is this castor suitable for outdoor use?
While the zinc-plated steel provides corrosion resistance, this castor is primarily designed for indoor applications. For outdoor or wet environments, consider castors with enhanced weatherproofing or stainless steel construction.
What is the difference between swivel and fixed castors?
Swivel castors rotate 360? for maximum manoeuvrability, making them ideal for navigating tight spaces and changing direction easily. Fixed castors only roll in one direction. Most applications benefit from a combination: swivel castors at one end for steering, fixed at the other for stability.
How tall will my equipment be after fitting these castors?
The total height of the castor from floor to the top of the mounting plate is 157mm. Add this measurement to your equipment's base height to calculate the final overall height.
Can I use these castors on carpet?
These castors work best on hard, smooth surfaces. While they can be used on low-pile commercial carpet, performance may be reduced and more effort required to move loaded equipment. For regular carpet use, consider larger diameter wheels.
Do these castors require maintenance?
The ball journal bearing design is largely maintenance-free. Periodically check that mounting bolts remain tight, remove any debris from the wheel, and inspect for wear. A light application of lubricant to the swivel bearing annually can help maintain smooth operation.
Engineered for professionals who demand reliability, performance, and floor protection in every roll.
