Description

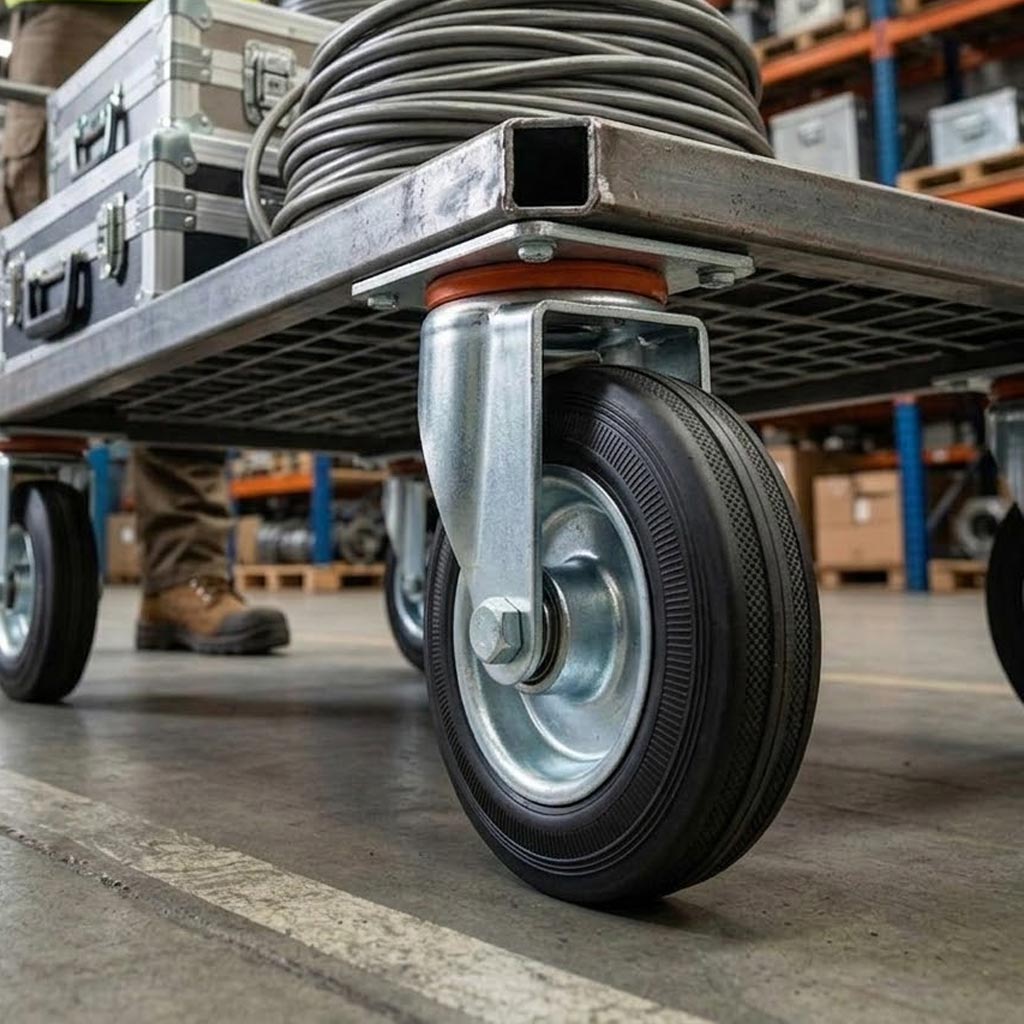

125mm Pressed Steel Swivel Castor Wheel
Black Rubber Wheel | 4-Hole Top Plate | 110kg Load Capacity
Product Overview
This 125mm pressed steel swivel castor combines robust construction with smooth, controlled movement for light- to medium-duty applications. Engineered with a durable black rubber wheel on a pressed steel core, this castor delivers reliable performance across industrial and commercial environments.
Designed for trolleys, mobile workstations, handling equipment, and storage units, the castor features a ball journal bearing for enhanced manoeuvrability and a secure 4-hole top plate mounting system. With a 110kg load capacity per castor and a total height of 157mm, it provides excellent ground clearance and dependable support for demanding indoor applications.
Key Performance Features
Pressed Steel Construction
Robust housing engineered for strength and durability in demanding commercial and industrial environments.
Ball Journal Bearing
Smooth 360-degree rotation with reduced rolling resistance, improving manoeuvrability under load.
Black Rubber Wheel
85 Shore A hardness provides controlled movement, effective shock absorption, and reduced vibration on hard floors.
110kg Load Capacity
Suitable for light- to medium-duty applications with a combined capacity of 400kg when using four castors.
4-Hole Top Plate Fixing
Secure mounting with 100mm x 85mm plate dimensions and 10mm diameter holes for reliable installation.
Enhanced Ground Clearance
157mm total height delivers improved obstacle clearance and rolling efficiency on uneven indoor surfaces.
Technical Specifications
Ideal Applications
- Industrial and commercial trolleys
- Workshop carts and handling equipment
- Mobile workstations and assembly benches
- Storage units and shelving systems
- Material handling equipment
- General transport equipment for indoor use
- Light- to medium-duty mobile applications
Frequently Asked Questions
What is the maximum weight this castor can support?
Each castor has a load capacity of 110kg. When using four castors together, the combined maximum load capacity is 400kg. This makes them suitable for light- to medium-duty applications such as trolleys, mobile workstations, and handling equipment.
What type of floors is this castor suitable for?
The black rubber wheel with 85 Shore A hardness is designed for indoor hard floor surfaces including concrete, tile, laminate, and sealed wood. The rubber tread provides shock absorption, reduces vibration, and protects floor surfaces from marking while delivering smooth, controlled movement.
How do I install this castor to my equipment?
This castor features a 4-hole top plate mounting system. The plate measures 100mm x 85mm with hole centres at 60mm/80mm width and 10mm diameter holes. Simply align the plate with your equipment's mounting surface, mark the hole positions, drill pilot holes if needed, and secure using appropriate bolts or screws.
What is the difference between a swivel and fixed castor?
A swivel castor rotates 360 degrees, allowing for enhanced manoeuvrability and easier directional changes. This model features a ball journal bearing for smooth rotation under load. Fixed castors only roll in a straight line. For optimal performance, many applications use a combination of swivel castors at the front for steering and fixed castors at the rear for stability.
Premium Quality Mobility Solutions
Engineered for durability, reliable performance, and long service life in commercial and industrial environments. Sourced from trusted manufacturers to deliver dependable mobility solutions for your equipment.
