Description

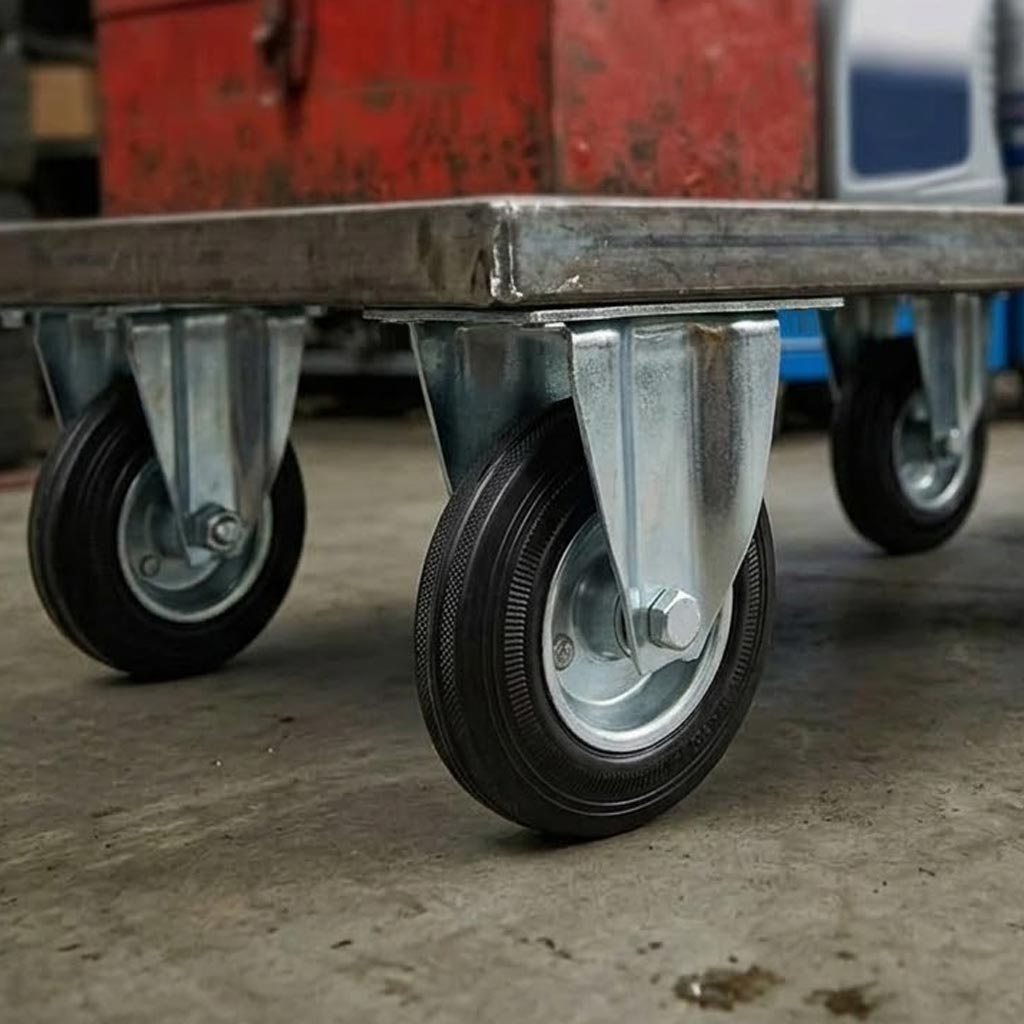

Premium Fixed Castor for Industrial Applications
This 100mm pressed steel fixed castor delivers reliable, straight-line mobility for trolleys, carts, and industrial equipment. Engineered with a black rubber wheel on a pressed steel core, it combines durability with smooth rolling performance. The ball journal bearing ensures consistent movement under loads up to 75kg per castor, while the zinc-plated top plate provides secure, corrosion-resistant mounting. Ideal for warehouses, workshops, and commercial environments where directional stability is essential.
Technical Specifications
Castor Configuration
| Castor Type | Fixed, Top Plate |
| Bearing Type | Ball Journal |
| Load Capacity | 75 kg per castor |
| Total Castor Height | 127 mm |
Wheel Specifications
| Wheel Diameter | 100 mm |
| Tread Width | 30 mm |
| Wheel Material | Black Rubber on Pressed Steel |
| Tread Hardness | 85 Shore A |
Mounting Plate Dimensions
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Plate Hole Centres | 60 mm ? 80 mm |
| Plate Hole Diameter | 10 mm |
| Plate Finish | Zinc Plated |
Key Performance Features
- ? Fixed design ensures straight-line movement and directional stability
- ? Ball journal bearing for smooth, low-friction rolling
- ? Black rubber tread provides excellent grip and floor protection
- ? Pressed steel construction delivers long-lasting durability
- ? Zinc-plated top plate resists corrosion in demanding environments
- ? 4-hole mounting pattern for secure, versatile installation
Ideal Applications
This fixed castor is engineered for environments where controlled, straight-line movement is required. The robust pressed steel frame and rubber wheel combination make it suitable for:
- Industrial trolleys and material handling carts
- Workshop benches and mobile workstations
- Warehouse racking and storage systems
- Commercial equipment requiring directional stability
- Manufacturing floor transport solutions
Frequently Asked Questions
What is the difference between a fixed castor and a swivel castor?
A fixed castor only moves in a straight line, providing directional stability and control. It's ideal for applications where you need predictable, linear movement. A swivel castor rotates 360 degrees, offering greater manoeuvrability but less directional control. Many trolleys use a combination of both types for optimal performance.
How do I install this castor on my equipment?
This castor features a 4-hole top plate mounting system. Simply align the plate with your equipment's base, ensuring the hole centres (60mm ? 80mm) match your mounting points. Use four bolts with a 10mm diameter through the plate holes to secure the castor firmly. Ensure all fixings are tightened evenly for optimal stability and load distribution.
What type of flooring is this castor suitable for?
The black rubber wheel with 85 Shore A hardness is designed for use on smooth, hard surfaces such as concrete, tile, sealed wood, and epoxy-coated floors. The rubber tread provides excellent grip while protecting floor surfaces from scratching or marking. It performs well in warehouses, workshops, and commercial indoor environments.
Can I use this castor outdoors or in wet conditions?
While the zinc-plated top plate offers corrosion resistance, this castor is primarily designed for indoor industrial use. The rubber wheel and ball journal bearing perform best in dry conditions. For outdoor or wet environments, consider castors specifically rated for weather exposure to ensure longevity and consistent performance.
