Gate Lock Frame Kit, 50 x 50mm Box Section 1950mm with Pre-Cut Lock Slots, Lock, Handles and Cylinder

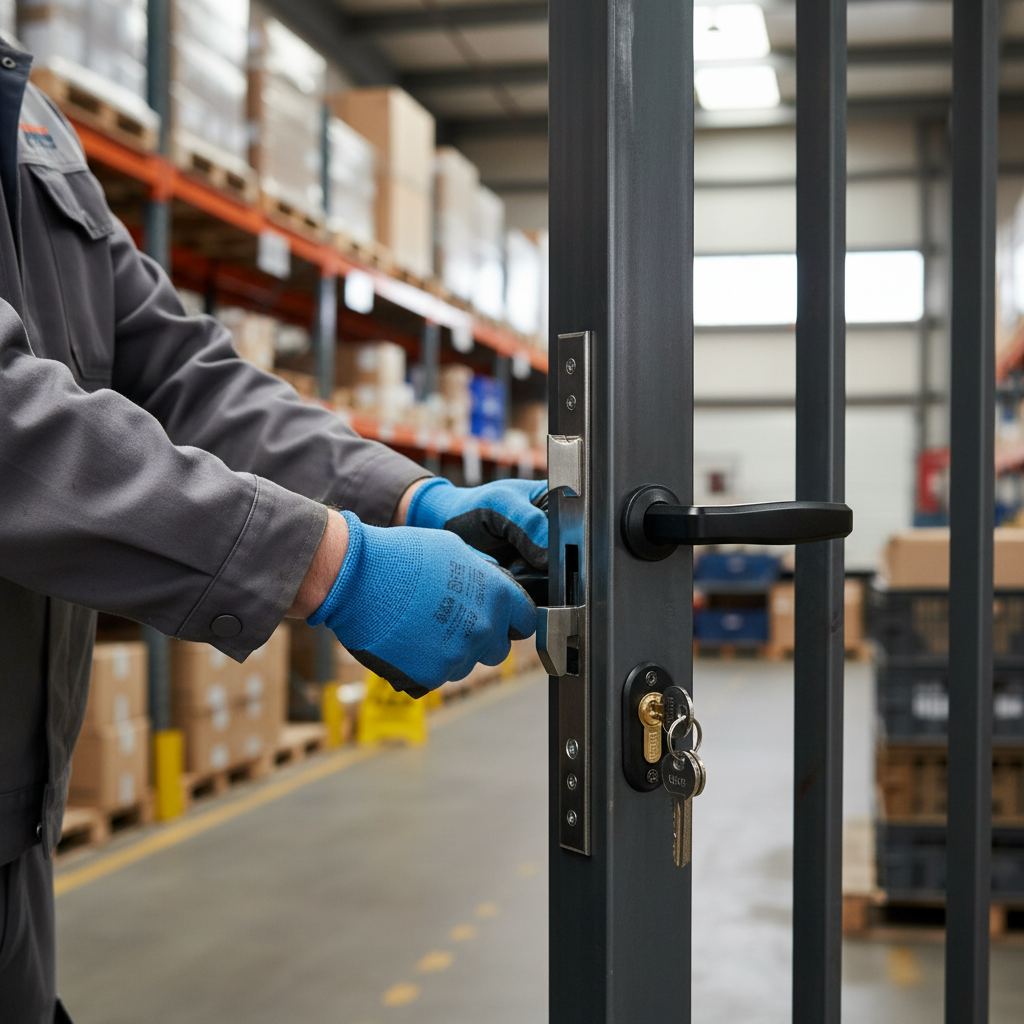

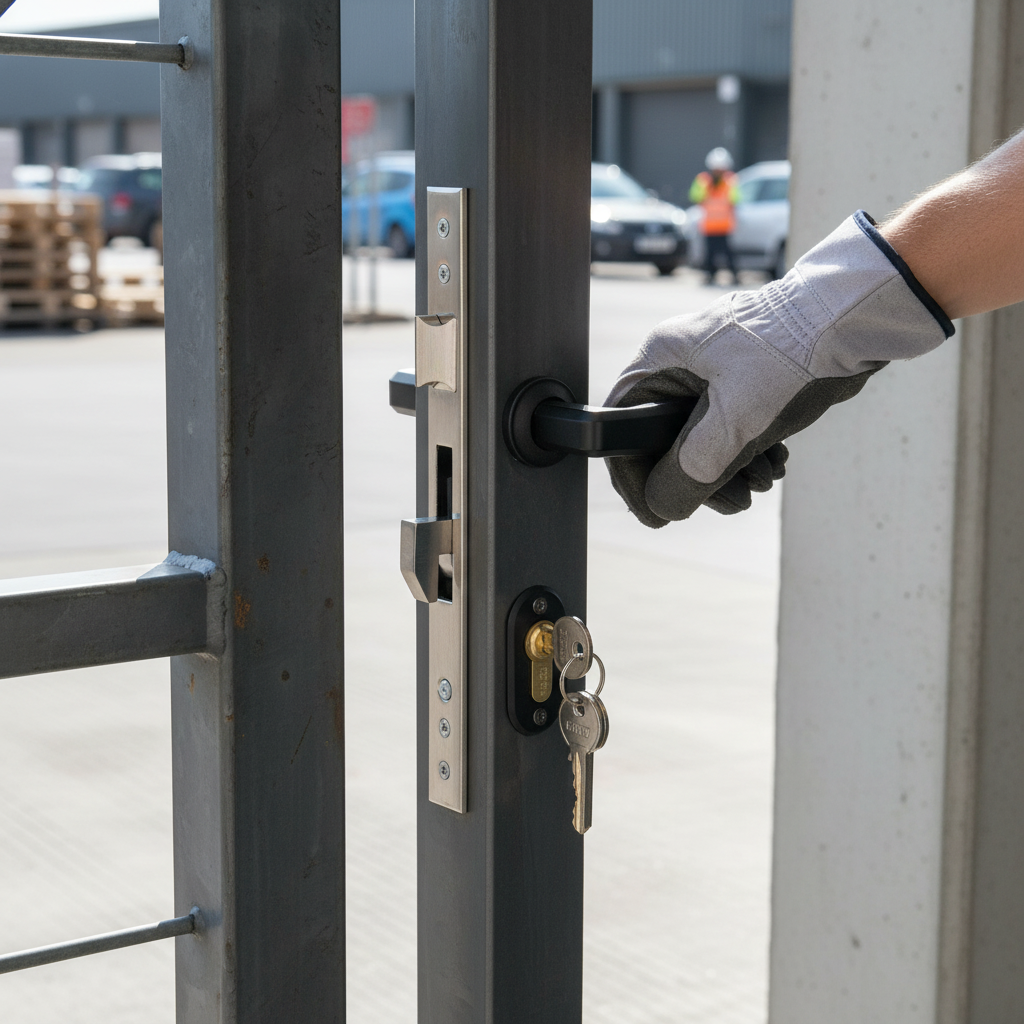

This is a ready-made lock stile kit for building a steel pedestrian gate: a 1950mm length of 50mm x 50mm square steel box section with the slots already cut for a concealed mortice lock, supplied with the lock, lever handles, a euro cylinder with three keys and escutcheons. Use the box section as the closing stile of the gate, drop the lock into the pre-cut slots, and the lock sits hidden inside the stile with only the faceplate, handles and keyhole showing. It saves the most fiddly part of making a gate: marking out and cutting accurate lock slots in box section. The price shown is for one complete kit.

Why use this kit

No slot cutting. The lock, handle and cylinder openings are cut to match the lock supplied, so the lock fits first time without hours of drilling, filing and fettling.

A neat, concealed lock. Because the lock sits inside the stile, there is no lock box on the face of the gate: just the handles, the keyhole and a slim faceplate on the edge. It looks tidy and gives an intruder nothing to lever off.

Everything in one kit. Lock, handles, euro cylinder with three keys, escutcheons and the box section itself, so one order covers the locking side of the gate.

Ready to fabricate. The box section is raw mild steel, ready to weld into the gate frame and then paint, powder coat or galvanise with the rest of the gate.

Where it is used

Fabricated steel pedestrian gates for homes, side passages and driveways, gates into yards, compounds and bin stores, school and commercial gates, and any gate made by a fabricator or blacksmith from 50mm box section.

Specifications

Other gate locks

Choosing the right option

Choose this kit when you are making a new steel gate from 50mm box section and want a hidden lock with no slot cutting. If the gate is already built, a surface-mounted lock that bolts to the face of the stile is quicker to fit. Plan a matching keep or slotted strike on the post to take the lock's latch and bolt.

Fitting and care

Weld the box section into the gate as the closing stile, with the slots facing the right way for the hand of the gate. After welding and finishing, fit the lock into the stile, fit the cylinder, handles and escutcheons, and make the keep on the post so the latch and bolt engage fully. Keep the lock clean and put a little graphite in the cylinder once a year.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery. The box section is a long item, so it travels as a bulky parcel. For trade quantities or help planning a gate, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
