Description
Product Overview

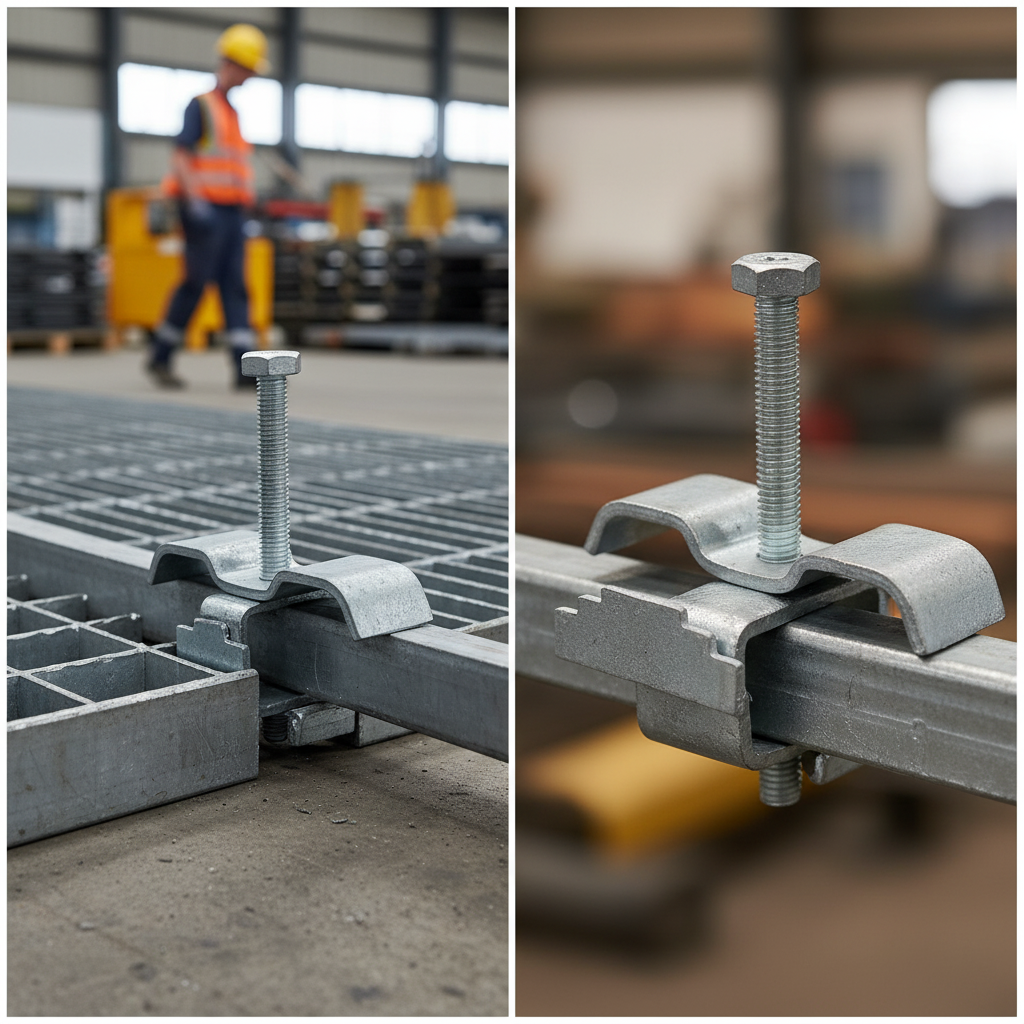

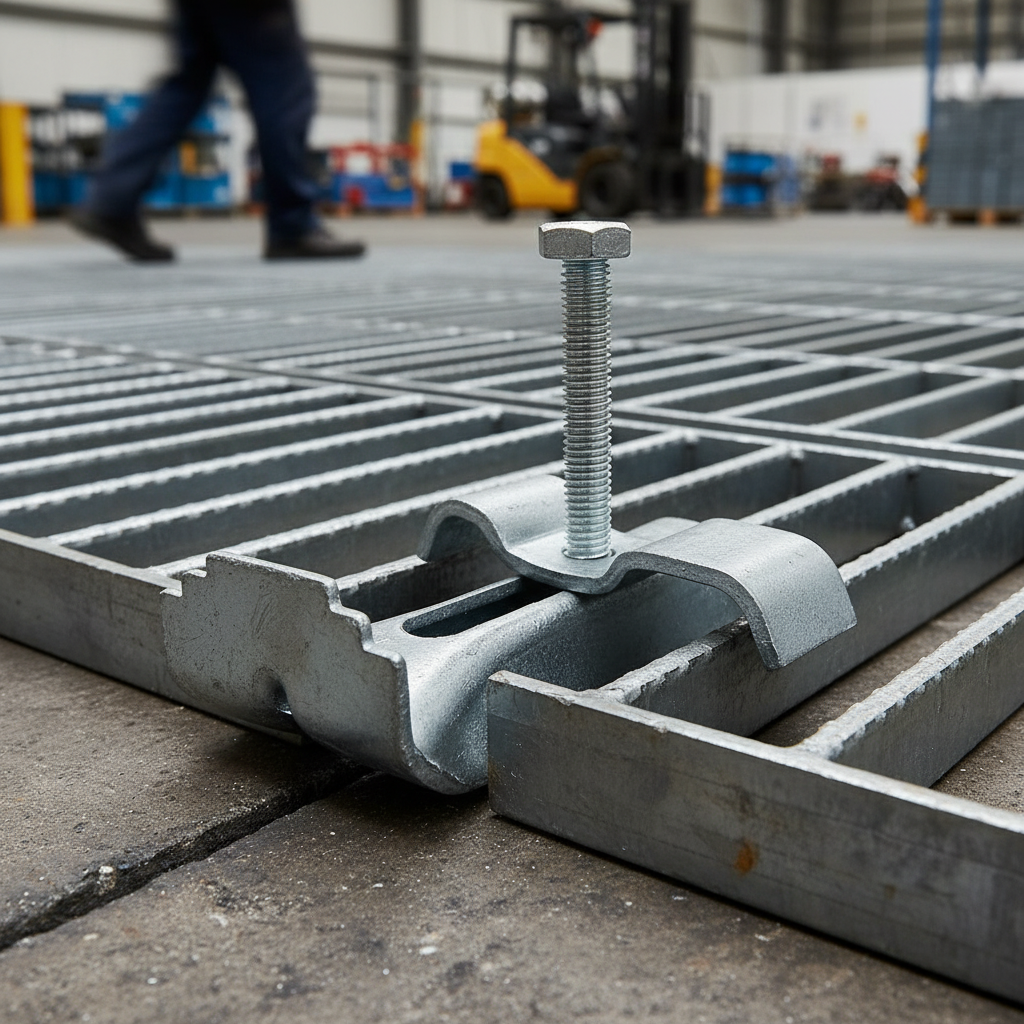

The Premium Flooring Grating Clip is designed to accommodate load bar centres ranging from 30mm to 41mm, making it an ideal solution for various flooring applications. This clip features a robust, galvanised construction, ensuring durability and resistance to corrosion.
Key Features
- Installation from one side only for convenience
- Compatible with load bars between 30mm and 41mm
- Can fit load bars up to 50mm deep
- Slotted body allows for adjustment towards steel work
- Includes M8 screw for secure fastening
- Galvanised finish for enhanced durability
Technical Specifications
| Specification | Measurement |
|---|---|
| Load Bar Centre Compatibility | 30mm to 41mm |
| Maximum Load Bar Depth | 50mm |
| Screw Size | M8 |
| Weight | 0.15 kg |
| Length | 90.0mm |
| Width | 48.0mm |
| Depth | 19.0mm |
| Material | Mild Steel |
| Material finish | Galvanised |
Installation Instructions
This flooring clip is designed for quick and easy installation from one side only, allowing for efficient setup and adjustment as needed.
Benefits
- Enhances stability of flooring systems
- Durable galvanised finish resists corrosion and wear
- Easy to adjust for precise fit
FAQs
- Q: Can these clips be used with other load bar sizes?
- A: These clips are specifically designed for load bars between 30mm and 41mm.
- Q: What is the maximum depth of load bars that can be used?
- A: The clips can fit load bars up to 50mm deep.
