Heavy Duty Rubber Dock Bumper 250 x 600 x 100mm – Tall Profile HGV Loading Bay Buffer

When your loading dock receives a wide mix of vehicle types — from standard curtainsiders to tall refrigerated trailers and container flats — a taller dock bumper profile is essential. The 250 x 600 x 100mm Tall Profile Rubber Dock Bumper provides a 600mm contact height that accommodates greater variation in trailer bed heights, delivering consistent protection even as fleet vehicle types change. Built from high-performance natural/SBR rubber with a steel back plate, this bumper delivers thousands of reliable impact cycles with zero maintenance.

Why the 600mm Tall Profile Makes a Critical Difference

Standard 250–330mm height dock bumpers are designed for uniform fleets with consistent trailer bed heights. In mixed-fleet operations — where the same dock door receives a 4×2 rigid, an articulated 13.6m trailer, and a temperature-controlled refrigerated unit in the same morning — the trailer bed height can vary by 150mm or more. A 600mm tall bumper provides over twice the vertical contact area of standard bumpers, ensuring every vehicle type receives full bumper contact and protection. This eliminates the risk of HGV trailer corners making direct contact with your dock door frame above or below a shorter bumper.

Key Benefits

• 600mm Tall Contact Face — Accommodates full variation in trailer bed heights across rigid, articulated, and refrigerated HGV fleets at the same dock position
• Steel Back Plate — Ensures even distribution of impact load across the full mounting face, protecting anchor bolts and preventing pull-away under heavy impact
• Natural/SBR Rubber Compound — UV-stable and oil-resistant; maintains consistent elasticity through thousands of docking cycles in all UK weather conditions
• 100mm Standard Depth Profile — Delivers proven energy absorption for standard loading bay environments with controlled docking speeds
• Pre-Drilled for M20 Anchors — Ready for immediate installation; no specialist fabrication or on-site drilling of the bumper required
• Low Maintenance Operation — Solid rubber construction with no foam core degradation; simply bolt on and inspect fixings periodically
• Long Service Life — Quality rubber compound resists cracking, splitting, and permanent deformation across extended service periods

Technical Specifications

Ideal Applications & Use Cases

• Mixed-Fleet Distribution Centres — Operations receiving rigid HGVs, articulated lorries, and refrigerated trailers at the same dock benefit enormously from the taller bumper profile ensuring consistent full contact regardless of vehicle type
• 3PL & Logistics Hub Facilities — Third-party logistics operators handling multiple client vehicle types need dock protection that works for every configuration without repositioning
• Supermarket Regional Distribution Centres — High-volume facilities with continuous trailer turnover — from ambient curtainsiders to refrigerated double-deck trailers — need the versatility of a taller bumper profile
• Container Handling Facilities — Skeletal trailer container heights vary significantly; the 600mm profile provides adequate protection across standard ISO container floor heights
• Agricultural & Rural Depots — Country estates and farm supply businesses receiving deliveries from varying vehicle types benefit from the taller contact height
• Upgrade Installations — An excellent upgrade for existing docks where shorter bumpers are proving inadequate for the vehicle mix, with no structural modification required

Installation Guide

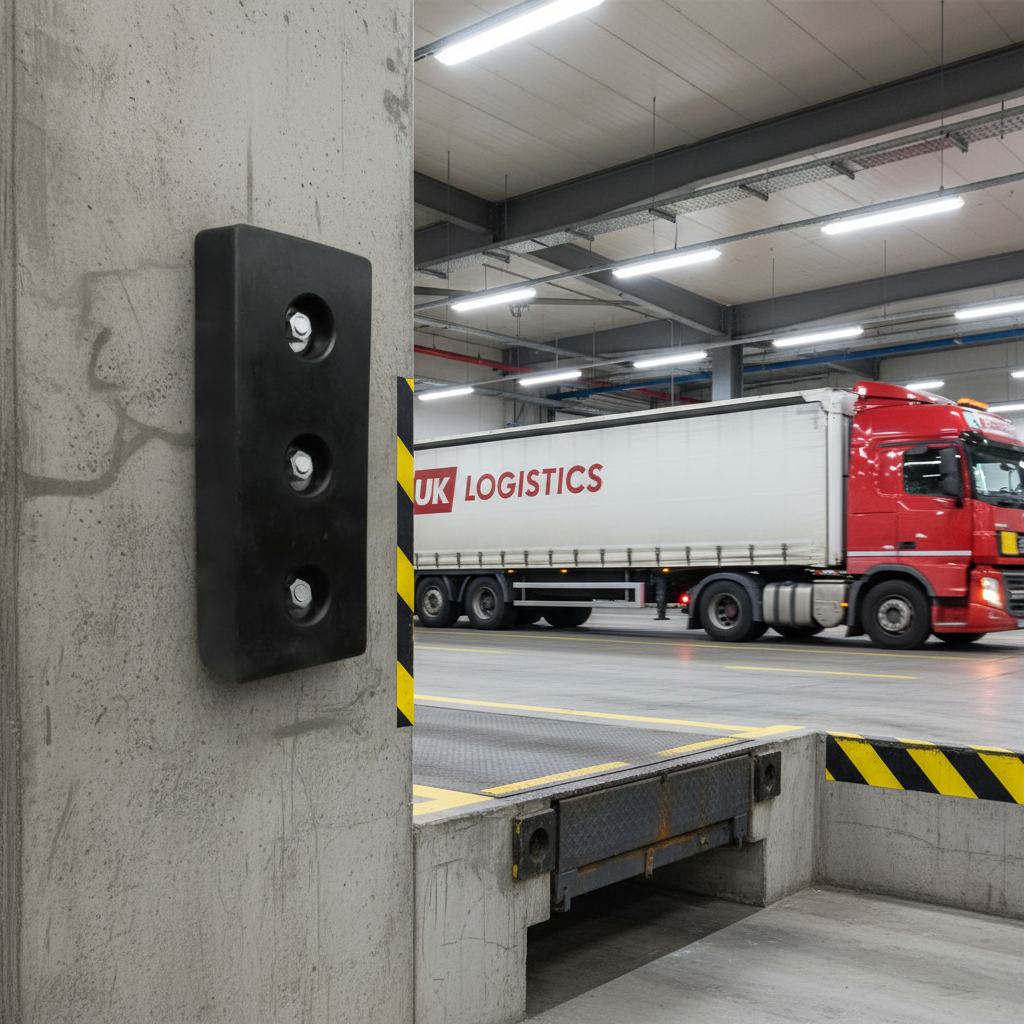

For the 600mm tall bumper, vertical positioning is critical to ensure the bumper centre aligns with the midpoint of the expected trailer bed height range. Typically, the bumper lower edge should be positioned at approximately 800mm from dock floor level, placing the centre at 1,100mm — mid-range for most mixed-fleet operations. Confirm your average trailer bed heights before marking fixing positions. Use the steel back plate as a template to mark anchor hole positions on the dock face. Drill to the required depth using an SDS drill with an appropriate masonry bit. Install M20 anchor bolts to the specified embedment depth. Torque to specification using a calibrated torque wrench. Install bumpers in pairs, symmetrically positioned either side of the dock door opening. Verify correct positioning by checking contact with the first few vehicle types to use the dock.

Frequently Asked Questions

What trailer bed height range does the 600mm bumper accommodate? In typical installation with the bumper lower edge at 800mm from floor level, the bumper face spans from 800mm to 1,400mm from ground. This accommodates most UK articulated trailer bed heights, which typically range from 1,000mm to 1,350mm from ground depending on trailer type and suspension.

Do I need two bumpers per dock door? Yes — industry best practice specifies two bumpers per dock door, positioned symmetrically either side of the door opening. This ensures balanced contact load distribution and prevents twisting forces on dock door frames.

How does this compare to the standard 250 x 450mm bumper? The 600mm tall bumper provides an additional 150mm of vertical contact height compared to the standard 450mm bumper. This added height is particularly valuable in mixed-fleet operations where trailer bed heights vary significantly between vehicle types.

This tall profile rubber dock bumper is part of our comprehensive UK range of loading bay dock bumpers, HGV dock buffers, and warehouse dock protection systems. Browse our full collection of dock bumpers and loading bay equipment to complete your dock protection specification. All products are stocked in the UK for fast nationwide delivery. For technical advice on bumper selection, project pricing, or volume orders, contact our industrial supplies team. Suitable as a tall dock bumper, loading bay buffer, or HGV dock protector for distribution, warehousing, retail, and manufacturing operations across the UK.
