Description
A galvanised field gate hinge set with a 600mm top band, adjustable gate eye, heel clips, hook to bolt and hook to drive, with fixings. The price shown is for one hinge set.
Why choose this hinge set
Complete kit. The set includes the top band, adjustable gate eye, heel clips, hook to bolt and hook to drive, with fixings.
Adjustable. The adjustable gate eye lets you set the gate level after hanging.
Galvanised finish. A galvanised coating suits outdoor field gates.
Where it is used
Timber field gates and farm gates on timber posts.
What each part does

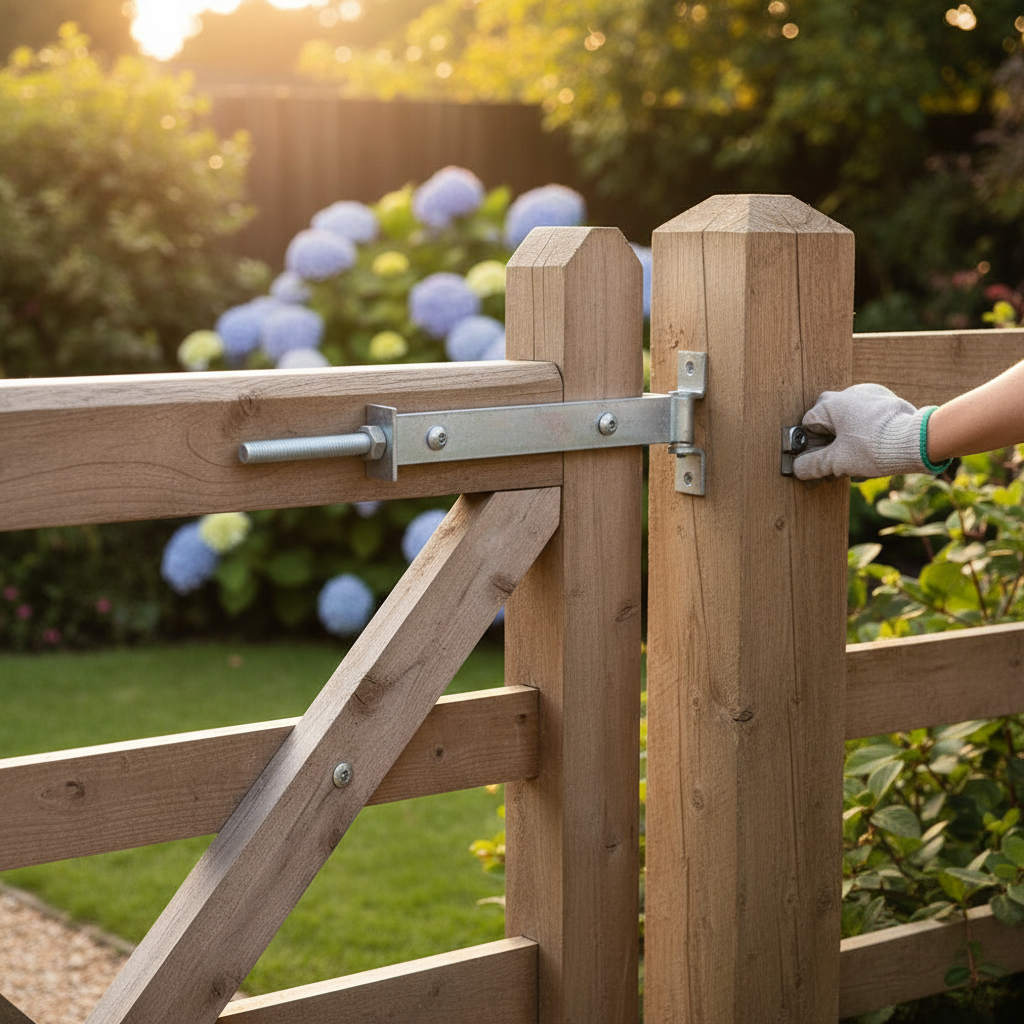

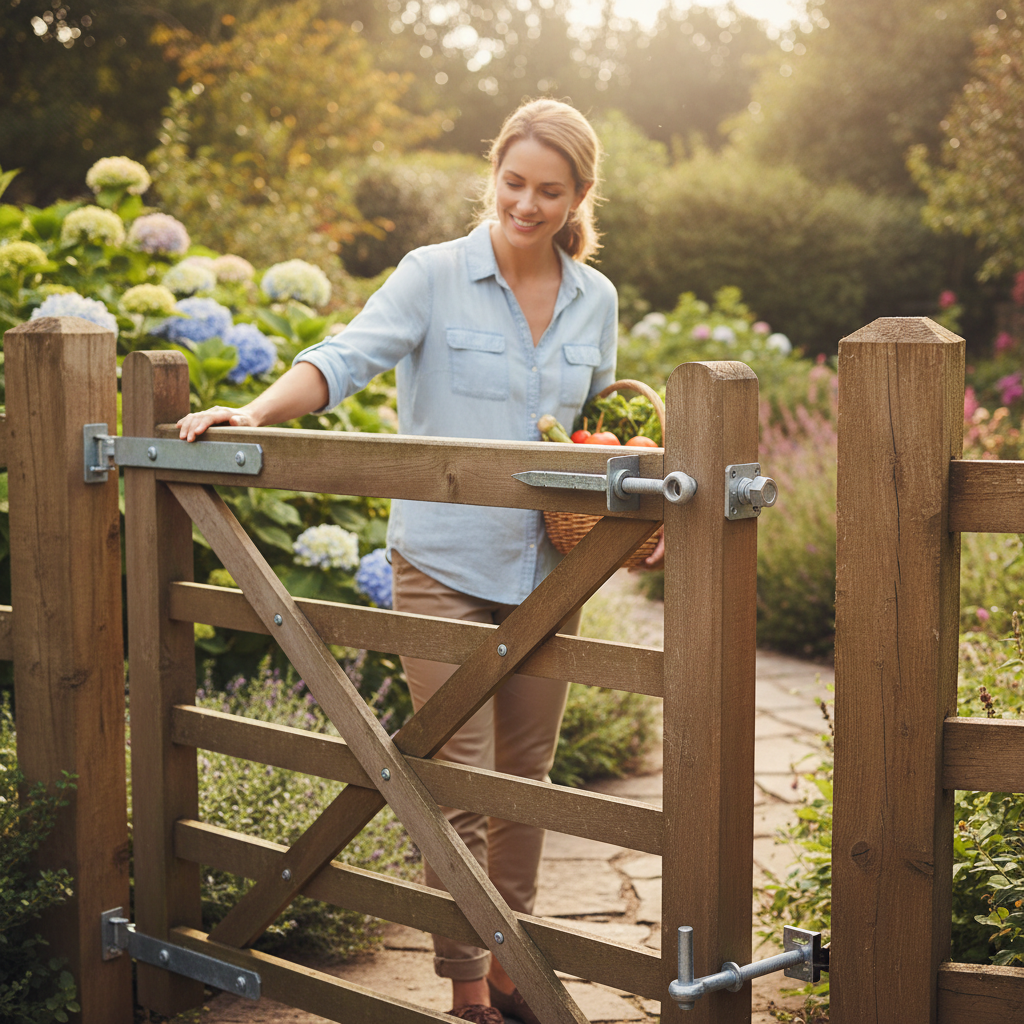

The set has the parts needed to hang one timber field gate on a timber post. The top band bolts along the top rail of the gate, and its eye sits over the hook to bolt, which passes through the post.
The adjustable gate eye and heel clips fit at the bottom of the gate and sit over the hook to drive, which has a pointed shank that drives into the post. Fixings are included with the set.
Before you order
Check the top rail of your gate against the 600mm nominal top band, and check that your post can take a bolt through it and a driven hook below. Measure the post thickness before you drill.
No maximum gate weight is published for this set, so call us on 01744 520 110 if you are hanging an unusually long or heavy gate and we will talk it through with you.
Fitting tips
Set the post first and make sure it is plumb and firm, because the hinges can only hang the gate as straight as the post allows. Mark the top and bottom hook positions on the same vertical line.
Drill for the hook to bolt and tighten it through the post. Drive the bottom hook in line beneath it. Fit the top band and the bottom fitting to the gate, lift the gate on to the hooks, then use the adjustable eye to bring the gate level.
This is general guidance, so follow good practice for your own gate and site.
Looking after the set
Every part is galvanised for outdoor use. If you cut or drill any part, treat the bare steel with a zinc rich paint. Check the fixings from time to time, as timber posts and rails can move as they dry and settle.
Specifications
| What you get | One hinge set |
|---|---|
| Top band | 600mm nominal |
| Included | Top band, adjustable gate eye, heel clips, hook to bolt, hook to drive and fixings |
| Finish | Galvanised |
| Weight | About 6.26 kg each |
See the full range of field gate hinges.
Frequently asked questions
Is the price for one?
Yes, it is for one hinge set.
What is in the set?
A top band, adjustable gate eye and heel clips, a hook to bolt and a hook to drive, with fixings.
Will it hang one gate?
Yes, the set is made to hang one field gate.
Do I need to drill the post?
Yes for the top hook, which bolts through the post. The bottom hook drives in.
How does the adjustment work?
The adjustable gate eye at the bottom of the gate lets you bring the gate level after it is hung.
Is it for timber gates?
Yes, this set is for timber field gates on timber posts.
Ordering and delivery
Order online, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
