Description
Product Overview

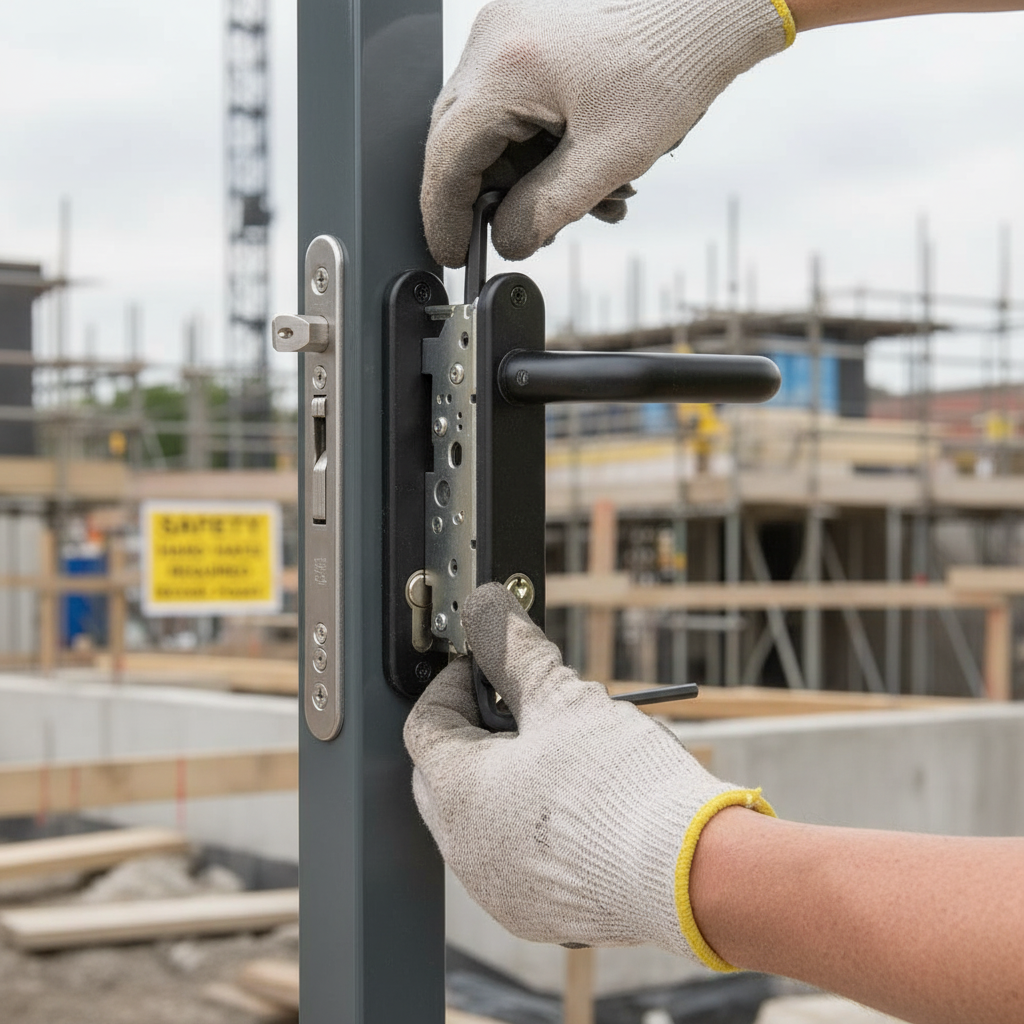

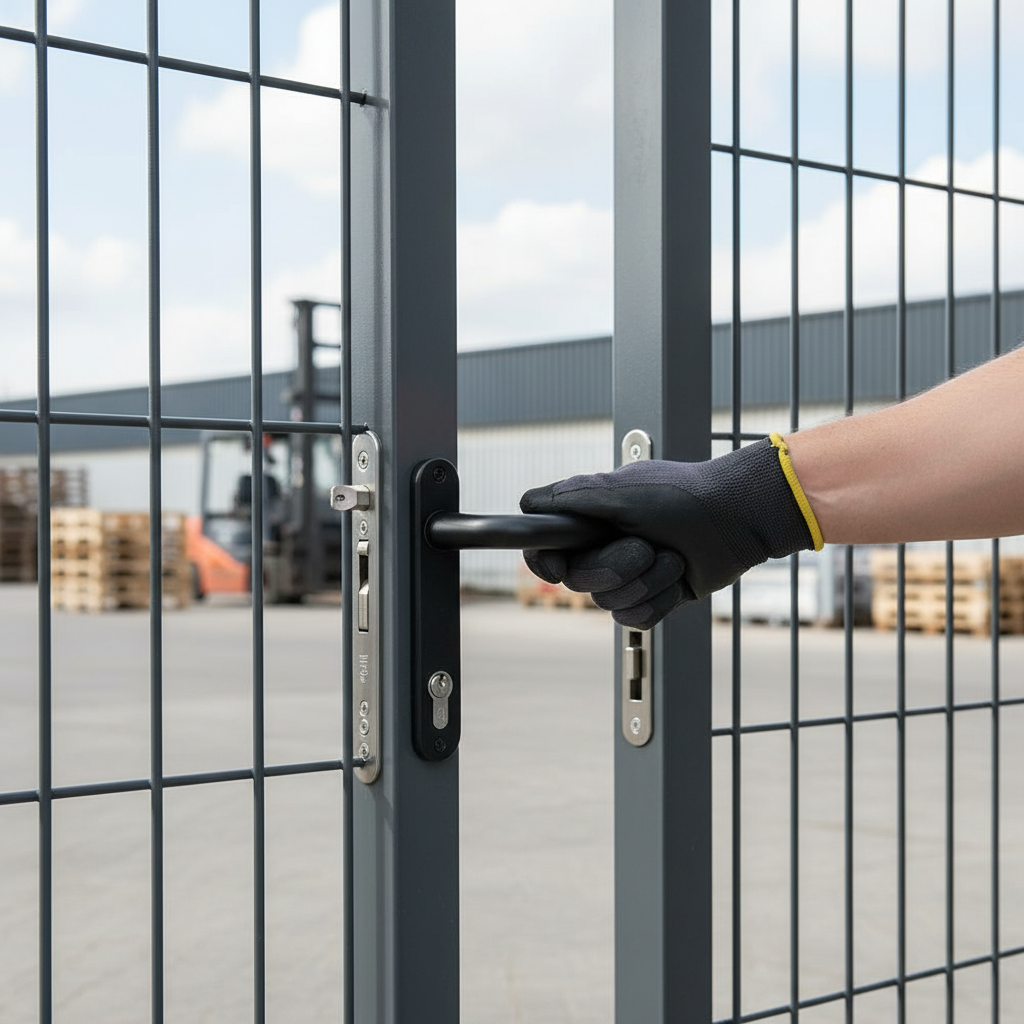

The Premium Fiftylock Insert Kit is designed specifically for 50mm box sections and features a robust powder-coated finish for enhanced durability. This kit is equipped with a stainless steel lock mechanism that includes a cover plate to prevent dirt penetration, ensuring a reliable and long-lasting performance.
Key Features
- Stainless steel lock mechanism with dirt-resistant cover plate
- Components include hook, front plate, and latch bolt made from stainless steel
- Backset of 30 mm for mounting in profiles with a depth of 50 mm or more
- Continuous adjustment of the daybolt up to 10 mm without dismounting the lock
- Key-operated self-latching bolt for enhanced security
- Easy left or right changing of the self-latching daybolt
- Throw of the hook measures 21 mm
- Center distance between the cylinder and the handle is 92 mm
- Compatible with all Europrofile cylinders
- Handles available separately for customization
- Optional cover shield for handle and cylinder holes available in aluminium, polyamide, or stainless steel
- UNIWING-compatible design for versatile applications
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Backset | 30 mm |
| Throw of Hook | 21 mm |
| Center Distance | 92 mm |
| Weight | 1.6 kg |
| Length | 220.0mm |
| Width | 47.0mm |
| Depth | 21.0mm |
Technical Specifications
- Material: Stainless steel and powder-coated finish
- Color: Black (Powder Coated RAL 9005)
FAQ
Q: Is this insert kit compatible with all Europrofile cylinders?
A: Yes, the Premium Fiftylock Insert Kit is compatible with all Europrofile cylinders.
Q: Can I adjust the daybolt without removing the lock?
A: Yes, the kit allows for continuous adjustment of the daybolt up to 10 mm without dismounting the lock.
Q: Are handles included in the kit?
A: No, handles must be ordered separately to customize your installation.
