Description
An adjustable gate hinge that bolts on at both ends, with no welding at all. A square 80mm zinc plate fixes to the post or pier with four bolts, and an oval 114 x 39mm back plate fixes to the gate with two. An M16 eye bolt screws through the square plate's threaded boss and is pinned into the bracket on the back plate, so you can turn it to move the gate in or out and lock it with the nut. Rated for gates up to 300kg on two hinges. The price is for one complete hinge.
Why choose this hinge

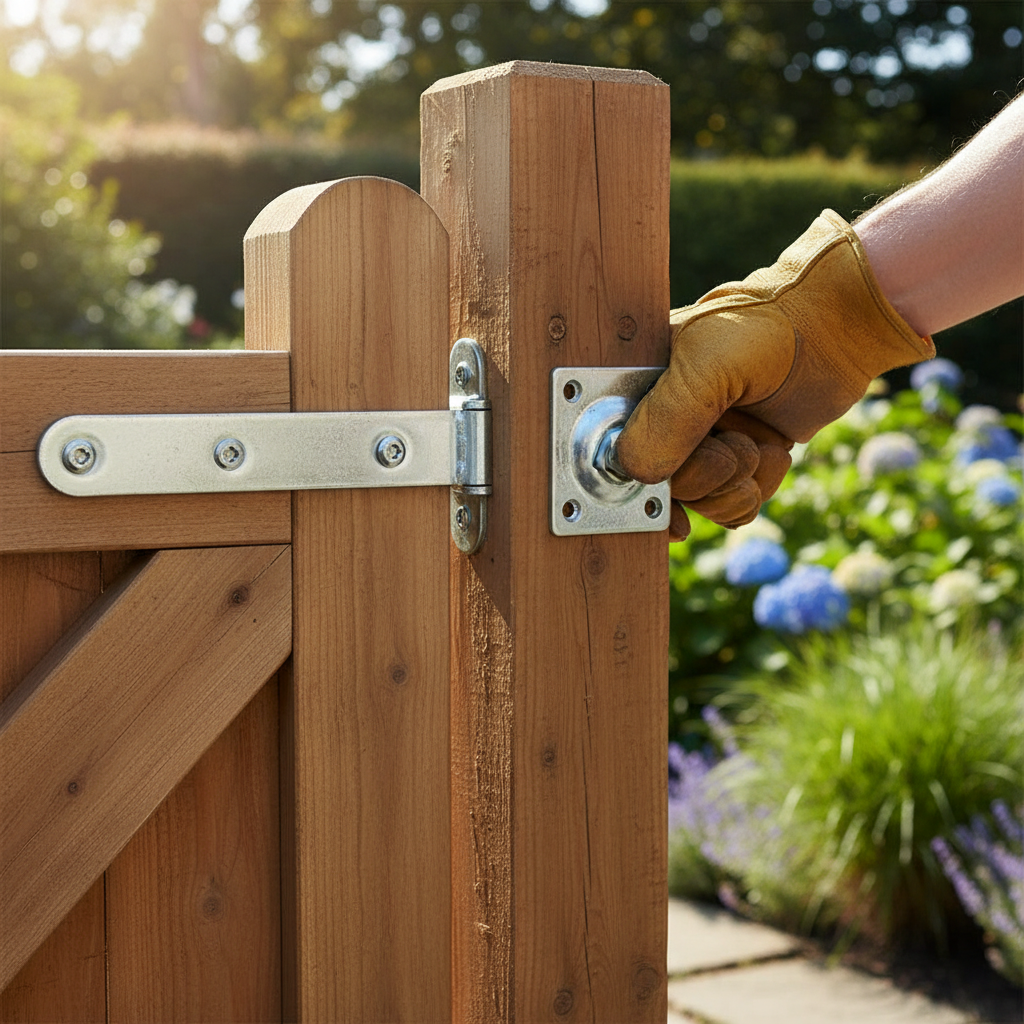

No welding. Both plates bolt or screw on, so it suits timber gates, brick and rendered piers, concrete and timber posts as well as steel, and you can fit it with ordinary tools.
Adjust after hanging. Turn the eye bolt in its threaded boss to bring the gate in or out and level it, then lock the nut. No re-drilling when the gate drops.
Spreads the load. Six fixing points across two broad plates hold firmly in softer materials where a single bolt would pull out.
Rated for 300kg. Two hinges carry garden, side and single driveway gates.
Where it is used
Timber and steel side gates, garden and pedestrian gates, single driveway gates on brick piers or timber posts, and replacing worn strap hinges where welding is not possible.
Specifications
| Sold as | One hinge |
|---|---|
| In the pack | Oval back plate with bracket, M16 eye bolt, pin and socket cap, hex nut, square fixing plate with threaded boss |
| Gate plate | Oval, 114 x 39mm, 2 holes 11mm at 73mm centres |
| Post plate | 80 x 80mm, 4mm thick, 4 holes 11mm at 55mm centres |
| Bolt | M16, 42mm of thread |
| Back plate face to pin | 42mm |
| Gate weight | Up to 300kg on two hinges |
| Material and finish | Steel, bright zinc plated |
| Weight | About 0.64 kg |
Which hinge do you need?
| You want | Choose |
|---|---|
| Bolt on at both ends, gates up to 300kg | This M16 hinge |
| Bolt on at both ends, heavier gates | M20 hinge, 100mm fixing plate and back plate |
| Square plate on the post, weld-on bracket on the gate | M16 hinge on 80mm fixing plate |
| A nut you weld to a steel post, back plate on the gate | M16 hinge with nut on back plate |
| Bolt through the post, back plate on the gate | M16 hinge with jointed plates on back plate |
Fitting

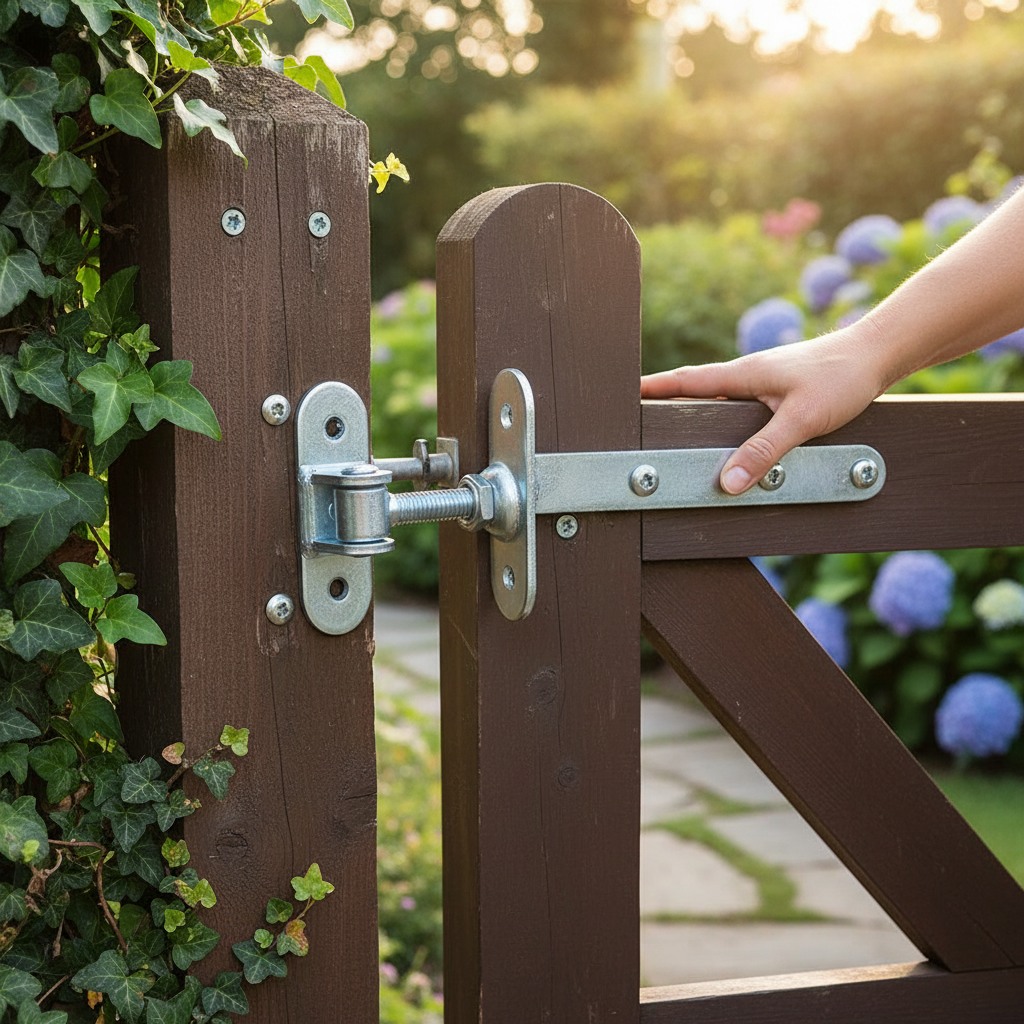

Use two hinges per gate leaf, one near the top and one near the bottom. Fix the square plates to the post in a vertical line with four M10 bolts, anchors or coach screws each, to suit the post. Screw the eye bolts into the plates with the nuts loose. Pin each bolt eye into the bracket on its back plate, stand the gate on packers in position and fix the back plates to the gate stile with two bolts or screws each. Take the packers out, turn the bolts until the gate hangs level with an even gap, then tighten the nuts.
Care
Grease the pin and thread once a year and check all fixings each spring.
Frequently asked questions
Is the price for one hinge?
Yes, one complete hinge with both plates. Most gate leaves need two.
Do I need to weld anything?
No. Both plates bolt or screw on. If your gate is steel you can weld the back plate instead if you prefer.
What fixings do I need?
Six M10 bolts, anchors or coach screws per hinge, suited to your post and gate. They are not included.
Is it left or right handed?
Neither. It works on either side.
Will it carry a 300kg gate on its own?
No. The 300kg rating is for a gate hung on a pair of hinges, fixed into sound material.
Ordering and delivery
Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For larger quantities call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm stock and delivery before you order.
