The simplest way to fix a 33.7mm tube handrail to a wall. The tube slides straight through the ring of each bracket and locks with a hex socket grub screw, so one long rail runs past as many brackets as you need with no joints at the supports. The 84 x 44mm plate screws flat to the wall with two 7mm fixings. Galvanised malleable iron, ready for outdoor use. The price shown is for one bracket, with a minimum order of 10.

Why choose this bracket

Rail runs straight through. No cutting the tube at each bracket: slide on the brackets, then fix them to the wall.

No welding, no hot work. Fit and adjust with a hex key and a drill.

Galvanised for outdoors. Hot-dip galvanised to match galvanised tube on ramps, steps and walkways.

More than a handrail bracket. It also ties frames back to walls, holds kick plates to guard rail posts and mounts display panels.

Where it is used

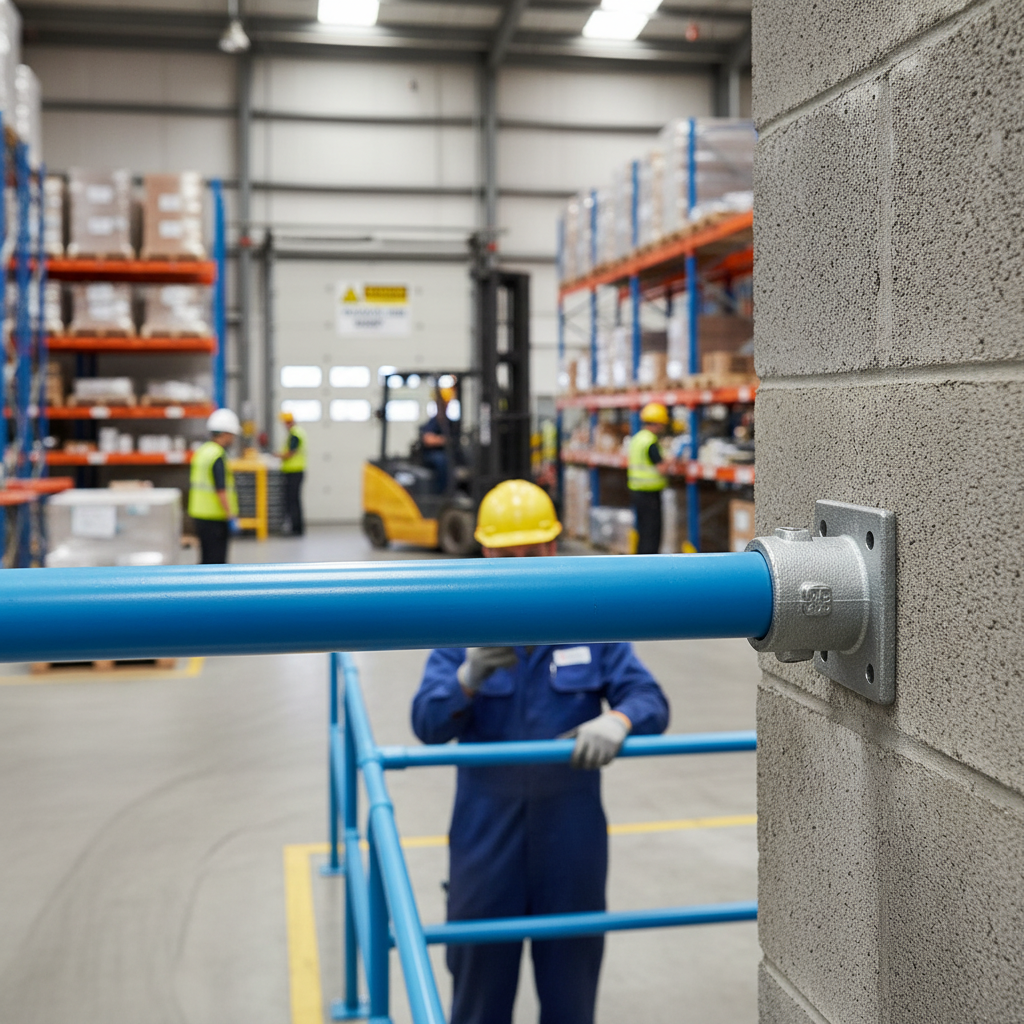

Wall handrails on external ramps and steps at schools, surgeries, shops and blocks of flats; handrails beside steps in warehouses and plant rooms; tying key clamp frames and shelving back to a wall; fixing kick plates to guard rails.

Specifications

What you get	One side through wall bracket, minimum order 10
Suits tube	33.7mm outside diameter (25NB, 1 inch)
Tube direction	Passes through the ring, parallel to the wall
Base to tube centre (A)	57mm
Wall plate (C x D x E)	84 x 44 x 7mm
Fixing holes (B)	2 x 7mm at 64mm centres
Material	Malleable cast iron, hot-dip galvanised
Locking	Hex socket grub screw, supplied fitted
Weight	0.38kg
Wall fixings	Not included: choose fixings to suit your wall

How many do you need?

Space brackets about 1m apart or closer, with one within about 300mm of each end of the rail.

Handrail length	Brackets
Up to 2m	3
4m	5
6m	7
10m	11

Fitting

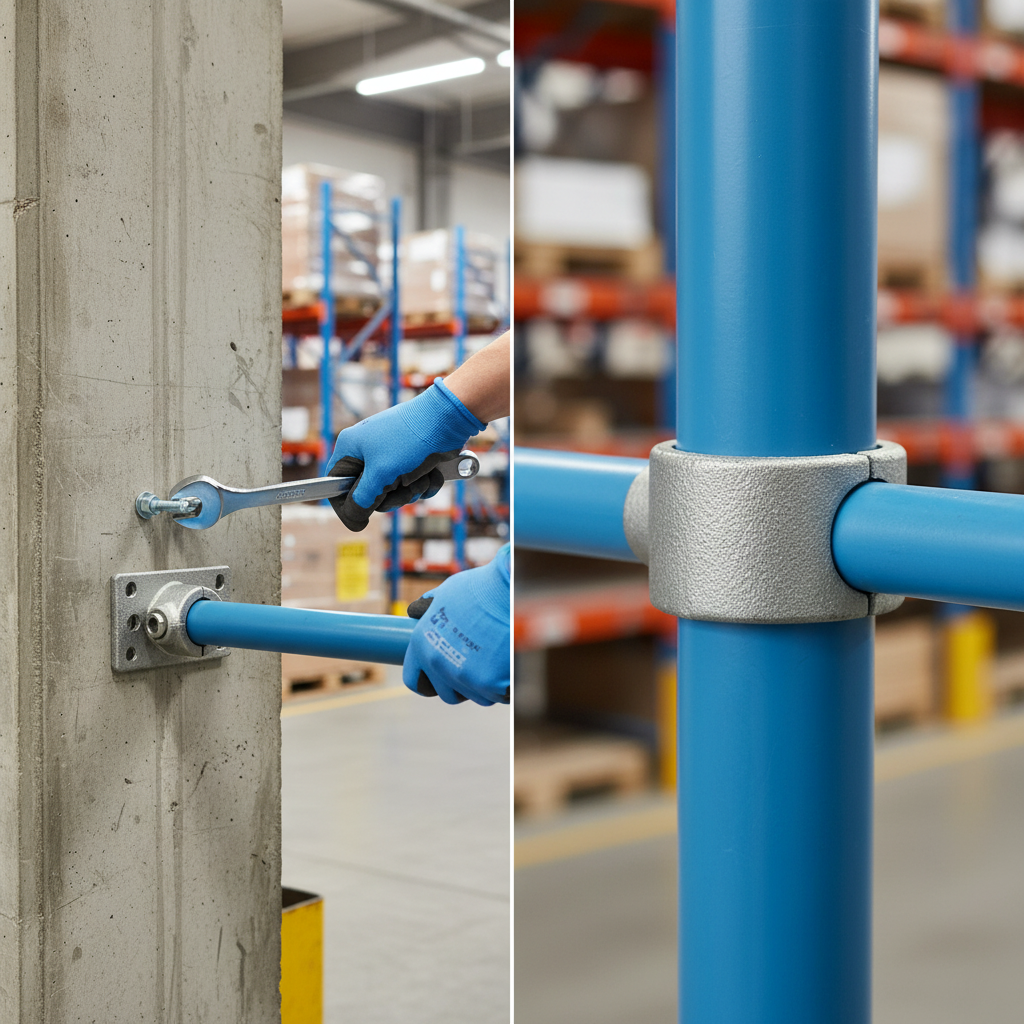

Slide the brackets onto the tube and space them out. Hold the rail at the right height, level or parallel to the ramp, mark the holes, drill and fix each plate to the wall, then tighten the grub screws with a hex key. Finish the open tube ends with end caps or a return to the wall.

Other sizes

See every 33.7mm fitting in 34mm key clamp fittings.

Care

Check the grub screws and wall fixings once a year on busy routes. Treat any scuffs to the galvanising with a zinc-rich paint.

Frequently asked questions

Is the price for one bracket?

Yes, one bracket. The minimum order is 10.

Can I use it as the only base for a guard rail?

No. It is made for wall handrails, tie backs and kick plates. Use a base plate or wall flange for guard rail posts.

Will it fit 33.7mm scaffold tube?

Yes, any 33.7mm outside diameter steel tube, galvanised or painted.

Are screws included?

No. Choose fixings to suit brick, block, concrete or steel.

Ordering and delivery

Order 10 or more online with Express UK Delivery. For a full handrail, send us the length and number of steps: call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will list the tube, brackets and end caps you need.
