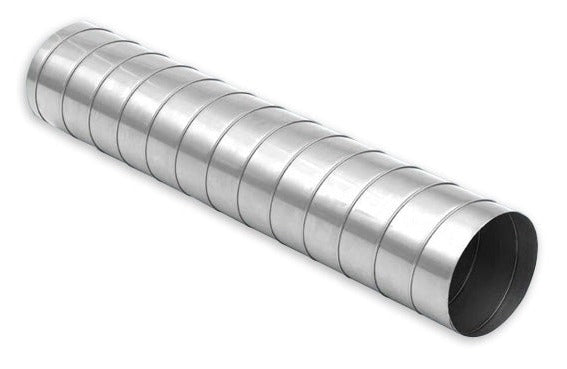

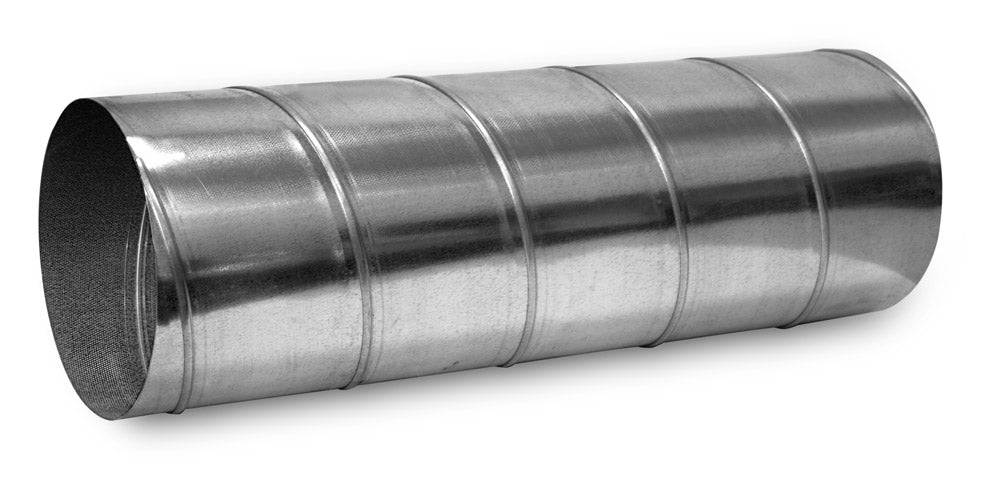

Our spiral Pipe is manufactured using only highest quality galvanised steel, ranging from 0.5mm to 1.25mm thick.
Sold in 1.5mtr lengths as standard ranging from 560mm to 1600mm. lengths are available subject to a small surcharge.
All Spiral Pipe has a large end fitting. Conforms to specification DW144
As we manufacture the spiral pipe ourselves, we can manufacture the duct as required, for instance, should you require extra stability because of high negative pressure, we can manufacture using a large material thickness we can produce lengths of the tube up to 6m long.
Spiral Pipe up to 2.5m diameter is available.
Technical Data
Tube Dimensions
Nominal |
Thickness
|
Length
|
Weight |
| 560mm |
0.70mm |
1.5m |
18.30kg |
| 600mm |
0.70mm |
1.5m |
19.65kg |
| 630mm |
0.70mm |
1.5m |
21.00kg |
| 710mm |
0.90mm |
1.5m |
23.25kg |
| 800mm |
0.90mm |
1.5m |
26.10kg |
| 900mm |
0.90mm |
1.5m |
32.55kg |
| 1000mm |
0.90mm |
1.5m |
36.15kg |
| 1120mm |
0.90mm |
1.5m |
40.50kg |
| 1250mm |
0.90mm |
1.5m |
45.30kg |
Double Swage / Outturned Stiffining corrugation added on all these sizes.
