Description
Product Overview

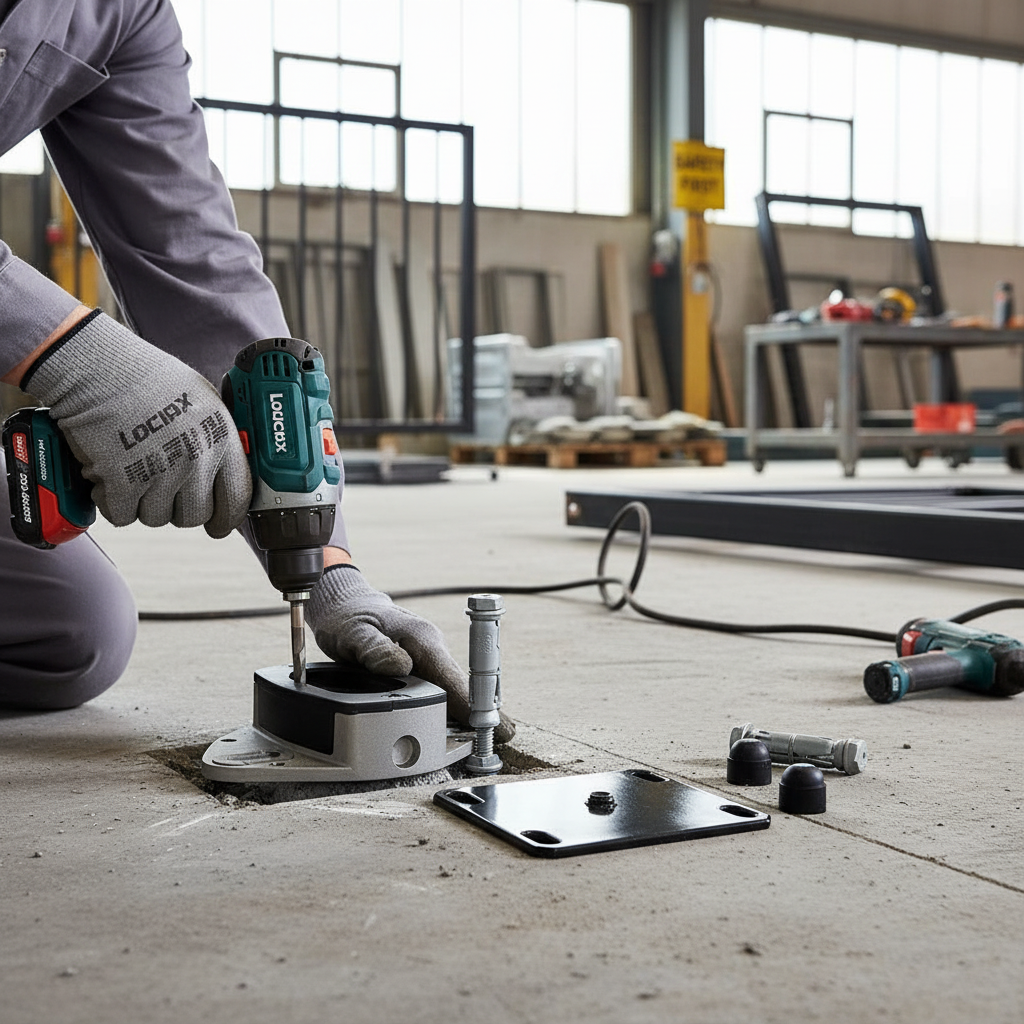

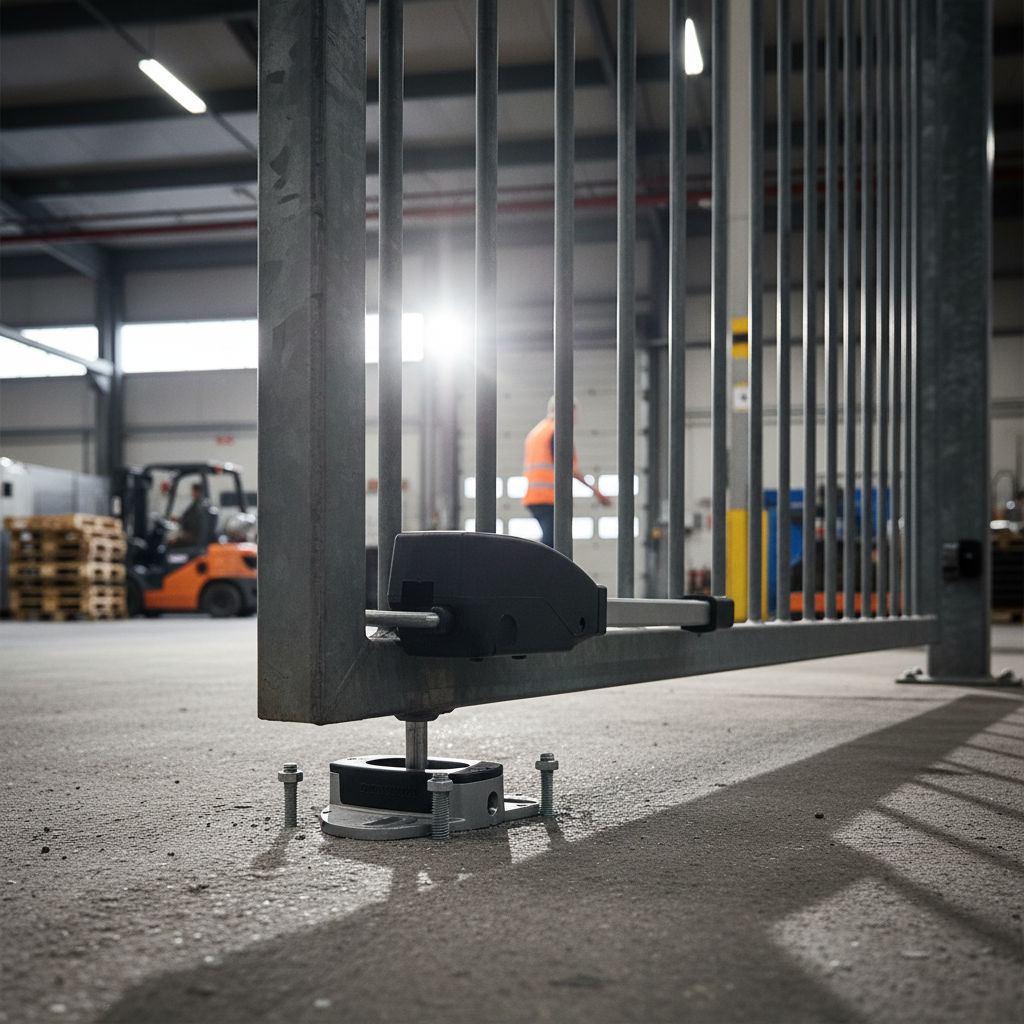

This ground mounting kit is an optional set designed for fixing gate closers directly to the ground. It includes a robust ground hinge and a wall panel, complete with all necessary fixations for secure installation.
Features
- Wall plate constructed from hot-dip galvanized metal with a durable powder coating for long-lasting protection.
- Bottom hinge fixation block made of high-quality aluminum, ensuring strength and reliability.
- All anchor bolts required for installation are included.
- Adjustable distance between the gate and wall: minimum 29 mm to maximum 54 mm.
- Depth adjustment capability of 15 mm for precise fitting.
- Height adjustment of 10 mm for optimal alignment.
- Minimal opening clearance under the gate: 22.5 mm.
- Designed exclusively for compatibility with specific gate closers.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Distance between gate and wall | 29 mm - 54 mm |
| Depth adjustment | 15 mm |
| Height adjustment | 10 mm |
| Minimal opening under the gate | 22.5 mm |
| Weight | 1.31 kg |
| Length | 100.0mm |
| Width | 95.0mm |
| Depth | 70.0mm |
Technical Specifications
- Material of wall plate: Hot-dip galvanized metal with powder coating (RAL9005)
- Material of bottom hinge fixation block: Aluminum
- Includes anchor bolts for installation
- Compatible only with specific gate closers
Frequently Asked Questions
1. What materials are used in the mounting kit?
The mounting kit features a wall plate made of hot-dip galvanized metal and a bottom hinge fixation block made of aluminum.
2. What is the maximum distance between the gate and wall?
The maximum distance is 54 mm, allowing for adjustable fitting based on your installation needs.
3. Is the kit compatible with all gate closers?
No, this kit is specifically designed for compatibility with certain gate closers only.
