Description
Product Overview

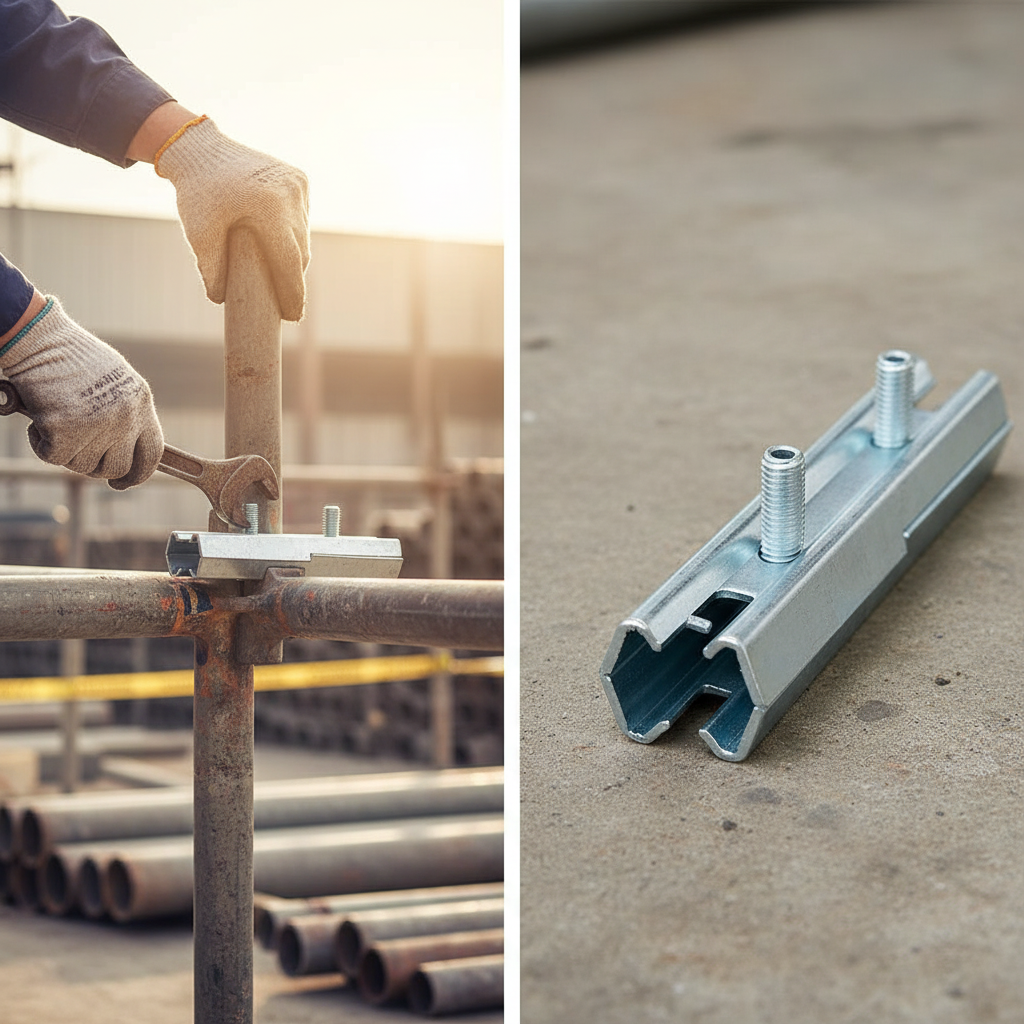

The Premium Double Screw Splice Lock is specifically designed to suit 48.3mm tubes with a wall thickness of 2.6 - 4.0mm. Constructed from the highest quality pressed steel, this splice lock features a zinc plated finish that effectively prevents corrosion, ensuring longevity and reliability in various applications.
Key Features
- Designed for 48.3mm diameter tubing
- Wall thickness compatibility: 2.6 - 4.0mm
- Manufactured from high-quality pressed steel
- Zinc plated finish for enhanced corrosion resistance
- Ideal for handrails, guardrails, and street furniture
Benefits
This splice lock offers the most effective and convenient method for butt joining tubular railings of the same diameter. The internal expansion connectors are engineered to provide a non-slip joint that is completely flush and virtually unnoticeable, maintaining the aesthetic appeal of your installations.

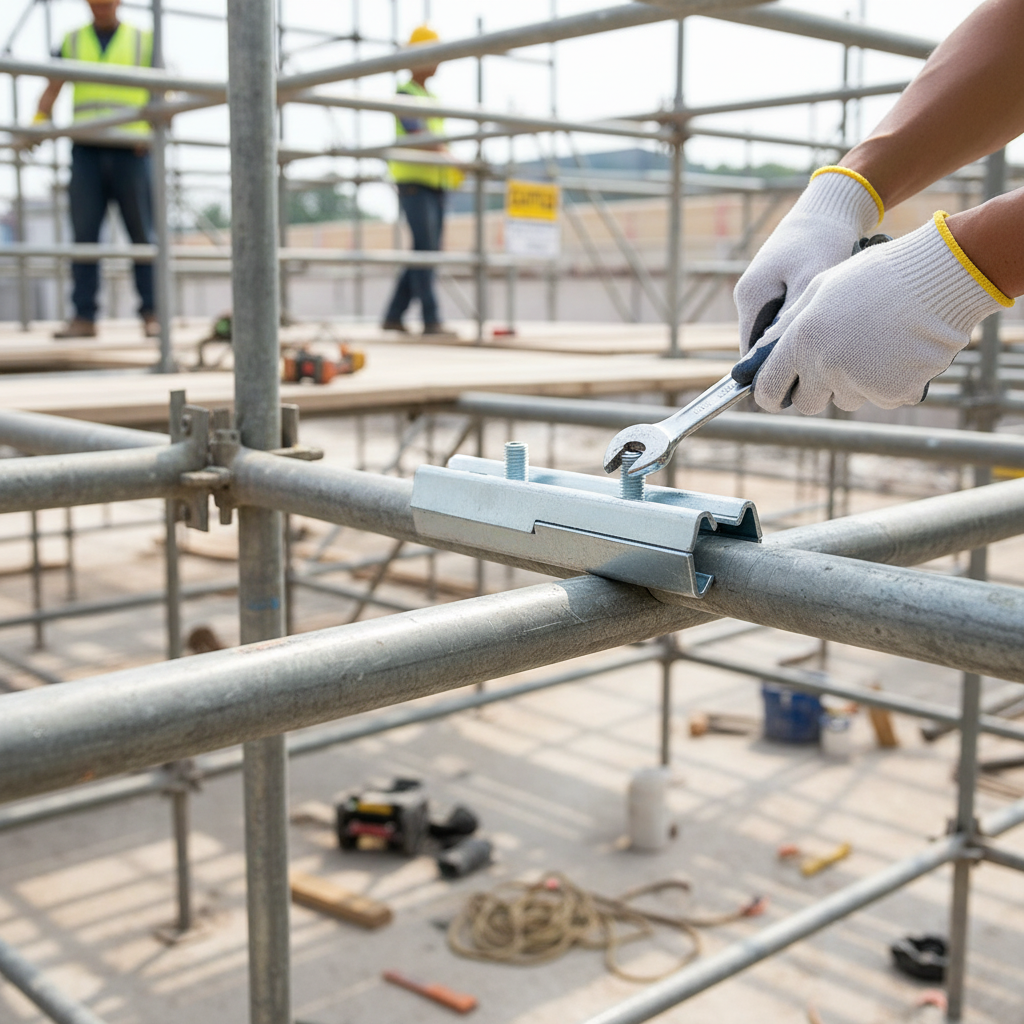

With a unique design, the splice lock can be inserted into the tube without the two halves separating. Once the allen screw is tightened, the splice lock contacts the tube internally at four critical points along its full length, ensuring perfect alignment and maximum strength.
These splice locks enable easy on-site joints and are particularly suited for situations where aesthetics and durability are of prime importance, making them the preferred choice for contractors and builders alike.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Diameter | 48.3mm |
| Wall Thickness | 2.6 - 4.0mm |
| weight | 0.33 kg |
| length | 153.0mm |
| width | 36.0mm |
| depth | 30.0mm |
| material | Mild Steel |
| material finish | Zinc Plated |
Applications
Typical uses for the Premium Double Screw Splice Lock include:
- Handrails
- Guardrails
- Street Furniture
FAQs
Q: Can the splice lock be used with different diameter tubes?
A: No, the splice lock is designed to join only the same size diameter tubing.
Q: Is the zinc plated finish durable?
A: Yes, the zinc plating provides excellent corrosion resistance, making it suitable for outdoor use.
Q: How is the splice lock installed?
A: Simply insert the splice lock into the tube and tighten the allen screw to secure it in place.
