Description

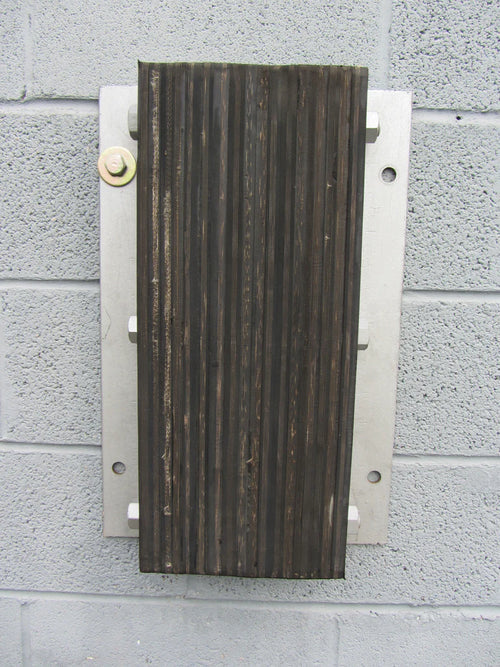

A short bumper only protects the height it covers. Trailer beds vary, and a trailer rises and drops as it is loaded, so a contact point that suits one vehicle can miss the next. This long laminated dock bumper gives you 600mm of rubber to work with. It measures 600 x 380 x 105mm overall, weighs 28kg and is built from layers of conveyor belt held between two steel brackets, with four fixing holes ready for your anchors. It suits busy loading bays, warehouse doors and goods-in docks that see a mix of vehicles.
Why a long laminated bumper works
More rubber where the vehicle lands. Fitted upright, the 600mm length covers twice the height of a 300mm bumper. That gives a better chance of the trailer meeting rubber and not your wall, whichever vehicle backs in.
The plies take the knock on edge. The block is a stack of conveyor belt layers standing on edge, with those edges facing the vehicle. Conveyor belt is rubber reinforced with textile fabric, so each layer is tough in its own right, and the stack can take a lot of force without being damaged.
Two steel brackets hold it all together. Three bolts pass through the stack and hold it in a steel frame with a bracket on each side. Each bracket has a foot about 65mm wide with two fixing holes, so you fix through the steel and not through the rubber. Your wall fixings sit either side of the 250mm block, clear of the rubber that the vehicle touches.
It stands 105mm off the wall. That stand-off sets how far a trailer stops from your dock face, and it gives the rubber room to do its job before anything reaches the concrete or the leveller.
Replacement is simple. A worn bumper comes off at its four fixings and a new one goes on in the same holes. That is a far smaller job than repairing a broken dock edge or a bent leveller frame.
No compression or load figure is published for this line. If your specification needs one, call us before you order.
Where it is used
You will find bumpers like this on warehouse and distribution centre loading docks, at supermarket and cold store goods-in doors, on manufacturing dispatch bays and in parcel depots. It suits sites that take artics and rigid lorries at the same door, where bed heights differ. If you have limited wall beside the leveller, or trailers that rub up and down hard during loading, look at the options below.
Specifications
| What you get | One laminated dock bumper in its steel frame |
|---|---|
| Overall size | 600 x 380 x 105mm, including both bracket feet |
| Rubber block | 600 x 250mm, with a foot about 65mm wide each side |
| Weight | 28kg |
| Rubber | Laminated rubber conveyor belt, multi-ply rubber and textile |
| Brackets | Steel, one each side of the block |
| Clamping bolts | Three through the block |
| Fixing holes | Four, about 20mm, two in each foot, about 100mm in from each end |
| Stand-off from wall | 105mm |
| Colour | Black rubber, grey steel |
| Wall fixings | Not listed as part of this item |
| Load rating | Not published for this line |
Is this the right bumper?
| Your situation | Choose |
|---|---|
| A busy door that takes a mix of vehicles | This 600 x 380 x 105mm bumper |
| A single door with limited wall, or a tighter budget | 300 x 380 x 105mm laminated bumper |
| The longest laminated option | 900 x 400 x 105mm laminated bumper |
| A busy HGV bay where trailers rub up and down | 750 x 250 x 115mm bumper with a low friction face |
| Several doors, or spares to hold on site | Call us and we will go through the quantities |
Measure before you order. You need 380 x 600mm of clear, sound surface, because both feet sit flat on the wall. Check that the 105mm stand-off matches any other bumpers on the same dock, because the one that stands furthest out takes the contact first.
Fitting and care
Most docks use one bumper each side of the opening, set at trailer bed height. Mark out from the dimension drawing in the gallery, then offer the bumper up and check its four holes against your marks before you drill. Choose anchors to suit the holes of about 20mm and fix into sound concrete or structure. Have a competent installer confirm that the wall and anchors suit the loads at your dock, because a bumper can only pass on what its fixing point can take. At 28kg, plan on two people to lift and hold it while you fix it.
Check the rubber, bolts and fixings during your routine dock inspections, and replace the bumper once the plies are badly torn or worn. A dock bumper protects the building and vehicle from routine contact. It is not a vehicle restraint and does not replace wheel chocks or a banksman.
Frequently asked questions
Is the price for one bumper or a pair?
The price shown is for one bumper. Most doors use one each side, so add a quantity of 2 if you are protecting both sides of a bay.
Are fixings included?
The steel brackets and the three clamping bolts are part of the bumper. Wall anchors are not listed as part of this item, because the right ones depend on what you are fixing to. Call us if you want to talk it through before you order.
Does it fit upright or on its side?
Most docks fit it upright for the extra height. The four holes are in the two long feet, so it can be fixed either way round. Check the holes against your wall before you drill.
Is it solid rubber?
No, and that is the point of this design. It is built from layers of conveyor belt, which is rubber reinforced with textile fabric. The textile edges can look frayed as the bumper wears. That is normal for this type of bumper.
Ordering and delivery
Add the quantity you need at the top of the page. Orders placed before 2pm, Monday to Friday, are dispatched the same day by Express UK Delivery. For a whole site or several doors, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will go through it with you.
Product details
Poly Laminated Rubber Dock Bumper | 600 x 380 x 105mm | Heavy Duty Loading Bay Protection
This poly laminated rubber dock bumper | 600 x 380 x 105mm | heavy duty loading bay protection is engineered for heavy-duty loading dock environments, protecting dock walls, levellers, and vehicle bodywork from the repeated impact of reversing HGVs, vans, and trailers. Built from poly laminated rubber (multi-ply rubber & textile), it delivers outstanding energy absorption, long service life, and all-weather performance in UK loading bay conditions.
Technical Specifications
| Property | Value |
|---|---|
| Dimensions | 600mm (W) x 380mm (H) x 105mm (D) |
| Weight | ~28kg (est.) |
| Material | poly laminated rubber (multi-ply rubber & textile) |
| Colour | Black |
| Fixing | Bolt-through wall mounting |
| SKU | IND_SPC50201 |
Key Features
- Heavy Impact Absorption — Absorbs and dissipates kinetic energy from reversing vehicles, protecting your dock structure and vehicles
- Long Service Life — poly laminated rubber (multi-ply rubber & textile) construction is designed for millions of compression cycles without cracking or permanent deformation
- All-Weather Performance — Rubber is unaffected by rain, frost, UV, and temperature extremes common in UK dock environments
- Low Maintenance — No moving parts. Simply bolt to the wall and leave
- Protects Building & Vehicles — Prevents structural damage to dock walls and costly chassis/bodywork damage to delivery vehicles
- Easy Installation — Standard bolt-through fixing to concrete or steel dock structure
Applications
- Warehouse and distribution centre loading docks
- Supermarket, retail depot and cold storage bays
- Food processing and manufacturing facilities
- Courier and parcel depot loading areas
- Agricultural buildings and farm storage
Installation Guide
Mount in pairs either side of the dock opening at trailer bed height (approx. 1200–1300mm from ground for standard UK trailers). Use M16 or M20 through-bolts into a suitable substrate. Inspect every 6 months on high-traffic docks (20+ movements/day).
Express UK delivery. For bulk quantities contact our team.
