Description
Industrial Grade Rubber Sheet – Heavy-Duty Custom Cut Lengths
Premium natural rubber sheeting engineered for demanding industrial environments. Exceptional strength, chemical resistance, and flexibility for machinery lining, flooring, gaskets, and protective barriers. Available in 1.4m width, 1.5mm to 25mm thickness, custom cut to your exact requirements.
Professional Performance Features
- Heavy-Duty Natural Rubber: Premium grade natural rubber delivers exceptional tensile strength, tear resistance, and impact absorption – outperforms synthetic alternatives in demanding applications
- Chemical Resistance: Resists mild organic acids, ketones, aldehydes, and detergents – suitable for workshop environments, food processing (non-contact), and light chemical exposure
- Abrasion & Wear Resistant: High-density rubber construction withstands constant friction, foot traffic, and equipment movement without degradation or surface wear
- Custom Cut to Length: Sold by the linear metre (1m minimum) – order exactly what you need with zero waste and no excess cost
- 13 Thickness Options: 1.5mm to 25mm range covers light-duty gaskets through heavy-duty flooring and vibration isolation applications
- Easy to Fabricate: Cuts cleanly with standard tools (knife, shears, or guillotine) – simple to install without specialist equipment or training
- Temperature Stable: Maintains flexibility and performance from -20°C to +70°C – suitable for indoor and semi-outdoor UK applications
Technical Specification
| Property | Specification |
|---|---|
| Material | Commercial-grade natural rubber (NR) |
| Width | 1.4 metres (1400mm) – fixed width |
| Thickness Options | 1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm |
| Length | Custom cut (minimum 1 metre, maximum 10 metres per piece) |
| Finish | Smooth both sides |
| Colour | Black |
| Hardness | 60 ± 5 Shore A |
| Tensile Strength | ≥10 MPa (BS ISO 37) |
| Elongation at Break | ≥300% (BS ISO 37) |
| Tear Resistance | ≥25 kN/m (BS ISO 34) |
| Abrasion Resistance | ≤200 mm³ volume loss (BS ISO 4649) |
| Temperature Range | -20°C to +70°C continuous service |
| Chemical Resistance | Mild organic acids, ketones, aldehydes, detergents |
| Not Suitable For | Fuel immersion, strong acids/alkalis, ozone exposure |
| Density | 1.15 ± 0.05 g/cm³ |
| Flammability | Standard grade (not fire-rated) |
Thickness Selection Guide
| Thickness | Weight (per m²) | Typical Applications |
|---|---|---|
| 1.5mm | 1.7 kg | Light gaskets, seals, protective wrapping |
| 2mm | 2.3 kg | Gaskets, table protection, drawer liners |
| 3mm | 3.5 kg | Workbench matting, equipment pads, gaskets |
| 4mm | 4.6 kg | Workshop flooring, anti-slip matting, vibration pads |
| 5mm | 5.8 kg | Machinery flooring, loading bay protection |
| 6mm | 6.9 kg | Heavy-duty flooring, equipment mounting pads |
| 8mm | 9.2 kg | Industrial flooring, vibration isolation, impact protection |
| 10mm | 11.5 kg | Heavy machinery mounting, severe vibration isolation |
| 12mm | 13.8 kg | Extreme vibration isolation, heavy impact protection |
| 15mm | 17.3 kg | Compressor pads, press mounting, severe impact zones |
| 20mm | 23.0 kg | Heavy plant mounting, extreme vibration/impact isolation |
| 25mm | 28.8 kg | Maximum isolation, heavy press mounting, extreme applications |
Weights are approximate. Actual weight may vary ±5% due to manufacturing tolerances.
Typical Applications
- Machinery and equipment lining and protection
- Workshop and factory floor matting
- Anti-vibration pads and mounting isolators
- Gasket cutting and seal fabrication
- Agricultural and construction site protection
- Protective barriers and impact shields
- Loading bay and dock protection
- Workbench and table surface protection
- Conveyor belt repair and patching
- Sound dampening and acoustic barriers
- Electrical insulation matting (non-rated)
- Gym and fitness equipment flooring

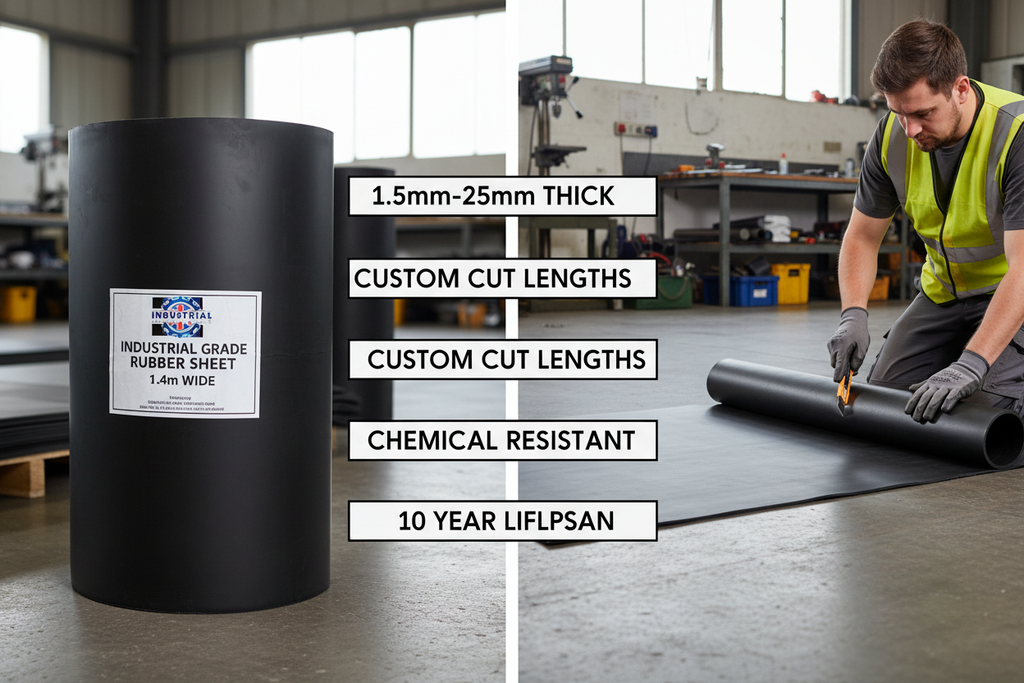

Cutting & Installation Guide
- Measure & Plan: Measure your area accurately. Add 50-100mm to length for trimming allowance. For flooring, plan seam locations to minimise waste.
- Acclimatise Material: Unroll rubber and allow to acclimatise for 24 hours at room temperature (15-20°C) before cutting or installation. This prevents shrinkage or expansion after fitting.
- Cutting: For thin sheets (1.5-6mm): use sharp utility knife with straight edge. For thick sheets (8-25mm): use heavy-duty shears, guillotine, or bandsaw. Mark cutting lines with chalk or marker.
- Adhesive Selection: For permanent installation, use contact adhesive (e.g., Evo-Stik Impact) or rubber flooring adhesive. For temporary installation, use double-sided tape or leave loose-laid if area is enclosed.
- Surface Preparation: Clean substrate thoroughly – remove oil, grease, dust, and loose material. Surface must be dry, smooth, and structurally sound.
- Adhesive Application: Apply adhesive to both substrate and rubber backing. Allow to become touch-dry (10-15 minutes). Press firmly into place, working from centre outwards to eliminate air bubbles.
- Seam Joining: Butt edges tightly together – do not overlap. For critical applications, seal seams with rubber adhesive or silicone sealant.
- Curing: Allow adhesive to cure for 24 hours before heavy use. Avoid foot traffic during cure period.
Chemical Resistance Guide
| Chemical/Substance | Resistance | Notes |
|---|---|---|
| Water (fresh & salt) | ✓ Excellent | Suitable for wet environments |
| Mild acids (dilute) | ✓ Good | pH 4-6 acceptable |
| Mild alkalis (dilute) | ✓ Good | pH 8-10 acceptable |
| Detergents & soaps | ✓ Excellent | Suitable for cleaning areas |
| Alcohols | ✓ Good | Short-term exposure acceptable |
| Ketones | ~ Fair | Limited exposure only |
| Aldehydes | ~ Fair | Limited exposure only |
| Oils (vegetable) | ✓ Good | Suitable for food processing areas |
| Oils (mineral/petroleum) | ✗ Poor | Not suitable – use nitrile rubber |
| Fuels (petrol/diesel) | ✗ Poor | Not suitable – use nitrile rubber |
| Strong acids | ✗ Poor | Not suitable – use EPDM or neoprene |
| Strong alkalis | ✗ Poor | Not suitable – use EPDM |
| Ozone | ✗ Poor | Not suitable – use EPDM or neoprene |
Resistance ratings are for room temperature exposure. Contact technical support for specific chemical compatibility queries.
Performance & Compliance
Tensile Strength: ≥10 MPa per BS ISO 37 – significantly exceeds minimum requirements for commercial-grade rubber sheeting.
Elongation: ≥300% elongation at break per BS ISO 37 – excellent flexibility and tear resistance for demanding applications.
Abrasion Resistance: ≤200 mm³ volume loss per BS ISO 4649 – superior wear resistance for flooring and high-friction applications.
Tear Resistance: ≥25 kN/m per BS ISO 34 – resists propagation of cuts and tears under stress.
Food Contact: Suitable for indirect food contact applications (non-contact surface protection). Not certified for direct food contact.
Electrical Properties: Not electrically rated. For electrical insulation matting, specify BS EN 61111 certified product.
Maintenance & Longevity
Cleaning: Sweep or vacuum regularly to remove abrasive dirt. Mop with mild detergent solution. Avoid petroleum-based cleaners, strong solvents, or abrasive scrubbers.
Expected Lifespan: 5-10 years in typical workshop/industrial flooring use. 10-15 years for gaskets and static applications. 15-20 years for vibration isolation pads with minimal wear.
UV Protection: Natural rubber degrades under prolonged UV exposure. For outdoor use, apply UV-protective coating or use EPDM rubber alternative.
Storage: Store flat or loosely rolled in cool, dry location away from direct sunlight, ozone sources (electric motors), and petroleum products. Shelf life: 2 years from manufacture.
Why Natural Rubber vs Synthetic Alternatives?
- Superior Tensile Strength: Natural rubber offers 30-50% higher tensile strength than SBR (synthetic rubber) – critical for high-stress applications
- Better Tear Resistance: Exceptional resistance to tear propagation – cuts don't spread under load like synthetic alternatives
- Excellent Resilience: Superior bounce-back and energy absorption for vibration isolation and impact protection
- Lower Heat Build-Up: Generates less heat under flexing – longer lifespan in dynamic applications
- Better Low-Temperature Performance: Remains flexible down to -20°C vs -10°C for many synthetics
- Cost-Effective: Competitive pricing with superior performance for most industrial applications
How to Order
Step 1: Select thickness from dropdown (1.5mm to 25mm)
Step 2: Enter quantity as linear metres required (minimum 1m, maximum 10m per piece)
Step 3: For lengths over 10m, order multiple pieces (e.g., 15m = order 10m + 5m)
Example: For 1.4m wide x 5m long x 6mm thick = select "6mm" thickness, enter quantity "5"
Coverage: Each linear metre provides 1.4m² coverage (1.4m wide x 1m long)
Warranty & Delivery
Quality Guarantee: All rubber sheeting meets BS ISO standards for commercial-grade natural rubber. Guaranteed free from manufacturing defects.
UK Stock: Held in UK warehouse for fast dispatch. Most orders cut and ship within 1-2 working days.
Free Delivery: Free UK mainland delivery on orders over £100. Express and timed delivery options available.
Custom Cutting: All sheets custom cut to your specified length – cutting tolerance ±10mm.
Technical Support & Custom Solutions
Our rubber materials specialists provide free technical support:
- Material selection advice for specific applications
- Chemical compatibility assessment
- Thickness and specification recommendations
- Cutting and installation guidance
- Adhesive selection and application advice
- Bulk pricing for large projects (50m+)
- Custom widths and specifications (minimum order quantities apply)
Frequently Asked Questions
- What thickness do I need for workshop flooring?
- For light workshop use (foot traffic, light equipment): 3-4mm. For standard workshop (machinery, trolleys): 5-6mm. For heavy industrial (forklifts, heavy equipment): 8-10mm. Thicker sheets (12-25mm) are for vibration isolation and equipment mounting, not general flooring.
- Can I use this for outdoor applications?
- Natural rubber degrades under prolonged UV exposure and is best suited for indoor or covered outdoor use. For fully exposed outdoor applications, we recommend EPDM rubber which offers superior UV and ozone resistance. Contact us for EPDM alternatives.
- Is this suitable for fuel or oil environments?
- No. Natural rubber is not resistant to petroleum products (oils, fuels, greases). For oil/fuel resistance, use nitrile rubber (NBR) which offers excellent petroleum resistance. Contact us for nitrile rubber sheeting alternatives.
- How do I cut thick rubber (10mm+)?
- For sheets 10mm and thicker, use heavy-duty shears, guillotine, or bandsaw. A sharp utility knife works for thin cuts but requires multiple passes. For clean, straight cuts on thick material, we recommend professional cutting tools or contact us for pre-cut pieces to exact dimensions.
- Can I glue this to concrete?
- Yes. Use contact adhesive (Evo-Stik Impact or similar) or specialist rubber flooring adhesive. Clean concrete thoroughly, apply adhesive to both surfaces, allow to become touch-dry, then press firmly into place. For permanent installation, full adhesive coverage is recommended. For temporary installation, use double-sided tape or leave loose-laid.
- What's the difference between natural and synthetic rubber?
- Natural rubber offers superior tensile strength, tear resistance, and resilience compared to SBR (synthetic rubber). It's better for high-stress applications, vibration isolation, and impact protection. However, natural rubber has poor oil/fuel resistance and UV resistance. Synthetic rubbers (nitrile, EPDM, neoprene) offer better chemical and weather resistance for specific applications.
- Can I use this as electrical insulation matting?
- This is standard commercial-grade rubber, not electrically rated. For electrical insulation matting, you must use BS EN 61111 certified electrical safety matting with appropriate voltage rating. Contact us for certified electrical insulation matting.
- How much does it weigh?
- Weight varies by thickness – see thickness guide table above. As a general guide: 3mm = 3.5 kg/m², 6mm = 6.9 kg/m², 10mm = 11.5 kg/m². For large orders, consider delivery logistics and handling requirements.
- Can I order custom widths?
- Standard width is 1.4m. Custom widths are available for large orders (minimum 50m+ total) – contact us for quotation. For narrower widths, we can slit standard 1.4m rolls to your required width (minimum order quantities apply).
- How do I calculate how much I need?
- Measure your area in metres (length x width). Divide width by 1.4m to determine how many strips you need. Multiply by length to get total linear metres. Add 10% for wastage and trimming. Example: 5m x 3m area = 3m ÷ 1.4m = 2.14 strips (round up to 3) × 5m length = 15 linear metres required.
