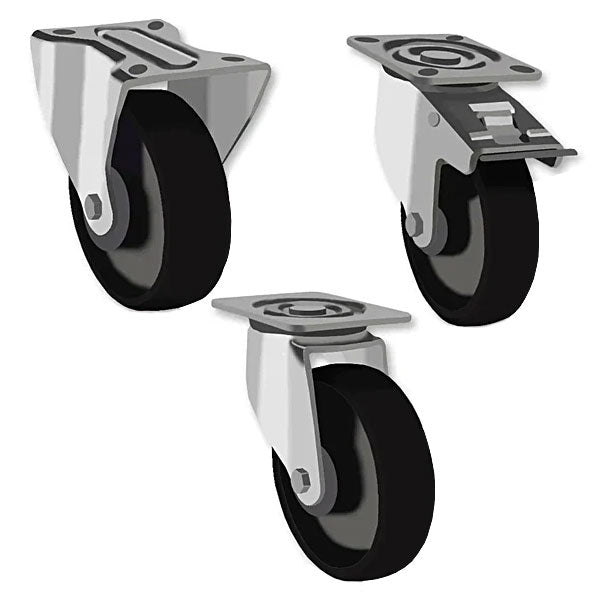

100mm Heavy Duty Swivel, Fixed & Braked Castors With Cast Iron & Ball Bearing Wheel

Product Description:

Introducing our 100mm Heavy Duty Swivel, Fixed, and Braked Castors with Cast Iron Wheels featuring ball bearings. These castors are designed for rugged floor conditions and high-temperature environments, providing durability and reliability in demanding industrial settings.

Key Features:

• Overall Height: Sturdy and compact with an overall height of 128mm, providing stability and maneuverability in various environments.

• Wheel Size and Tread Width: Equipped with 100mm wheel diameter and 34mm tread width, offering a balanced combination of load-bearing capacity and maneuverability.

• Wheel Type: Features Cast Iron Wheels with Ball Bearings, providing durability and reliability, especially in rugged floor conditions.

• Max Temperature: Capable of withstanding temperatures up to 150°C, suitable for high-temperature environments.

• Load Rating: Each castor boasts a load rating of 300kg, ensuring reliable performance under heavy loads.

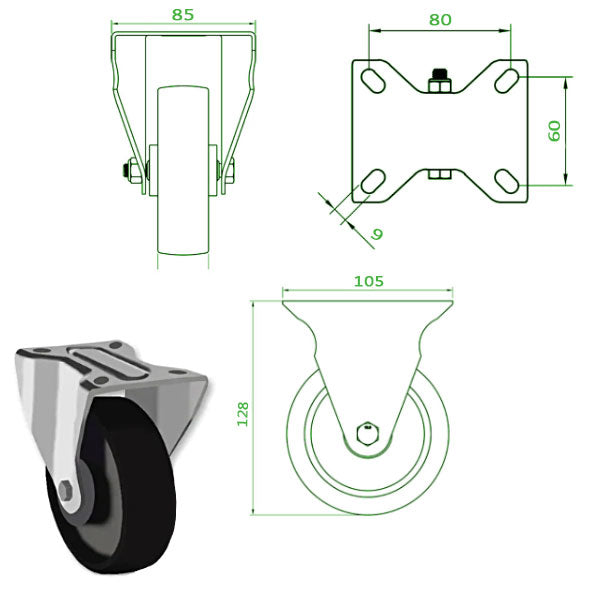

• Fixing Plate Size: The fixing plate size is 105 x 86mm, providing a secure attachment to equipment frames or bases.

• Bolting Centre and Bolt Size: Featuring a bolting centre of 80 x 60mm and an 8mm bolt size, providing stable installation and secure attachment.

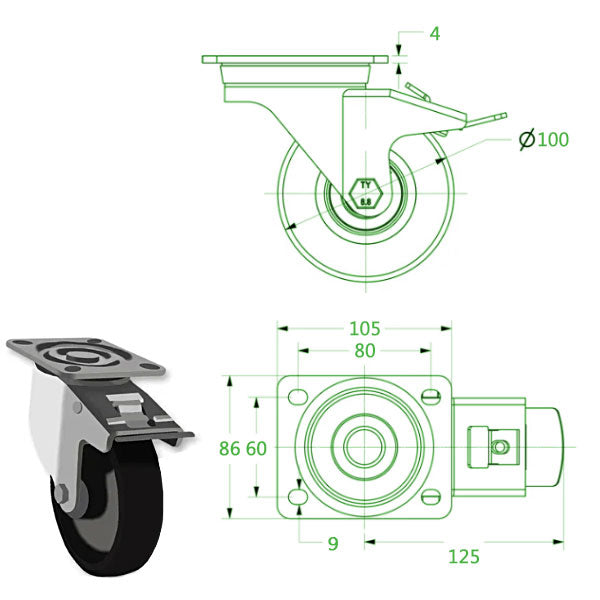

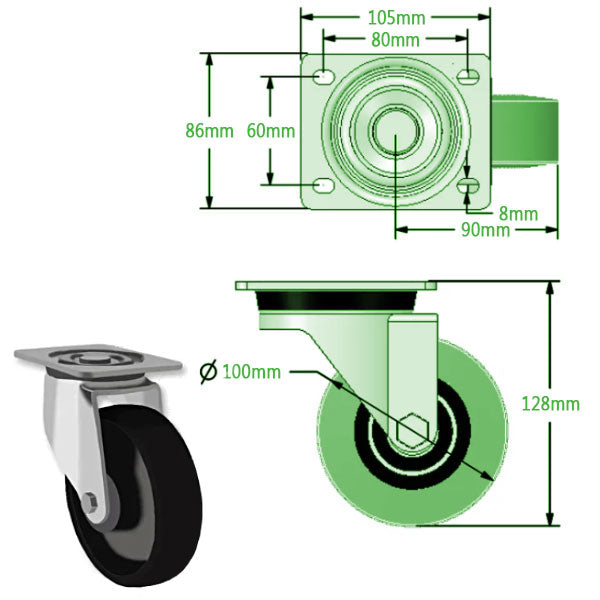

• Swivel and Braking Mechanism: The swivel castor has a swivel radius of 90mm, offering agile maneuverability. The braked castor has a swivel radius of 125mm when the brake is engaged, ensuring stable positioning.

Applications:

These castors are ideal for various industrial applications, including:

• Material handling equipment
• Machinery and workstations
• Carts and trolleys
• Industrial racks and shelving

Durability and Performance:

Constructed from high-quality materials, these castors are built to withstand rugged floor conditions and high temperatures, ensuring durability, stability, and long-lasting performance.

Enhance Mobility and Efficiency:

Upgrade your industrial equipment or facility with these 100mm Heavy Duty Castors to enhance mobility, efficiency, and safety. The Cast Iron Wheels with Ball Bearings provide smooth operation and reliable traction, even under heavy loads and challenging conditions.

Installation and Compatibility:

With a fixing plate size designed for easy installation and compatibility with various equipment frames and bases, these castors offer a versatile solution for enhancing mobility in industrial applications.

Conclusion:

Experience the durability and reliability of our 100mm Heavy Duty Swivel, Fixed, and Braked Castors with Cast Iron Wheels. Whether you're maneuvering heavy machinery or transporting materials in rugged environments, these castors provide the reliability and performance required for efficient operation.

Lead Time 3 To 5 Working Days
Note: Price is for 1 castor wheel only and not for a pair
