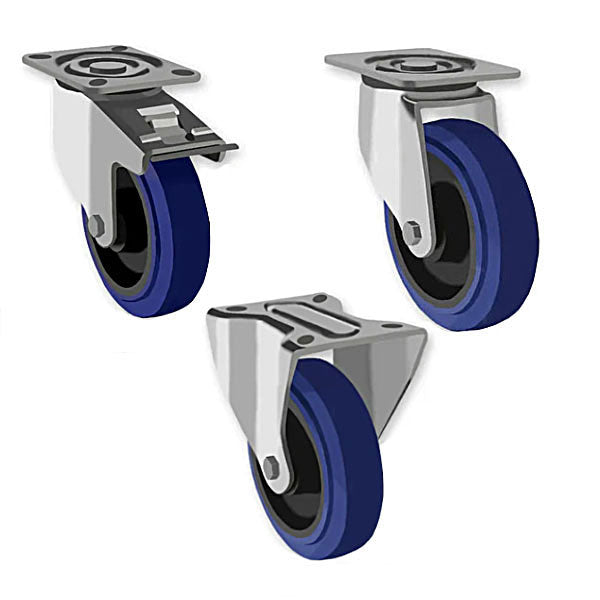

200mm Swivel, Fixed & Braked Castors with Blue Elastic Rubber Tyred Wheel Total Stop Brake 400kg Load Capacity

Features:

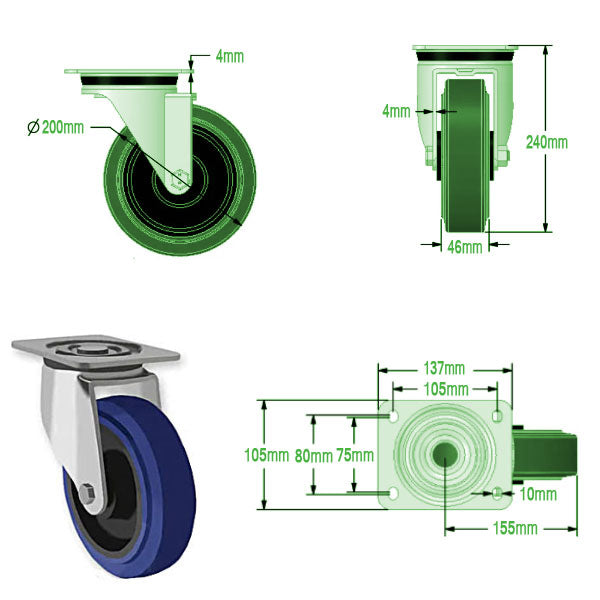

1. Overall Height: With a height of 240mm, these castors provide substantial ground clearance while maintaining stability under heavy loads.
2. Wheel Size: Equipped with large 200mm wheels, these castors ensure smooth movement and stability across various surfaces.
3. Tread Width: The 46mm tread width enhances traction and stability, reducing the risk of slippage.
4. Wheel Type: Featuring Blue Rubber Tyres with Bearings, these castors offer durability and efficient rolling motion.
5. Load Rating: With a high load capacity of 400kg, these castors can support heavy loads effectively.

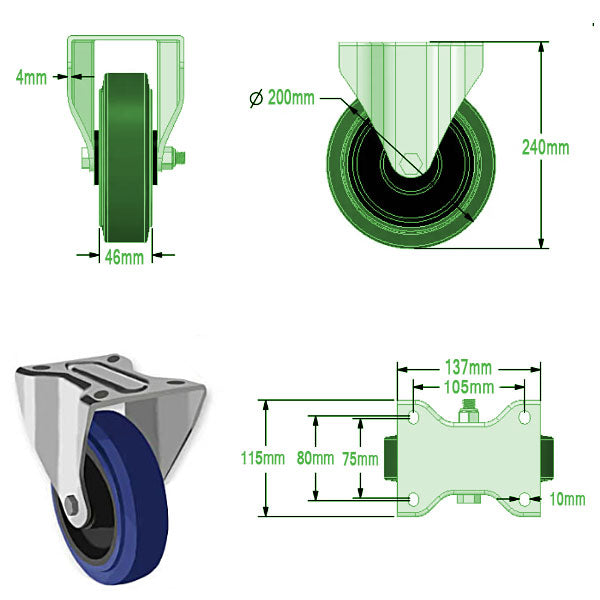

6. Fixing Plate Size: The fixing plate measures 137x105mm for fixed castors and 137x115mm for swivel castors, providing a sturdy attachment point for stability.
7. Bolting Centre: The bolting center is 105x80mm, ensuring compatibility with standard mounting configurations for easy installation.
8. Bolt Size: Designed to accommodate 10mm bolts, facilitating robust and secure fastening.

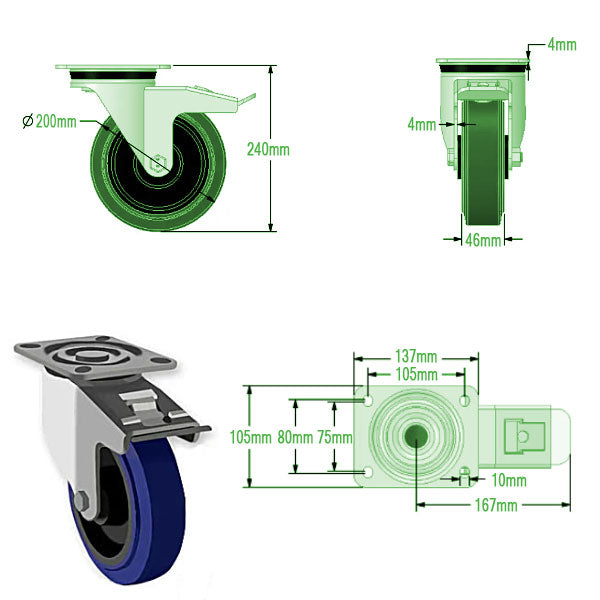

9. Swivel Radius: The swivel castors offer a swivel radius of 155mm, allowing for smooth and agile maneuverability. The braked castors feature a swivel radius of 167mm, providing stability when locked in place.

Application: These castors are suitable for a wide range of heavy-duty applications, including:

• Industrial machinery
• Material handling equipment
• Heavy furniture and fixtures
• Mobile carts and platforms

Durability and Performance:

• Constructed with high-quality materials and bearings, these castors ensure long-lasting performance and smooth rolling motion.

Safety and Reliability:

• The Total Stop Brake system offers enhanced safety by locking both the wheel and swivel movement simultaneously, providing stability when needed.
• Tested for quality and compliance with industry standards, these castors provide reliability in various applications.

Note: Price is for 1 castor wheel only and not for a pair
