200mm Extra Heavy Pressed Steel Swivel, Fixed & Total Stop Swivel/Brake Castors Cast Iron Ball Bearing Bore

200mm Extra Heavy Duty Pressed Steel Castor – 800kg Load Capacity

Need industrial-strength mobility for heavy machinery? Our 200mm Extra Heavy Pressed Steel Castor delivers 800kg load capacity per wheel – the professional choice for heavy industrial equipment, machinery, and material handling applications.

⚠️ UK Stock – Swivel, Fixed & Braked Options | 3-5 Day Lead Time | Trade Pricing Available

✓ Why This is the Ultimate Heavy-Duty Castor

• Massive 800kg Load Capacity Per Castor
  Each wheel supports up to 800kg (3,200kg for 4-castor equipment). Engineered for the heaviest industrial applications.
• Cast Iron Wheel with Sealed Ball Bearings
  Durable cast iron construction with precision ball bearings ensures smooth rolling even under extreme loads.
• Extra Heavy Pressed Steel Bracket
  Reinforced pressed steel construction with swivel ball bearings. Built to withstand heavy industrial use.
• BZP Corrosion-Resistant Finish
  Bright Zinc Plating (BZP) provides excellent corrosion resistance, even in harsh industrial environments.
• 200mm Wheel Diameter
  Large wheel size rolls easily over uneven floors, debris, and obstacles. Reduces rolling resistance.

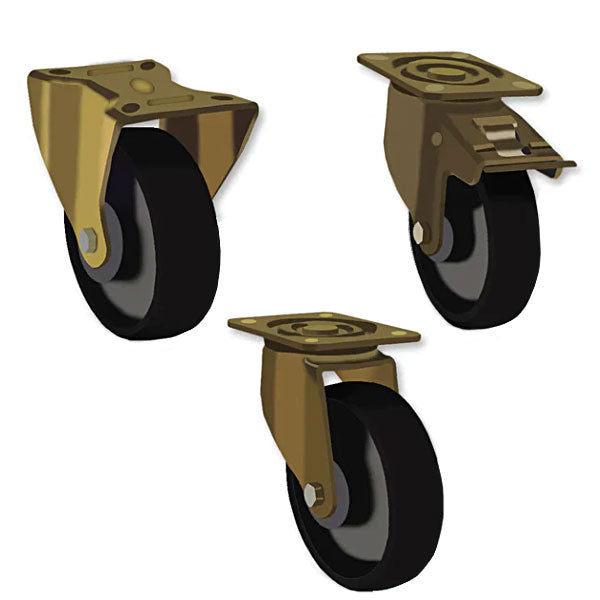

• Three Configuration Options
  Available as swivel, fixed, or total stop swivel/brake to suit your exact application requirements.
• Robust 135 x 110mm Fixing Plate
  Large fixing plate with 105 x 80mm bolt centres provides secure, stable attachment to heavy equipment.

Perfect For Heavy Industrial Applications

Material Handling:

• ✓ Heavy-duty industrial trolleys and carts
• ✓ Material handling equipment
• ✓ Pallet trucks and transporters
• ✓ Warehouse equipment

Manufacturing:

• ✓ Machinery and workstations
• ✓ Production line equipment
• ✓ Assembly stations
• ✓ Heavy tooling and jigs

Workshop & Maintenance:

• ✓ Engine hoists and lifts
• ✓ Heavy-duty workbenches
• ✓ Tool cabinets and storage
• ✓ Welding tables and equipment

Technical Specifications

Configuration Options

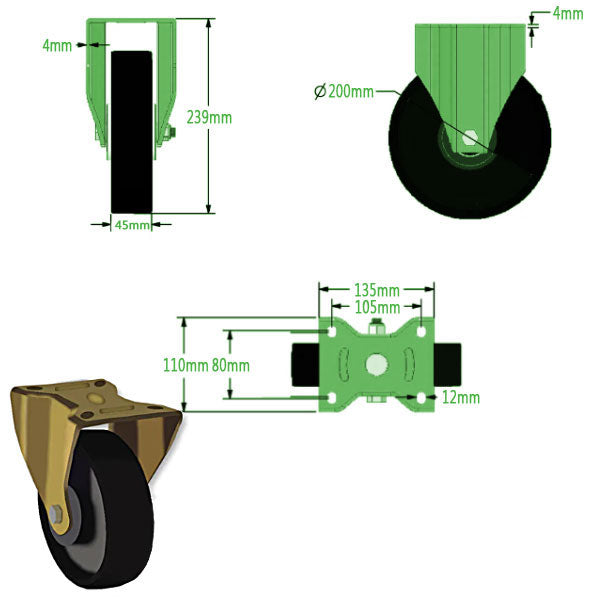

Fixed Castor (£129.06):

• ✓ Wheel locked in forward position
• ✓ Provides directional stability
• ✓ Ideal for rear wheels on trolleys
• ✓ Prevents unwanted turning

Swivel Castor (£148.57):

• ✓ 360° rotation for maximum manoeuvrability
• ✓ Ideal for front wheels on trolleys
• ✓ Easy directional changes
• ✓ Smooth swivel action with ball bearings

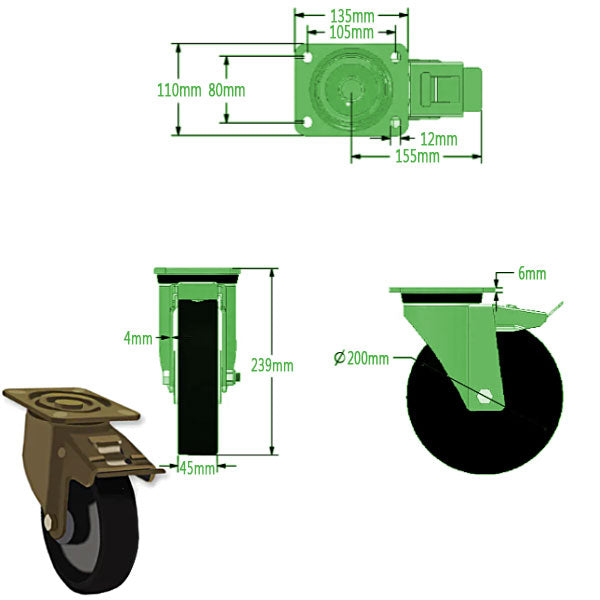

Total Stop Swivel/Brake (£169.06):

• ✓ Locks both swivel AND wheel rotation
• ✓ Complete immobilization when engaged
• ✓ Essential for stationary equipment
• ✓ Maximum safety and stability

For trolleys and carts, we recommend 2 fixed rear + 2 swivel front for optimal control.

Load Capacity Calculator

4-Castor Equipment: Maximum 3,200kg total load (800kg × 4)
6-Castor Equipment: Maximum 4,800kg total load (800kg × 6)
8-Castor Equipment: Maximum 6,400kg total load (800kg × 8)

Always distribute weight evenly across all castors. Add safety margin for dynamic loads and impacts.

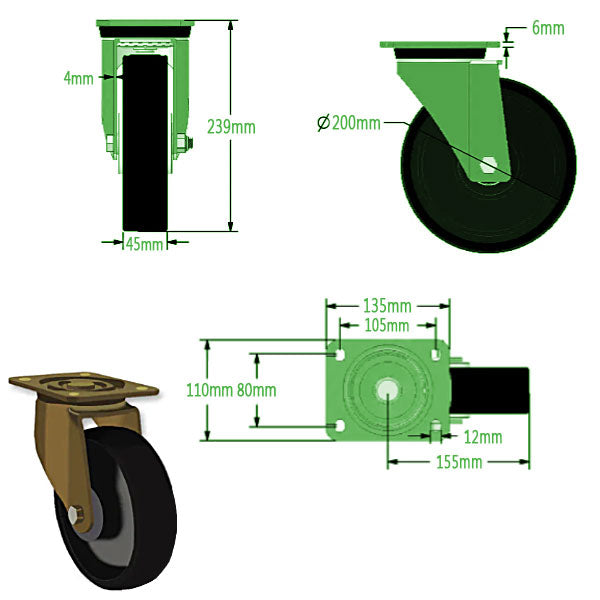

Installation Requirements

Fixing Plate: 135mm × 110mm
Bolt Centres: 105mm × 80mm
Bolt Size: M12 (12mm diameter)
Bolts Required: 4 per castor (not included)

Installation Steps:

1. Position castor on equipment frame
2. Mark 4 bolt hole positions (105 × 80mm centres)
3. Drill holes for M12 bolts
4. Secure with M12 bolts, washers, and nuts
5. Torque to manufacturer specifications

Ensure mounting surface is flat, level, and structurally sound to support the load.

Why Cast Iron Wheels for Heavy Loads?

vs Polyurethane Wheels:

• ✓ Higher load capacity (800kg vs 400-600kg)
• ✓ Better for extreme temperatures
• ✓ Won't deform under sustained heavy loads
• ✓ Longer lifespan in industrial environments

vs Rubber Wheels:

• ✓ Much higher load capacity
• ✓ Won't compress or flatten over time
• ✓ Better for rough, uneven floors
• ✓ Resistant to oils and chemicals

Cast iron is the industry standard for heavy-duty industrial castors.

Maintenance & Longevity

Sealed Ball Bearings: Pre-lubricated, maintenance-free design
Cleaning: Wipe clean periodically to remove debris
Inspection: Check bolts and fixings regularly for tightness
Lifespan: 10-15 years in typical industrial use

Sealed bearings protect against dust, dirt, and moisture – no greasing required.

Why Choose Our Extra Heavy Castors?

• ✓ 800kg load capacity – genuine industrial-grade performance
• ✓ Cast iron wheels with sealed ball bearings for durability
• ✓ Extra heavy pressed steel construction, not lightweight stamped steel
• ✓ BZP corrosion protection for long-term reliability
• ✓ Three configurations to suit any application
• ✓ UK stock with 3-5 day lead time
• ✓ Trade pricing available for bulk orders
• ✓ Proven in UK industry for decades

⚠️ 800kg Load Capacity | Industrial-Grade Quality | Price Per Single Castor

Don't risk equipment failure with underrated castors. Get industrial-strength mobility that's built to last.

Lead Time: 3-5 Working Days | Note: Price is for 1 castor only, not a pair or set.
