200mm Extra Heavy Duty Swivel, Fixed & Braked Castor Polyurethane / Cast Iron Wheel 1000kg Load Capacity

Our 200mm Extra Heavy Duty Swivel, Fixed & Braked Castor with Biscuit Colour Polyurethane / Cast Iron Wheel – a precision-manufactured product engineered for unparalleled performance and durability.

Key Features:

• Ultra High Static Load Rating: This castor is precision-manufactured, ensuring it benefits from an ultra-high static load rating. This feature guarantees exceptional strength and stability, making it suitable for handling heavy loads with ease.

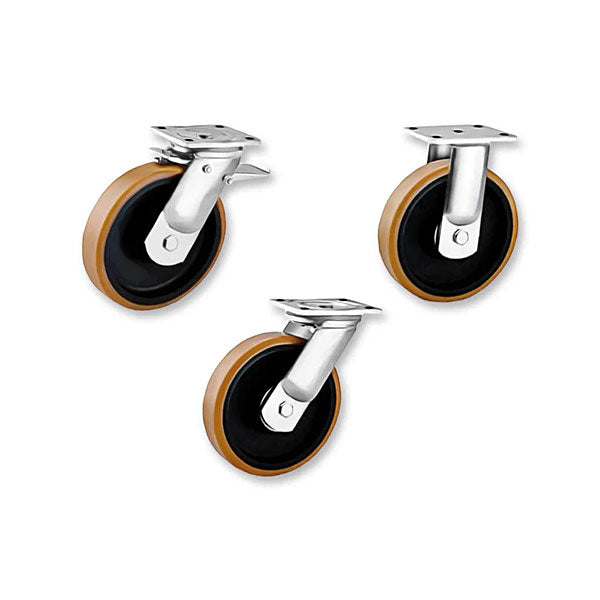

• Swivel, Fixed & Total Stop Braked Configuration: This versatile castor comes in a swivel, fixed, and total stop braked configuration, providing flexibility in maneuverability and the convenience of secure locking when needed.

• Extra Heavy Duty Fabricated Bracket: The castor is equipped with an extra heavy-duty fabricated bracket featuring a ball-bearing swivel head. This design enhances the overall durability and performance of the castor.

• Polyurethane / Cast Iron Wheel: The wheel boasts an extra heavy-duty Polyurethane tire on a cast iron center with ball bearings. This combination ensures smooth and quiet operation, excellent load-bearing capacity, and long-lasting performance.

• Bright Zinc Plated Finish: The bracket is finished with bright zinc plating, enhancing corrosion resistance and providing a sleek appearance.

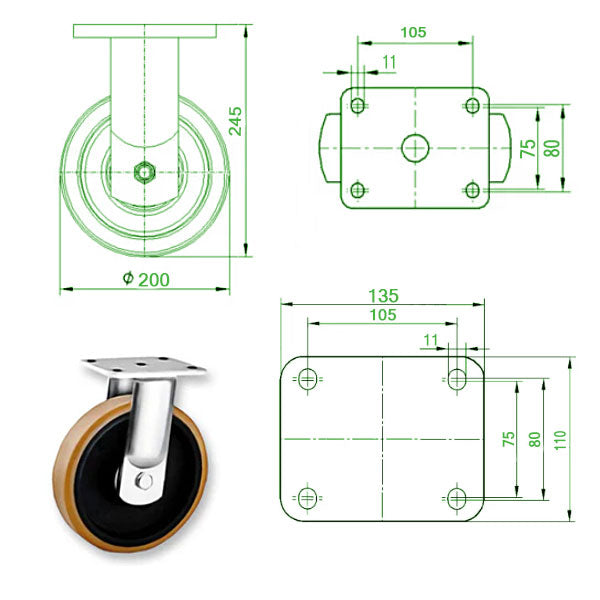

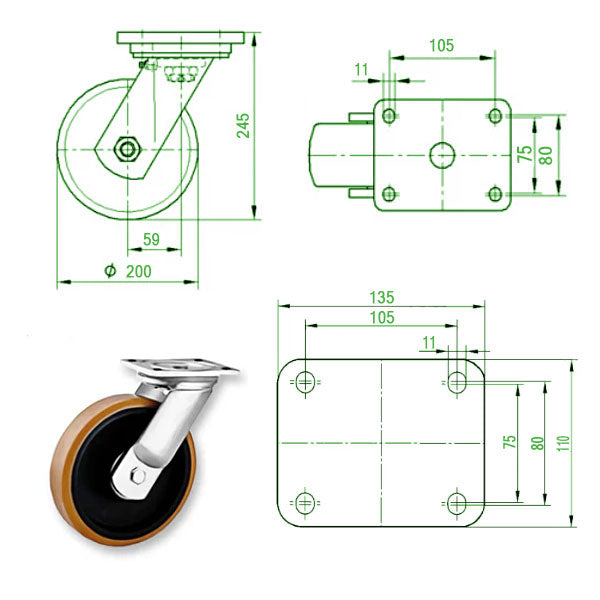

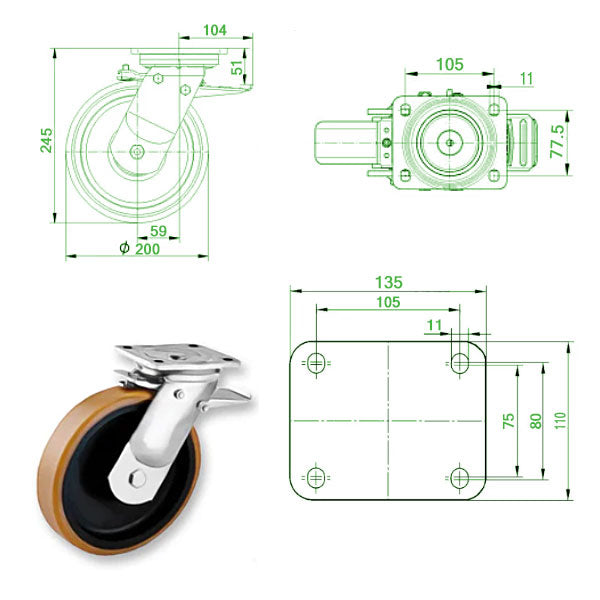

Specifications:

• Load Rating: 1000kg
• Overall Height: 245mm
• Wheel Size: 200mm
• Tread Width: 50mm
• Wheel Type: Biscuit Polyurethane Wheel with Ball Bearings
• Fixing Plate Size: 135 x 110mm
• Bolting Centres: 105 x 80/75mm
• Bolt Size: 10mm
• Swivel Radius:
  • Swivel: 159mm
  • Brake: 204mm

Application: Designed for extra heavy-duty applications, this castor is well-suited for industrial settings, manufacturing facilities, and environments where reliable and robust performance is crucial. The total stop brake feature provides added safety and stability during stationary periods.

Installation: The castor is equipped with a 4-bolt fixing plate for secure attachment. Follow the manufacturer's guidelines for proper installation to ensure optimal functionality and longevity.

Note: Price is for 1 castor wheel only and not for a pair
