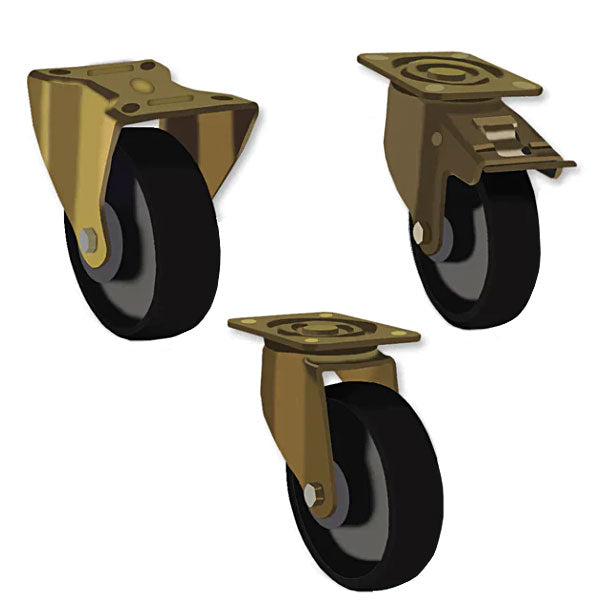

150mm Extra Heavy Pressed Steel Swivel, Fixed & Total Stop Swivel/Brake Castors Cast Iron Wheel Ball Bearing Bore

Product Description:

Introducing our 150mm Extra Heavy Pressed Steel Swivel, Fixed, and Total Stop Swivel/Brake Castors with Cast Iron Wheels featuring ball bearing bore. These castors are designed for heavy-duty industrial use, offering durability, stability, and corrosion resistance.

Key Features:

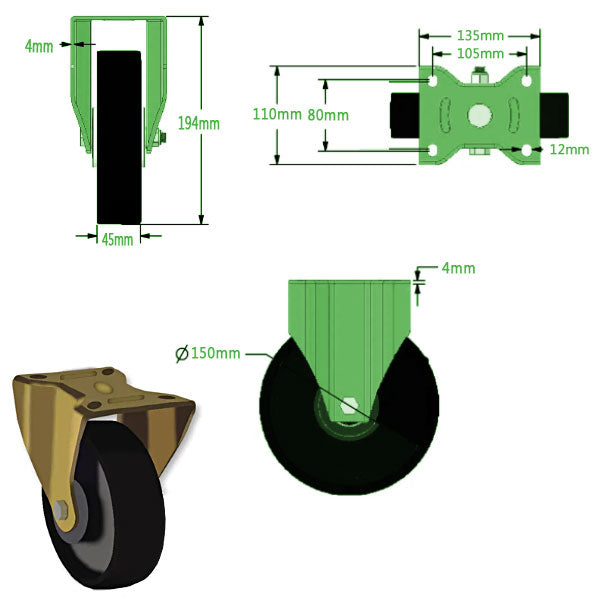

• Overall Height: Sturdy and robust with an overall height of 194mm, providing stability and reliability in heavy industrial environments.

• Wheel Size and Tread Width: Equipped with 150mm wheel diameter and 45mm tread width, offering substantial load-bearing capacity and stability.

• Wheel Type: Features Cast Iron Wheels with Sealed Ball Bearings, providing durability and reliability for heavy industrial use.

• Load Rating: Each castor boasts an impressive load rating of 800kg, ensuring reliable performance under heavy loads.

• Fixing Plate Size: The fixing plate size is 135mm x 110mm, offering a secure attachment to equipment frames or bases.

• Bolting Centre and Bolt Size: Featuring a bolting centre of 105 x 80mm and a 12mm (M12) bolt size, providing stable installation and secure attachment.

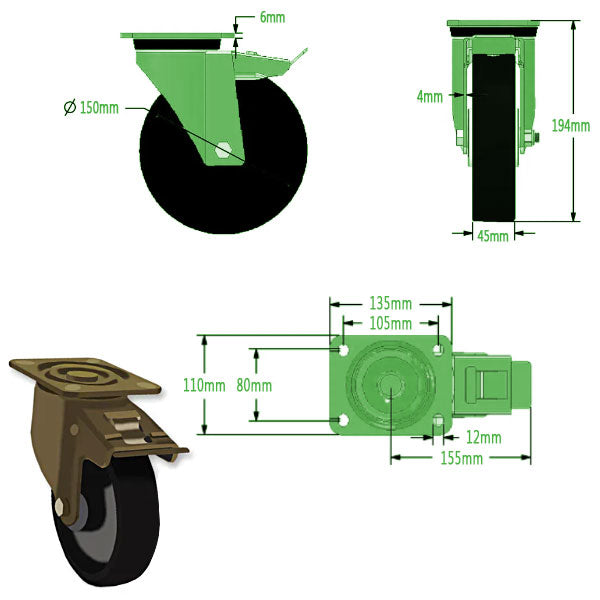

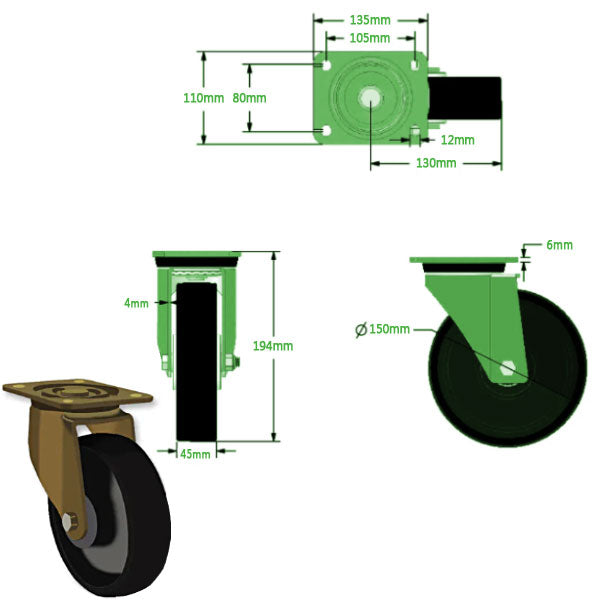

• Swivel and Braking Mechanism: The swivel castor has a swivel radius of 130mm, offering agile maneuverability. The total stop swivel/brake castor has a swivel radius of 155mm when the brake is engaged, ensuring stable positioning.

• Load Capacity: 400KG

Additional Features:

• Pressed Steel Bracket: Extra heavy-duty pressed steel bracket with swivel ball bearings ensures durability and stability.

• Corrosion Resistance: The bracket is finished in BZP (Bright Zinc Plating), providing corrosion resistance and longevity, even in harsh industrial environments.

Applications:

These castors are ideal for various heavy-duty industrial applications, including:

• Material handling equipment
• Machinery and workstations
• Heavy industrial carts and trolleys
• Manufacturing equipment

Durability and Performance:

Constructed from high-quality materials, these castors are built to withstand heavy industrial use, ensuring durability, stability, and long-lasting performance.

Enhance Mobility and Efficiency:

Upgrade your heavy-duty industrial equipment or facility with these 150mm Extra Heavy Pressed Steel Castors to enhance mobility, efficiency, and safety. The Cast Iron Wheels with Sealed Ball Bearings provide smooth operation and reliable traction, even under the heaviest loads.

Installation and Compatibility:

With a fixing plate size designed for easy installation and compatibility with various equipment frames and bases, these castors offer a versatile solution for enhancing mobility in heavy industrial applications.

Conclusion:

Experience the durability and reliability of our 150mm Extra Heavy Pressed Steel Swivel, Fixed, and Total Stop Swivel/Brake Castors with Cast Iron Wheels. Whether you're maneuvering heavy machinery or transporting materials in heavy industrial settings, these castors provide the reliability and performance required for efficient operation.

Lead Time 3 To 5 Working Days
Note: Price is for 1 castor wheel only and not for a pair
