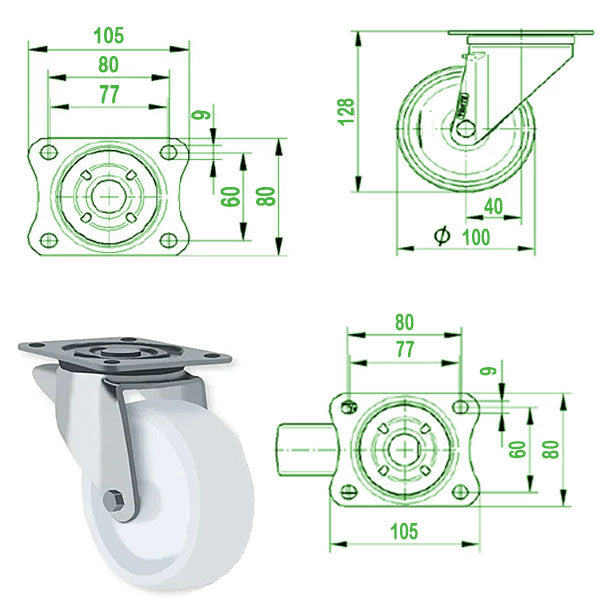

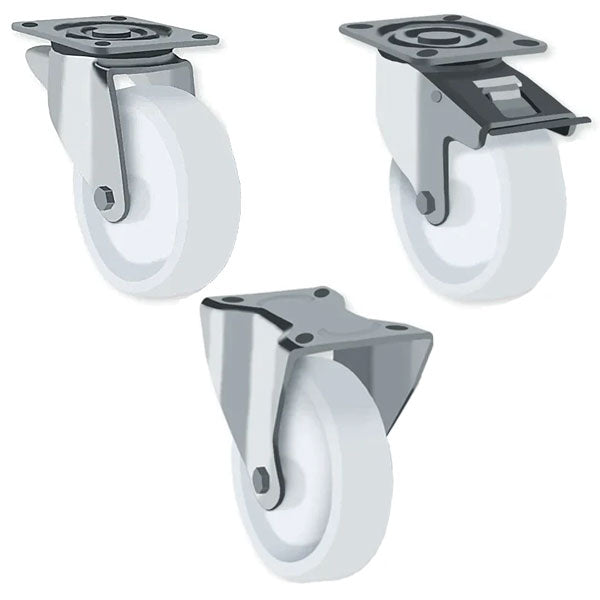

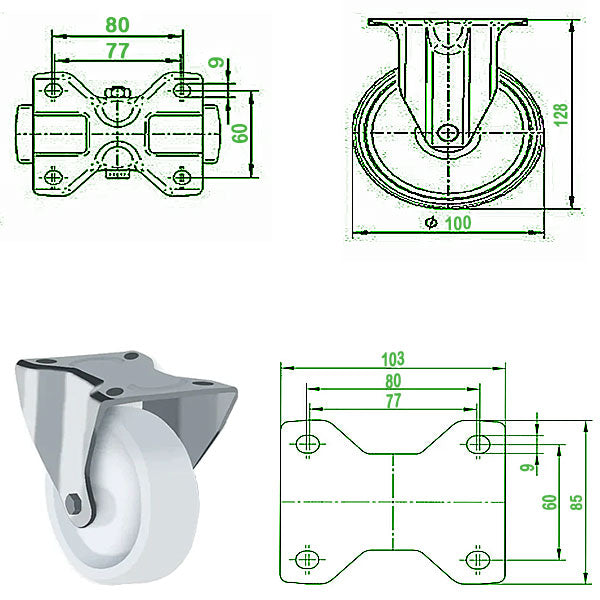

100mm Stainless Steel Swivel, Fixed & Total Stop Braked Castor with Nylon Wheel
- Overall Height: The total height of the castor is 128mm.
- Wheel Size: The diameter of the wheel is 100mm.
- Tread Width: The width of the wheel's tread (the part that makes contact with the ground) is 34mm.
- Wheel Type: The wheel is made of White Nylon and has Plain Bearings.
- Load Rating: It can support a maximum load of 200kg.
- Fixing Plate Size: The plate used for fixing the castor to a surface measures 105 x 85mm.
- Bolting Centre: The distance between the centers of the bolt holes on the fixing plate is 80 x 60mm.
- Bolt Size: The diameter of the bolts used for fixing is 9mm.

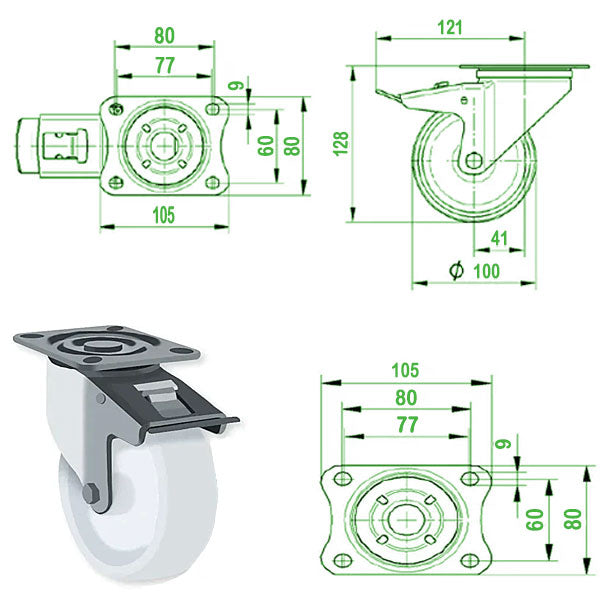

- Swivel Radius: For the swivel castor (non-braked), the swivel radius is 91mm, meaning it can rotate within a circle of that radius. For the braked castor, the swivel radius is 121mm, likely indicating a larger housing to accommodate the braking mechanism.
Overall, this castor is designed for durability and ease of movement, with the ability to swivel freely and with brakes to stop when needed.
Price is for 1 castor wheel only and not for a pair
