Description

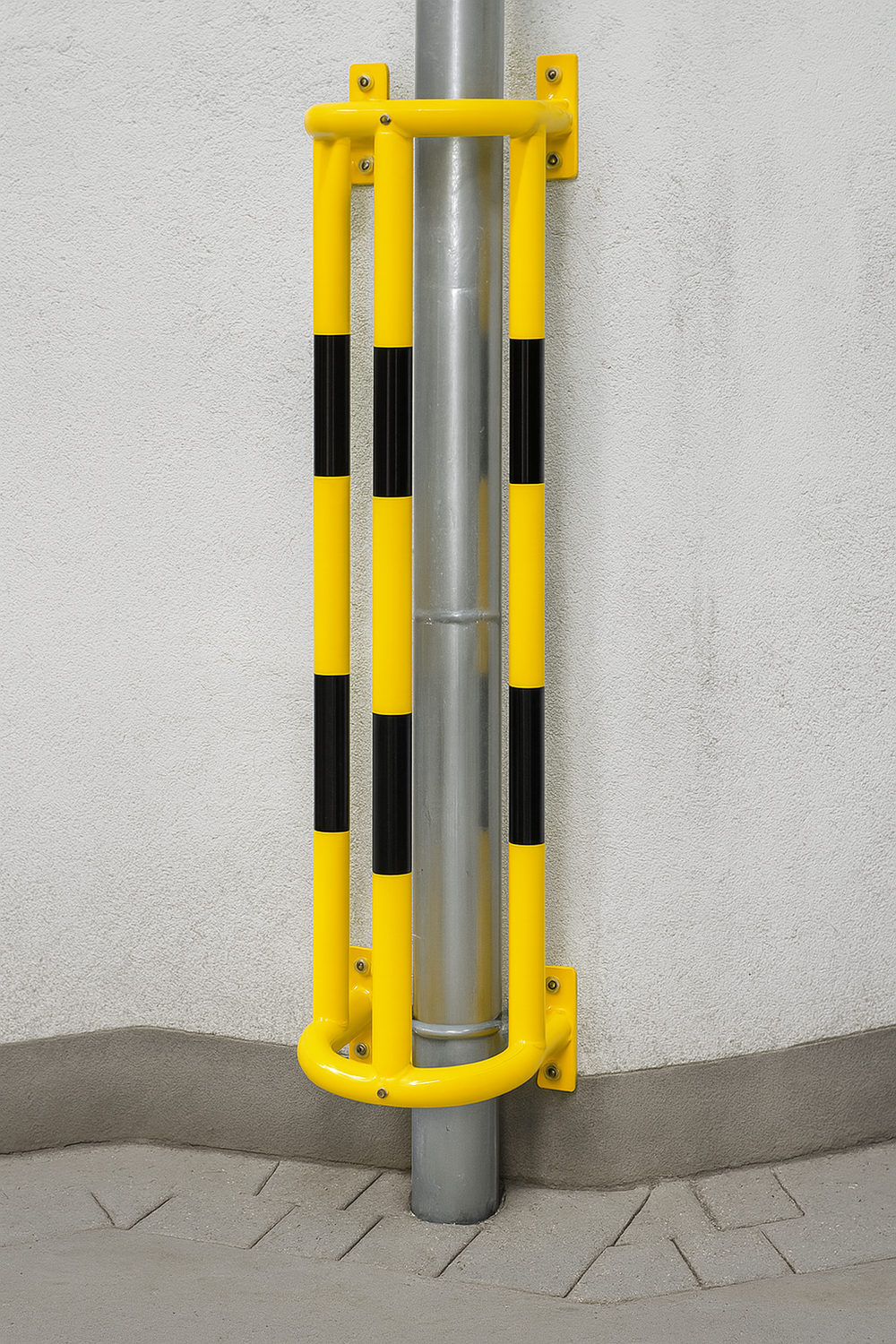

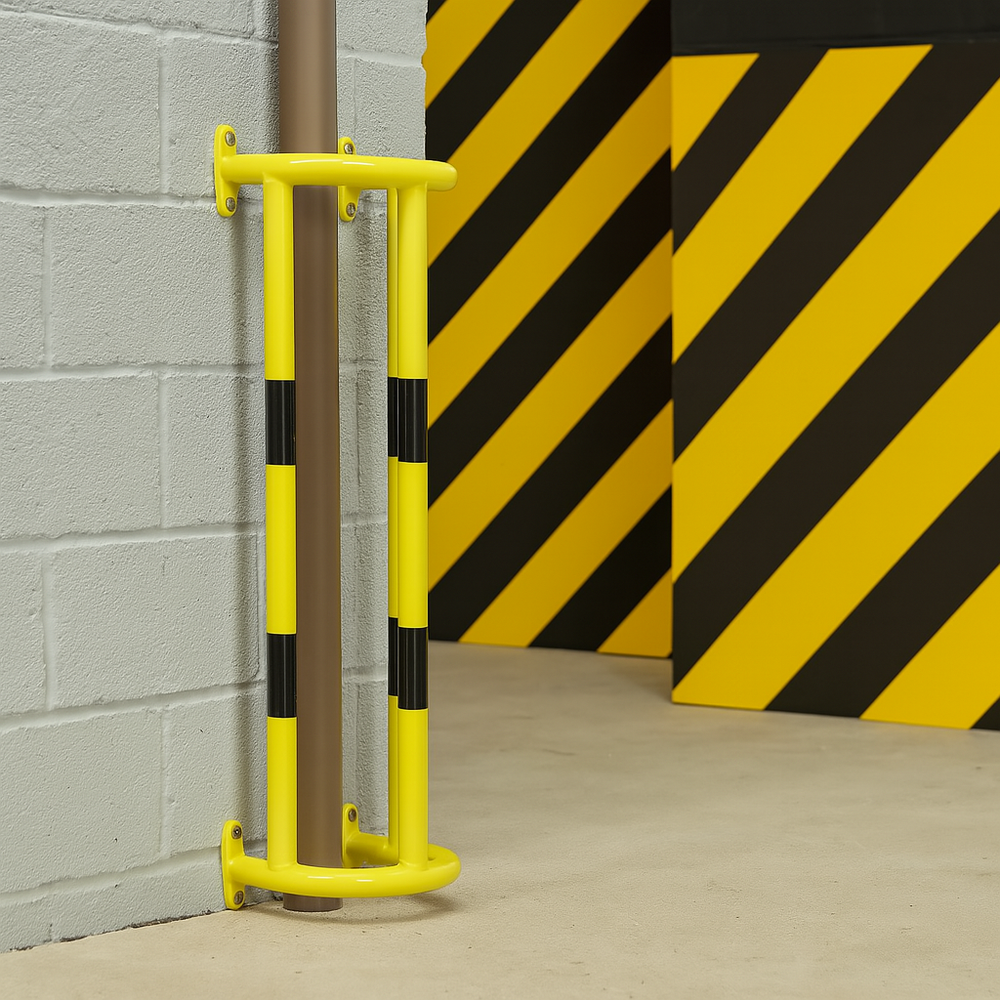

Protect your facility’s vulnerable pipes, columns, and exposed infrastructure from vehicle or equipment collision with this Heavy-Duty Wall-Mounted Column & Pipe Protector. Designed for harsh industrial use, it mounts directly to walls or columns and offers a robust shield against damage in loading bays, aisles, garages, factories, and more.
Key Features & Benefits

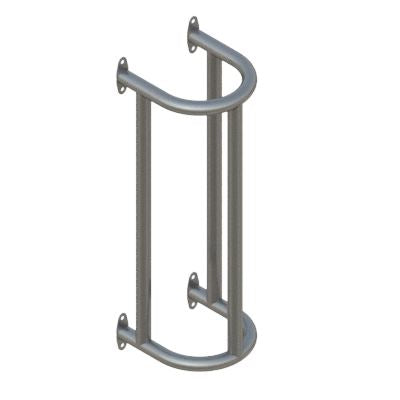

- Robust Steel Construction — Fully welded using galvanised mild steel for strength and corrosion resistance.
- Impact Protection — Shields exposed pipes, conduits, columns, and structural supports from collisions with forklifts, carts or vehicles.
- Wall-Mounted Design — Secures flush against wall or column, keeping floor clear and offering tight protection.

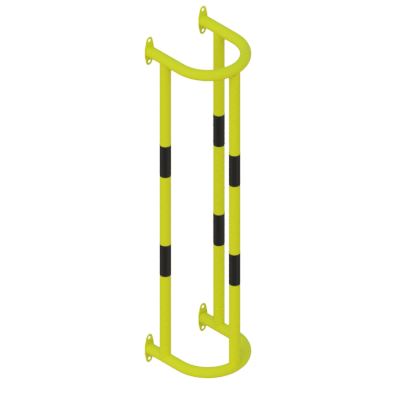

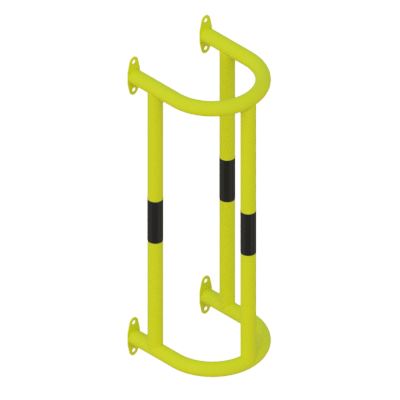

- Multiple Finishes / High Visibility Options — Standard galvanised, or galvanised + powder coated; also available in yellow with black hazard bands for improved safety awareness.
- Custom Sizes / Pipe Fitments — Designed to protect pipes and columns up to certain diameters (e.g. up to 250 mm). Indoor & Outdoor Use — Suitable for both internal and external environments.
- Easy Installation — Comes with pre-drilled fixing plates for bolting to masonry or concrete walls.

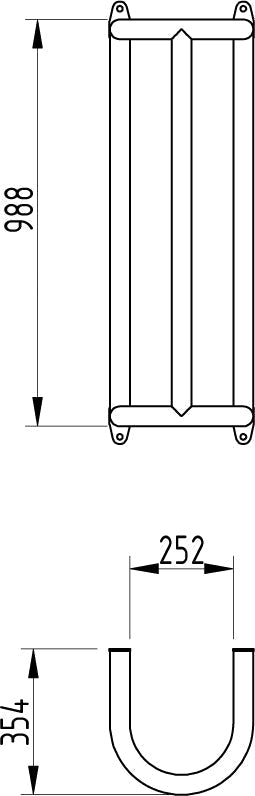

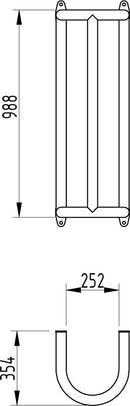

Specifications
| Parameter | Typical Value / Range |
|---|---|

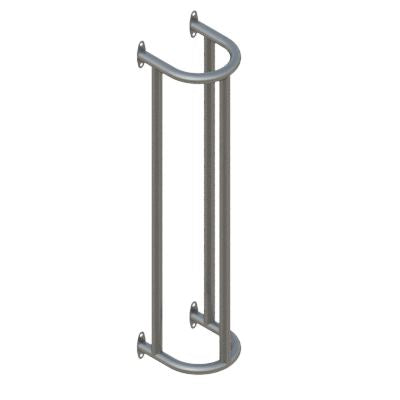

| Height / Length | ~ 1,000 mm (some variants up to 1,500 mm) |
| Tube / Pipe Diameter Fit | Up to ~ 48 mm tube / internal clearance ~ 252 mm (for larger pipe) |
| External Width (Wrap) | ~ 350 mm external width for wrap around protection |
| Mount Depth / Embedment | 300 mm (below ground / base depth) optional for flush wrap design |
| Finish Options | Galvanised, galvanised + coating, yellow/black hazard banding |
| Mounting Style | Bolt-down to wall or embedment in concrete backing |
Use Cases & Applications
- Protection of exposed plumbing or conduit runs near vehicle paths
- Safeguarding vertical pipes and risers adjacent to warehouse traffic aisles
- Shielding structural columns / pillars from accidental fork-truck collisions
- Industrial and garage environments: loading docks, vehicle bays, service alleys
- Exterior walls where pipes run vulnerable to impact
- Tight corridors where floor-based bollards might obstruct movement
Installation Guide
- Measure & fit — ensure the protector’s internal clearance fits the pipe or column size.
- Mark fixing locations — use pre-drilled mounting plates to align on wall or column.
- Drill & anchor — use masonry anchors or heavy-duty bolts into concrete or brickwork.
- Align protector — slide over or wrap around the pipe/column area.
- Secure tightly — bolt firmly, ensuring flush alignment and no gaps.
- Optional finishing — apply hazard paint / reflective tape for visual safety.
- Inspect regularly — check for damage or loosening, re-tighten or repair as needed.
