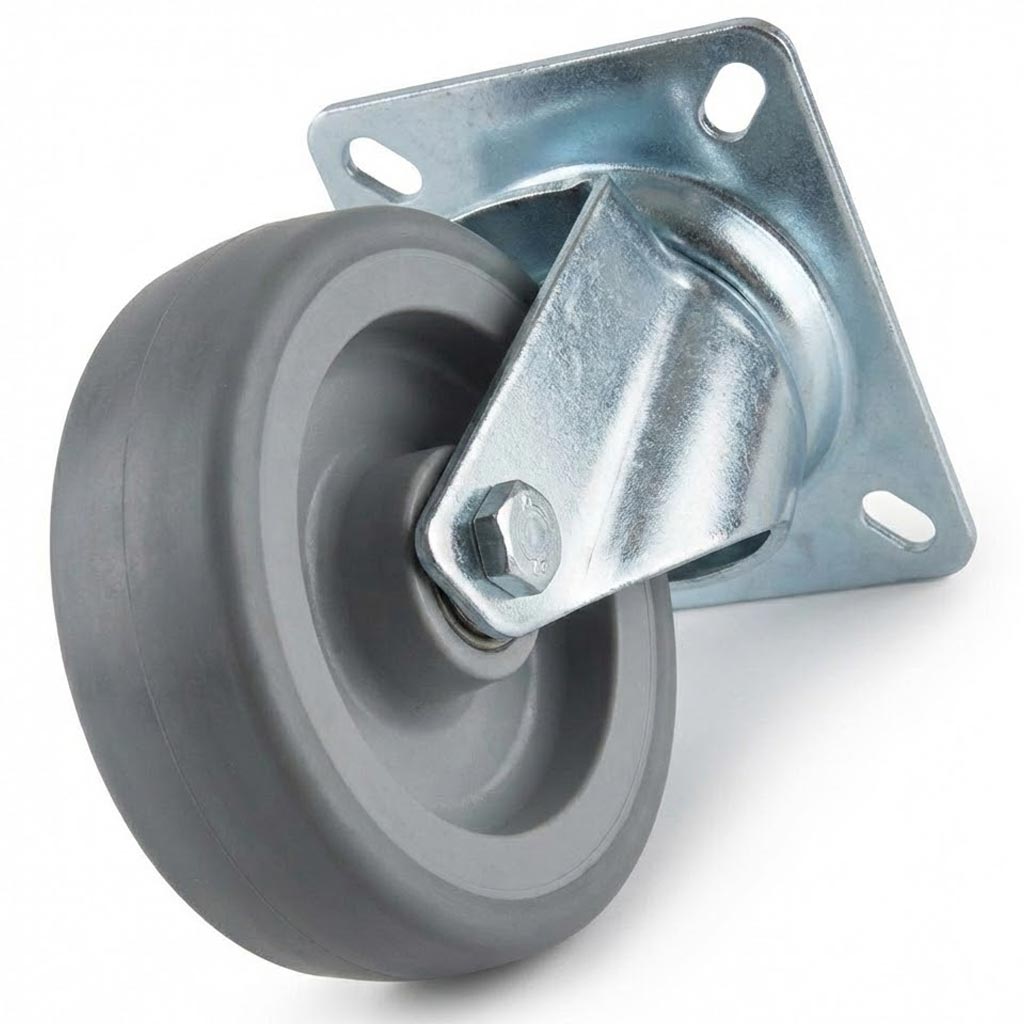

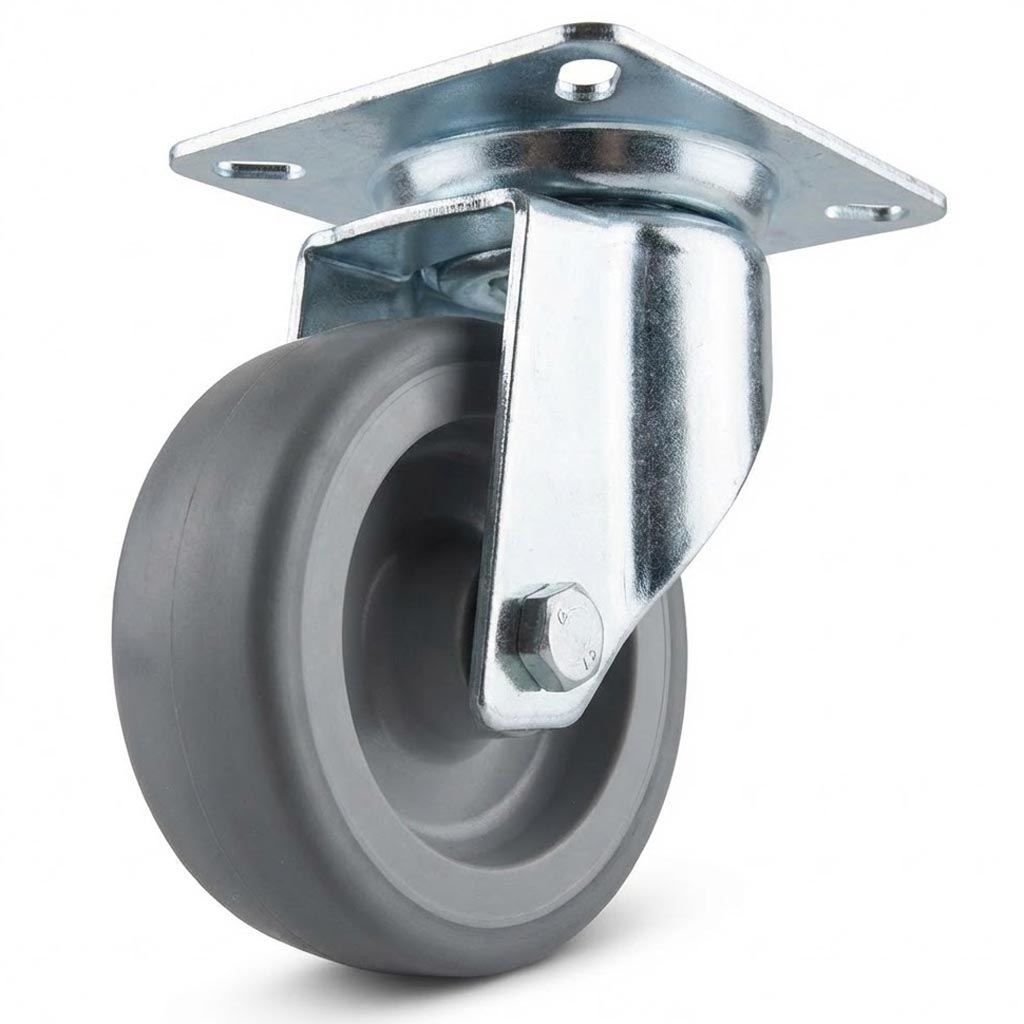

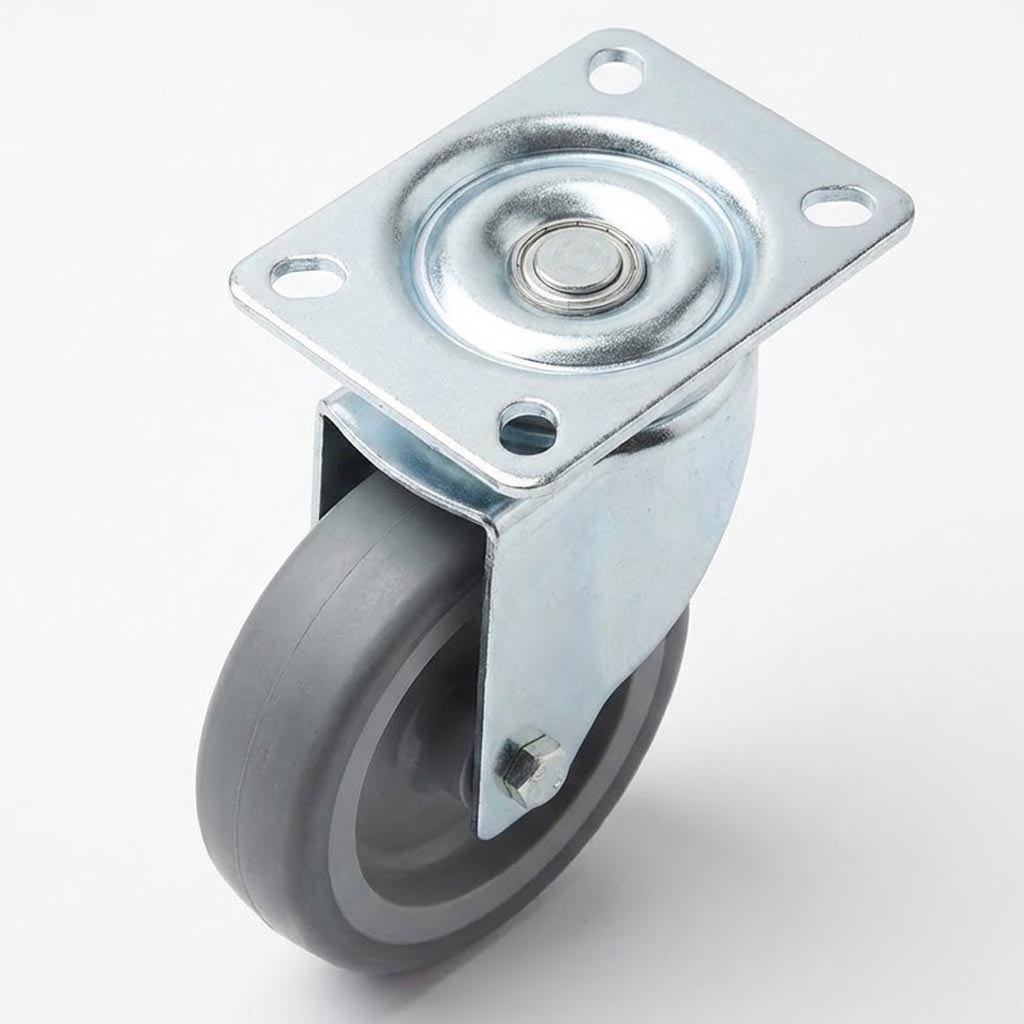

100mm Zinc Plated Swivel Retail Castor Wheel

Premium grey rubber castor with 4-hole top plate mounting - engineered for smooth mobility and floor protection in retail and commercial environments

Product Overview

This 100mm swivel castor combines robust zinc-plated construction with a soft grey rubber wheel, delivering exceptional manoeuvrability for retail displays, furniture, and light commercial equipment. The thermoplastic rubber tread ensures quiet, non-marking operation while protecting delicate flooring surfaces.

Designed for versatility, this castor features a 4-hole top plate mounting system with plain bearing construction, making it ideal for trolleys, display units, mobile shelving, point-of-sale fixtures, and lightweight industrial applications where smooth rolling performance and floor safety are essential.

Technical Specifications

Castor Type	Swivel with Top Plate Mounting
Bearing Type	Plain Bearing
Load Capacity Per Castor	80 kg
Total Load Capacity (4 Castors)	240 kg
Wheel Diameter	100 mm
Wheel Tread Width	30 mm
Wheel Material	Thermoplastic Rubber on Polypropylene Core
Wheel Colour	Grey
Tread Hardness	88 Shore A
Total Castor Height	134 mm
Swivel Radius	92 mm
Top Plate Length	95 mm
Top Plate Width	70 mm
Plate Hole Configuration	4-Hole Pattern
Plate Hole Centres (Length)	70 mm / 76 mm
Plate Hole Centres (Width)	50 mm / 44.4 mm
Plate Hole Diameter	8 mm

Key Features & Benefits

? 360-Degree Swivel Action: Full rotation capability for effortless manoeuvrability in tight spaces and around corners
? Non-Marking Grey Rubber Wheel: Protects vinyl, laminate, tile, and hardwood floors from scuffs and damage
? Quiet Operation: Soft rubber tread minimises noise during movement, ideal for customer-facing environments
? Zinc Plated Finish: Corrosion-resistant coating ensures long-lasting durability and professional appearance
? Easy Installation: Standard 4-hole top plate design fits most equipment with pre-drilled mounting points
? Versatile Load Capacity: Supports up to 80kg per castor, suitable for a wide range of retail and commercial applications
? Smooth Rolling Performance: Plain bearing construction provides reliable movement for everyday use

Ideal Applications

Retail Environments

Display units, clothing rails, mobile shelving, point-of-sale fixtures, promotional stands

Commercial Furniture

Office chairs, mobile desks, storage cabinets, filing systems, presentation boards

Light Industrial

Service trolleys, tool carts, equipment stands, mobile workstations, utility carts

Hospitality & Catering

Room service trolleys, cleaning carts, linen trolleys, beverage stations, mobile serving units

Installation Guidelines

Mounting Requirements: Ensure mounting surface is flat, clean, and structurally sound. Use appropriate fixings (bolts, screws, or rivets) that match the 8mm hole diameter. Distribute load evenly across all four mounting holes for optimal stability.

Load Distribution: For maximum performance and longevity, position castors at corners or load-bearing points of your equipment. Avoid exceeding the 80kg per castor capacity to maintain safe operation.

Frequently Asked Questions

What surfaces are these castors suitable for?

These grey rubber castors are designed for smooth indoor surfaces including vinyl, laminate, tile, concrete, and hardwood flooring. The soft rubber tread prevents marking and provides excellent floor protection, making them ideal for retail showrooms, offices, and commercial spaces where floor preservation is important.

How much weight can these castors support?

Each castor has a load capacity of 80kg. When using four castors together (standard configuration), the total load capacity is 240kg. Always ensure the weight is evenly distributed across all castors and never exceed the maximum capacity for safe operation.

What fixings do I need to install these castors?

The top plate features four 8mm diameter holes. You'll need M8 bolts, screws, or rivets depending on your mounting surface. For wood, use wood screws; for metal frames, use bolts with washers and nuts. Ensure fixings are appropriate for the load and material being mounted.

Are these castors suitable for outdoor use?

These castors are primarily designed for indoor applications. While the zinc plating provides some corrosion resistance, prolonged exposure to moisture, UV light, and extreme temperatures may reduce their lifespan. For outdoor use, consider heavy-duty or weather-resistant castor options.

Do these castors swivel 360 degrees?

Yes, these are full swivel castors that rotate 360 degrees, providing excellent manoeuvrability. The 92mm swivel radius allows for smooth directional changes, making them perfect for equipment that needs to navigate tight spaces or change direction frequently.

Will these castors damage my floors?

No, the soft grey rubber wheel is specifically designed to be non-marking and floor-safe. The 88 Shore A tread hardness provides the right balance between durability and floor protection, preventing scuffs, scratches, and marks on delicate surfaces like polished floors, vinyl, and laminate.

How tall will my equipment sit with these castors fitted?

The total height of each castor is 134mm from the base of the wheel to the top of the mounting plate. This measurement should be added to your equipment's base height to calculate the final overall height once the castors are installed.

Are these castors noisy when rolling?

No, the thermoplastic rubber wheel provides exceptionally quiet operation. This makes them ideal for noise-sensitive environments such as retail stores, offices, libraries, hospitals, and hospitality settings where customer experience and minimal disruption are priorities.

Premium Quality Castor Solution
Engineered for reliability, designed for performance, built to protect your floors and enhance mobility in professional environments.
