L-Shaped Rubber Dock Bumper 440 x 440 x 95mm – Corner Loading Bay Impact Protection

Corner-mounted dock bumpers present a unique protection challenge — standard rectangular bumpers can't fully protect the most vulnerable structural point of your loading bay door frame. The 440 x 440 x 95mm L-Shaped Rubber Dock Bumper is engineered specifically for corner protection, with two perpendicular faces that simultaneously protect both the front face and side return of dock door openings. Built from high-quality natural/SBR rubber with a rigid back plate, this L-shaped profile delivers complete corner protection where standard flat-face bumpers simply cannot reach — making it an essential component for comprehensive HGV loading bay protection systems.

Why L-Shaped Bumpers Are Essential for Complete Loading Bay Protection

The corners of loading bay door openings are the most structurally vulnerable point in any dock installation. When an HGV trailer swings wide or approaches at a slight angle, it is the corner of the trailer that makes first contact — directly with the corner of your dock door frame if standard bumpers are not positioned correctly. Even a well-designed pair of flat-face bumpers leaves corners exposed to angular trailer contact. The L-shaped design solves this permanently, with both a 440mm face protecting the dock front and a 440mm return face protecting the side elevation simultaneously. The 95mm rubber projection absorbs the energy of corner impacts before they can damage brickwork, steel frames, or door rollers.

Key Benefits

• L-Shaped Dual-Face Design — Simultaneously protects dock front face and side return face at corners; provides protection that no flat-face bumper can replicate
• 440 x 440mm Corner Coverage — Equal-length faces provide symmetrical protection across both the front and side elevation of dock door corners
• 95mm Rubber Projection — Absorbs angular impact energy from trailer corners approaching at an angle; prevents structural damage to brickwork and steel frame components
• Natural/SBR Rubber Compound — UV-resistant and oil-resistant; maintains consistent elasticity and energy absorption properties through years of heavy-duty service
• Rigid Back Plate — Provides stable mounting surface and even load distribution across both faces simultaneously during corner impact events
• Completes Any Dock Protection System — Used alongside flat-face dock bumpers to create a fully comprehensive dock door protection specification
• Pre-Drilled Fixing Points — Ready for M20 anchor bolt installation on concrete or masonry dock face corners

Technical Specifications

Ideal Applications & Use Cases

• All Loading Bay Dock Doors — Every dock door that receives HGV traffic benefits from L-shaped corner bumpers at all four corners of the opening, used in conjunction with flat-face bumpers on each side
• New Dock Installations — The correct specification for new-build loading bay protection systems includes both flat-face and L-shaped corner bumpers as a complete protection package
• Docks Experiencing Corner Damage — If your dock door frame corners are showing wear, cracking, or impact damage, L-shaped bumpers are the immediate solution to prevent further structural deterioration
• High-Traffic Distribution Centre Docks — High docking frequency increases the probability of angular trailer approach; corner bumpers protect against the inevitable variation in driver approach angles
• Tight-Access Dock Environments — Where yard space is limited and HGV drivers must manoeuvre in restricted areas, angular trailer contacts are more frequent; corner bumpers are essential in these facilities
• Older Dock Facilities — Heritage buildings and older warehouse facilities often have exposed brick or concrete dock face corners that are particularly vulnerable to damage from modern heavy HGV trailers

Installation Guide

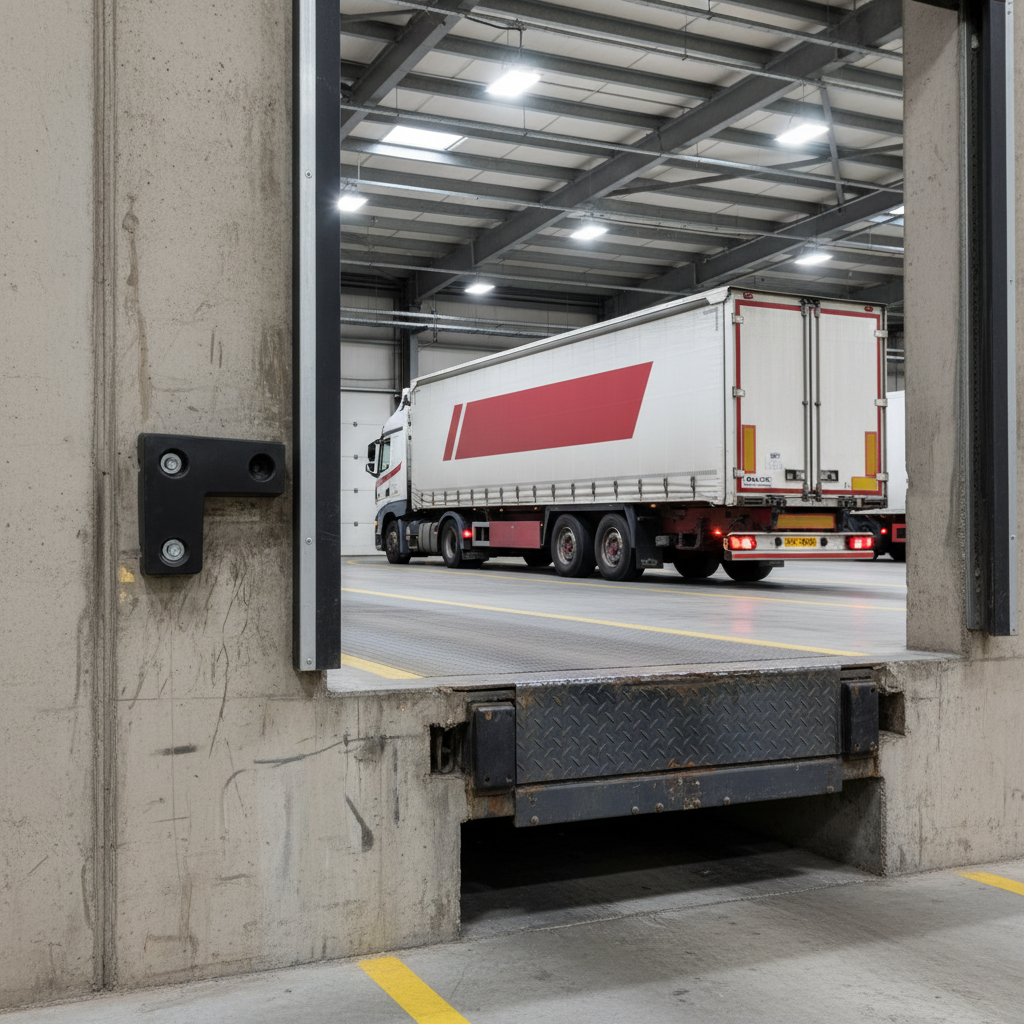

L-shaped corner bumpers are installed at the corners of dock door openings, positioned to cover the transition between the front face and side face of the dock structure. Begin by measuring and marking the intended installation position, ensuring the bumper sits squarely at the corner with both faces making full contact with the dock structure. The inner corner of the L-profile should sit precisely at the structural corner of your dock opening. Mark anchor hole positions on both faces of the dock using the back plate as a template. Drill anchor holes on both the front face and side face at the required depth for M20 anchor bolts. Install and torque all anchor bolts before final position confirmation. For a complete dock protection specification, install flat-face bumpers on each side of the door opening and L-shaped bumpers at all four corners. Inspect fixing torque periodically and after any known heavy impact events.

Frequently Asked Questions

Do I need L-shaped bumpers if I already have flat-face bumpers? Yes. Flat-face bumpers protect the front face of the dock but do not cover the corners. Angular trailer contact — which happens regularly in real-world docking operations — will find the unprotected corners even if flat-face bumpers are correctly installed. L-shaped bumpers complete the protection system.

How many L-shaped bumpers do I need per dock door? A complete dock door protection system typically requires four L-shaped corner bumpers (one at each corner of the door opening) plus two flat-face bumpers on each side. However, lower corner positions are the most critical for HGV impact protection and should be prioritised if budget constrains a phased installation.

Can L-shaped bumpers be used on their own without flat-face bumpers? While L-shaped bumpers protect corners, flat-face bumpers protect the central area of the dock front face. Both are needed for a complete protection specification. Using L-shaped bumpers only would leave the central dock face unprotected.
