Description
Heavy-Duty Grass Reinforcement Mesh – Professional Car Park & Lawn Protection
Premium grass reinforcement mesh engineered for UK conditions. Protects grass surfaces from rutting, erosion, and compaction while maintaining natural appearance. Supports vehicles up to 2.5 tonnes with UV-stabilised HDPE construction guaranteed for 10+ years.
Stop Wheels Turning Your Grass Into Ruts and Mud
If cars keep cutting up a verge, an overflow car park or a lawn, you do not always need gravel or tarmac. This 4mm mesh is pinned straight onto the grass with no digging. The grass grows up through it and the roots lock around the strands, so the turf stays green while the ground takes wheels and feet far better than bare grass.

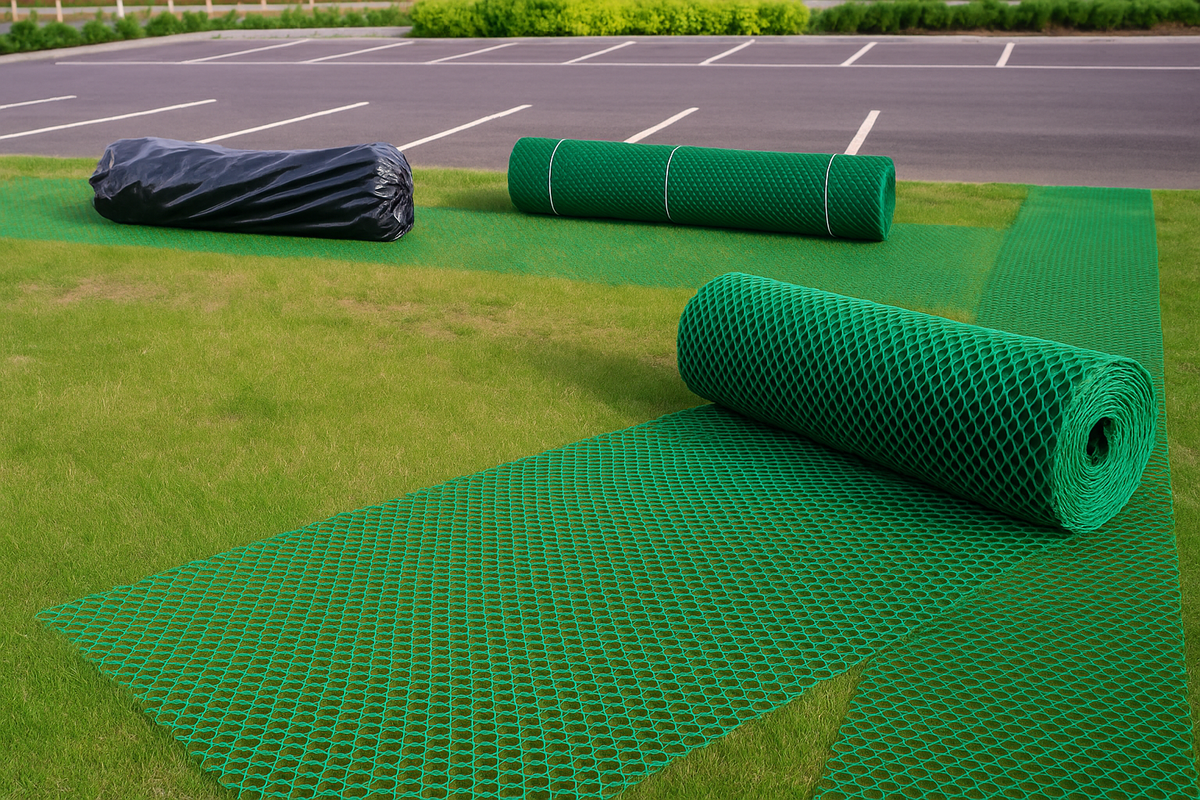

Choose a 2m x 30m roll covering 60m² for site work, or a 1m x 10m roll covering 10m² for a path or a small parking spot. The steel U-pins that fix it down are on the same page.
Professional Performance Features
- 2.5 Tonne Load Capacity: Supports cars, vans, golf buggies, and light commercial vehicles without rutting or soil compaction – ideal for overflow car parks and event spaces
- UV-Stabilised HDPE Construction: High-density polyethylene won't degrade in British weather – guaranteed for 10+ years of outdoor use without brittleness or breakdown
- Natural Grass Integration: 25mm x 25mm grid allows grass roots to intertwine naturally, creating stable, load-bearing surface that looks great year-round
- Prevents Rutting & Erosion: Distributes vehicle weight evenly across soil structure – eliminates muddy ruts, wheel tracks, and erosion even after heavy rainfall
- Easy Installation: Lightweight roll format installs quickly without specialist equipment – one person can lay 60m² in under 2 hours
- Maintains Drainage: Open mesh structure allows natural water drainage and air circulation – grass remains healthy without waterlogging
- Mower-Friendly Design: Sits just below grass height once established – mow as normal without damage to equipment or mesh
Technical Specification
| Property | Specification |
|---|---|
| Material | High-Density Polyethylene (HDPE) – UV stabilised |
| Roll Dimensions | 2m wide x 30m long |
| Coverage Area | 60 m² per roll |
| Mesh Aperture | 25mm x 25mm (square grid) |
| Thickness | 4mm |
| Weight | 650 g/m² (39kg per roll) |
| Load Capacity | 2.5 tonnes per metre |
| Colour Options | Green or Black |
| UV Resistance | 10+ year warranty against UV degradation |
| Temperature Range | -40°C to +80°C |
| Drainage | 100% permeable – maintains natural drainage |
| Installation | U-pins every 500mm (100 pins recommended per roll) |
Choosing the Right Option
| Option | Covers | Colours | Best for |
|---|---|---|---|
| 2m x 30m roll | 60 m² | Green or Black | Car parks, event parking, verges and larger areas |
| 1m x 10m roll | 10 m² | Green | Narrow paths, small parking spots and repairs |
| Steel U-pins | Pack of 100 | Steel | Fixing either roll to the ground |
Which roll? The 2m x 30m roll works out at much less per square metre, so keep the 1m x 10m for narrow paths and small patches. At 650 g/m², a 1m x 10m roll weighs about 6.5kg.
How many U-pins? One pack of 100 is the minimum for each 2m x 30m roll, with 50% more for slopes or high-traffic areas. One pack is plenty for a 1m x 10m roll. Pins are chosen as a separate selection from the same options above.
Professional Installation Guide
- Ground Preparation: Remove debris, stones, and sharp objects. Level surface using rake or levelling board. Fill any depressions or holes with topsoil. Ensure good drainage – standing water will prevent grass growth.
- Soil Condition: Ideal installation on established grass or freshly seeded area. Soil should be firm but not compacted. If installing on bare soil, seed or turf after mesh installation.
- Roll Out Mesh: Unroll mesh across prepared area. For multiple rolls, overlap edges by 50-100mm to prevent gaps. Ensure mesh lies flat without wrinkles or folds.
- Secure with U-Pins: Insert U-pins every 500mm along edges and joins. Use 100 pins per 60m² roll minimum. On slopes or high-traffic areas, increase pin density to every 300mm.
- Grass Establishment: If installing over existing grass, allow 4-6 weeks for roots to grow through mesh before heavy use. If seeding, apply grass seed at 35-50g/m², water regularly, and allow 8-10 weeks establishment before vehicle traffic.
- Top Dressing (Optional): Apply 10-15mm layer of sandy loam topsoil over mesh to accelerate grass growth and improve appearance. Brush into mesh apertures.
- Initial Maintenance: Keep area well-watered during establishment period. Mow when grass reaches 75-100mm height. Avoid heavy traffic until grass is fully established through mesh.
Typical Applications
- Overflow car parks and temporary parking areas
- Golf course buggy paths and maintenance access routes
- Grass verges and roadside protection
- Garden paths and wheelchair accessible routes
- Event spaces and festival parking areas
- Caravan sites and camping ground access
- School playing fields and sports facility access
- Emergency vehicle access routes (fire lanes)
- Equestrian facilities and stable yard access
- Allotment and community garden pathways
- Cemetery and memorial garden access
- Park and recreation area vehicle access
Coverage & Roll Size Guide
| Area Size | Rolls Required | U-Pins Required |
|---|---|---|
| 60 m² (single parking bay) | 1 roll (2m x 30m) | 100 pins (1 pack) |
| 120 m² (double parking bay) | 2 rolls | 200 pins (2 packs) |
| 180 m² (triple parking bay) | 3 rolls | 300 pins (3 packs) |
| 300 m² (small car park) | 5 rolls | 500 pins (5 packs) |
Add 10% extra for overlaps and wastage. U-pins sold separately in packs of 100. For slopes or high-traffic areas, increase pin quantity by 50%.
Performance & Durability
Load Distribution: 25mm x 25mm grid distributes vehicle weight across 625mm² per aperture, preventing point-load soil compaction and rutting.
UV Resistance: UV-stabilised HDPE formulation tested to 10+ years outdoor exposure without brittleness, cracking, or degradation per ISO 4892 accelerated weathering.
Frost Resistance: Maintains flexibility and strength from -40°C to +80°C – no brittleness in winter, no softening in summer.
Root Integration: Grass roots intertwine through mesh within 4-6 weeks, creating composite structure with 300%+ increased load-bearing capacity vs unprotected grass.
Drainage Performance: 100% permeable structure maintains natural drainage rates – prevents waterlogging and surface water pooling.
Maintenance & Longevity
Mowing: Mow as normal once grass is established. Mesh sits 5-10mm below grass height and won't damage mower blades. Rotary or cylinder mowers both suitable.
Fertilising: Apply standard lawn fertiliser as normal. Mesh doesn't inhibit nutrient uptake. Water-soluble fertilisers wash through mesh to roots.
Weed Control: Apply selective herbicides as normal. Mesh is chemically inert and won't be damaged by lawn treatments.
Aeration: Hollow-tine aeration can be performed through mesh. Avoid solid-tine aeration which may damage mesh structure.
Expected Lifespan: 10-15 years in typical car park or pathway use. 15-20 years in light-traffic applications. UV warranty covers 10 years minimum.
Repairs: Damaged sections can be cut out and replaced. Overlap new mesh by 100mm and secure with additional U-pins.
Why Choose Our Grass Reinforcement Mesh?
- UK-Proven Performance: Over 50,000m² installed across UK car parks, golf courses, and event spaces with zero rutting reported
- Premium HDPE Material: Unlike cheaper polypropylene alternatives, our HDPE mesh maintains strength and flexibility for 10+ years
- Optimal Grid Size: 25mm aperture is ideal for UK grass species – smaller grids restrict growth, larger grids reduce load distribution
- Professional Thickness: 4mm thickness (650g/m²) provides strength without excessive weight – lighter meshes fail under traffic
- Easy Handling: 39kg roll weight allows one-person installation – heavier rolls require machinery
- Cost-Effective Solution: Professional results at competitive pricing compared to plastic grid systems or concrete/paving alternatives
Environmental Benefits
Sustainable Drainage: Maintains natural water infiltration and drainage – reduces surface water runoff and flooding risk compared to impermeable surfaces.
Carbon Sequestration: Protected grass continues photosynthesis and carbon capture – 60m² of grass sequesters approximately 30kg CO₂ annually.
Biodiversity Support: Grass surface supports insects, worms, and soil microorganisms – unlike concrete or tarmac which create ecological dead zones.
Heat Island Reduction: Grass surface remains 10-15°C cooler than tarmac in summer – reduces urban heat island effect.
Recyclable Material: HDPE is fully recyclable at end of life – can be reprocessed into new plastic products.
Delivery
UK Stock: Held in UK warehouse for fast dispatch. Most orders ship within 1-2 working days.
Express Delivery: Express UK mainland delivery on all orders. Rolls delivered on pallet for easy handling.
Bulk Discounts: Volume pricing available for projects over 500m². Contact for quotation.
Technical Support & Project Assistance
Our groundwork specialists provide free technical support:
- Site assessment and coverage calculations
- Soil condition evaluation and preparation advice
- Installation guidance and troubleshooting
- Grass species recommendations for your climate
- Drainage and slope management advice
- Bulk pricing for large car parks and event spaces (500m²+)
- Contractor recommendations for professional installation
Frequently Asked Questions
- Will this support cars and vans?
- Yes, with a 2.5 tonne load capacity per metre, the mesh easily supports cars (1.2-1.8 tonnes), vans (2-2.5 tonnes), golf buggies, and light commercial vehicles. Not suitable for HGVs or heavy plant machinery – use heavier-duty cellular systems for those applications.
- How long does it last?
- Our UV-stabilised HDPE mesh is guaranteed for 10+ years in UK weather conditions. Typical lifespan is 10-15 years in car park use, 15-20 years in pathway or light-traffic applications. Unlike cheaper polypropylene mesh which degrades in 3-5 years, our HDPE maintains strength and flexibility.
- Can I mow over it?
- Absolutely. Once grass grows through (4-6 weeks), the mesh sits 5-10mm below grass height. You can mow as normal with rotary or cylinder mowers. The mesh won't damage blades and provides a stable surface for mowing equipment.
- Do I need the U-pins?
- Yes, we strongly recommend securing with U-pins every 500mm to prevent movement, especially on slopes or in high-traffic areas. Without pins, the mesh can shift under vehicle turning forces, creating gaps and reducing effectiveness. Budget 100 pins per 60m² roll (1 pack).
- Can I install this on a slope?
- Yes, the mesh works well on slopes up to 1:3 (18°). Increase U-pin density to every 300mm on slopes to prevent downhill creep. For steeper slopes (1:3 to 1:2), consider additional anchoring or terracing. Not recommended for slopes steeper than 1:2 (27°).
- Will grass grow through the mesh?
- Yes, grass roots naturally grow through the 25mm x 25mm apertures within 4-6 weeks. The mesh actually encourages stronger root development by providing structure. For best results, install over established grass or seed immediately after installation. Keep well-watered during establishment.
- What's the difference between green and black mesh?
- Green blends naturally with grass and is virtually invisible once established – best for visible areas like car parks and paths. Black absorbs heat to accelerate grass growth in cooler months and is less visible in muddy conditions – preferred for shaded areas or winter installations. Performance is identical.
- Can I drive on it immediately after installation?
- Light vehicle traffic (cars, vans) is possible immediately if installed over established grass, but we recommend waiting 4-6 weeks for roots to grow through mesh for maximum strength. If installed on bare soil or freshly seeded area, wait 8-10 weeks for full grass establishment before vehicle traffic.
- How do I calculate how much I need?
- Measure your area in metres (length x width = m²). Each roll covers 60m². Divide your area by 60 and round up. Add 10% for overlaps and wastage. Example: 150m² car park ÷ 60 = 2.5 rolls, round up to 3 rolls + 10% = 3 rolls required. Order 1 pack of U-pins (100 pins) per roll.
- Is this suitable for wheelchair access?
- Yes, once grass is established through the mesh, it provides a firm, stable surface suitable for wheelchairs, mobility scooters, and pushchairs. The mesh prevents rutting and maintains level surface even in wet conditions. Ensure grass is kept mown to 50-75mm height for easiest access.
- Which sizes can I buy?
- The mesh comes in 2m x 30m rolls (60m²) in green or black, and 1m x 10m rolls (10m²) in green. Steel U-pins come in packs of 100 and are selected from the same options as the rolls.
- Can I cut it to fit?
- Yes. It trims with strong cutters or snips around edges and obstacles. Cut or installed mesh cannot be returned, so measure first.
